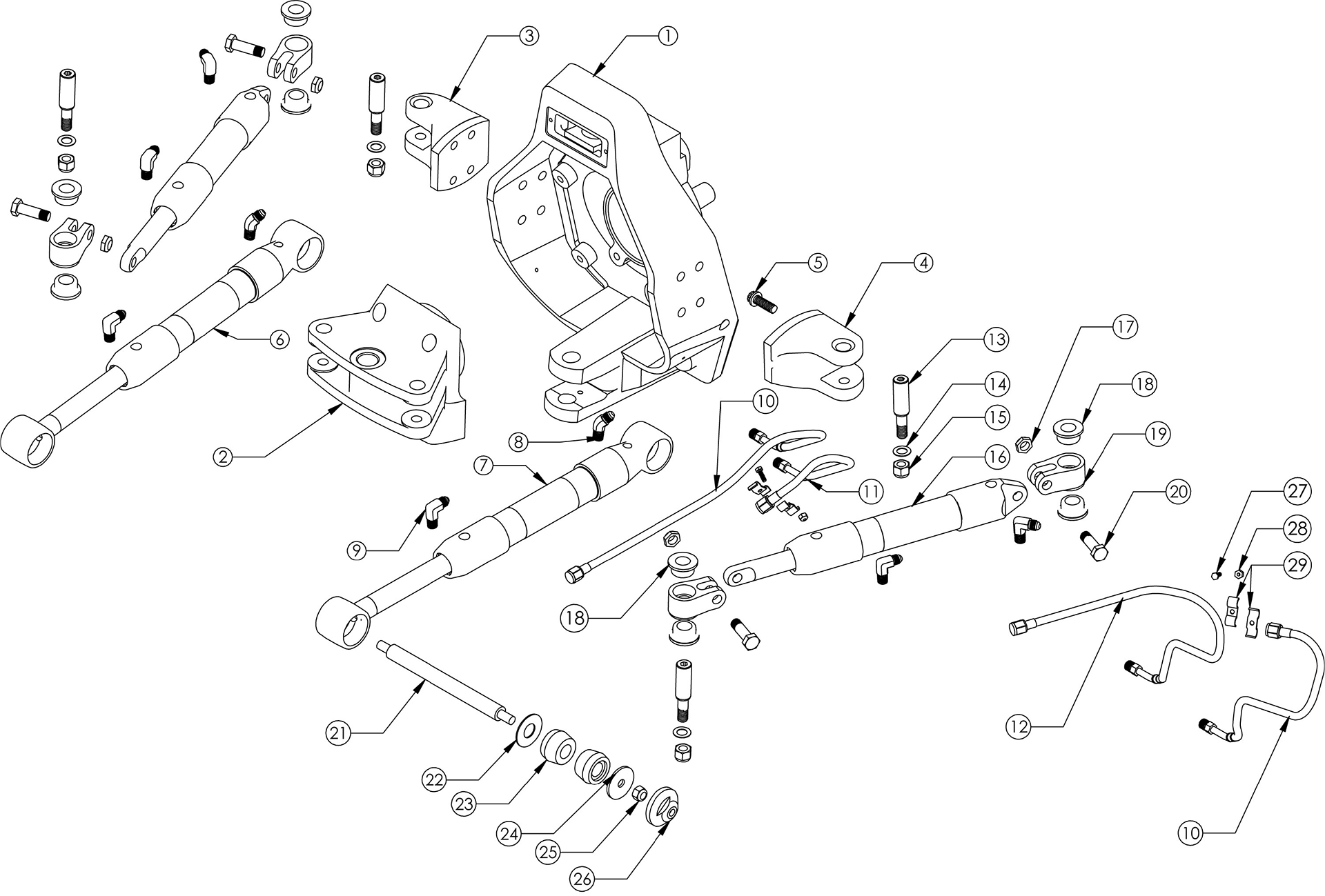

| ITEM |
DESCRIPTION |
QTY |
PART NUMBER |
| 1 |
Gimbal Housing (Black) |
1 |
05-1306 |
| 1A |
Gimbal Housing (Silver) |
1 |
05-1307 |
| 2* |
Steering Cap SC |
1 |
01-1319 |
| 2 |
Steering Cap California Black |
1 |
01-1551 |
| 2A |
Steering Cap NV Black |
1 |
01-1552 |
| 2B |
Steering Cap Generic Black |
1 |
01-1553 |
| 2C |
Steering Cap ITS Black |
1 |
01-1554 |
| 2D |
Steering Cap Tie Bar Starboard Black |
1 |
01-1555 |
| 2E |
Steering Cap Tie Bar Port Black |
1 |
01-1556 |
| 2F |
Steering Cap California Silver |
1 |
01-1558 |
| 2G |
Steering Cap NV Silver |
1 |
01-1559 |
| 2H |
Steering Cap Generic Silver |
1 |
01-1560 |
| 2I |
Steering Cap ITS Silver |
1 |
01-1561 |
| 2J |
Steering Cap Tie Bar Starboard Silver |
1 |
01-1562 |
| 2K |
Steering Cap Tie Bar Port Silver |
1 |
01-1563 |
| 3 |
Steering Bracket (Port) Black |
1 |
05-1312 |
| 3A |
Steering Bracket (Port) Silver |
1 |
05-1314 |
| 4 |
Steering Bracket (Starboard) Black |
1 |
05-1313 |
| 4A |
Steering Bracket (Starboard) Silver |
1 |
05-1315 |
| 5 |
Screw (7/16-14 x 1 1/4" 12 pt. S/S) |
8 |
08-070907091 |
| 6 |
Trim Ram (Port) |
1 |
05-6028 |
| 7 |
Trim Ram (Starboard) |
1 |
05-6029 |
| 8 |
Fitting (45° Jic -5 to 1/4" pipe S/S 316) |
2 |
09-2009 |
| 9 |
Fitting (90° Jic -5 to 1/4" pipe S/S 316) |
6 |
09-2010 |
| 10 |
-5 Hose Assembly 17 1/2" |
4 |
05-2331 |
| 11 |
-5 Hose Assembly 10 1/4" |
2 |
05-2332 |
| 12 |
-5 Hose Assembly 25 1/2" |
2 |
05-2330 |
| 13 |
3/4" x 2" Clevis Pin |
4 |
05-6434 |
| 14 |
Washer (1/2" AN S/S) |
4 |
08-101000001 |
| 15 |
Nut (1/2-13 Nylock S/S) |
4 |
08-081008001 |
| 16 |
Steering Ram |
2 |
05-6030 |
| 17 |
Nut (1/2-20 Thin Nylock S/S) |
4 |
08-091004001 |
| 18 |
Urethane Bushing |
8 |
05-2240 |
| 19 |
Clevis Joint |
4 |
05-1034 |
| 20 |
Clevis Bolt |
4 |
05-6035 |
| 21 |
Rear Anchor Pin |
1 |
05-3612 |
| 22 |
S/S Washer (Big Hole-Trim Pin) |
2 |
05-6002 |
| 23 |
Bushing (Trim Pin) |
4 |
05-2020 |
| 24 |
S/S Washer (Small Hole-Trim Pin) |
2 |
05-6004 |
| 25 |
Nut (7/16-20 Nylock S/S) |
2 |
08-080904001 |
| 26 |
Cap (Plastic Anchor Pin Cap) |
2 |
05-2021 |
| 27 |
Screw (10-24 x 5/8" HH S/S) |
4 |
08-010403051 |
| 28 |
Nut (10-24 Nylock S/S) |
4 |
08-080403001 |
| 29 |
Hose Anchor |
4 |
05-6012 |
