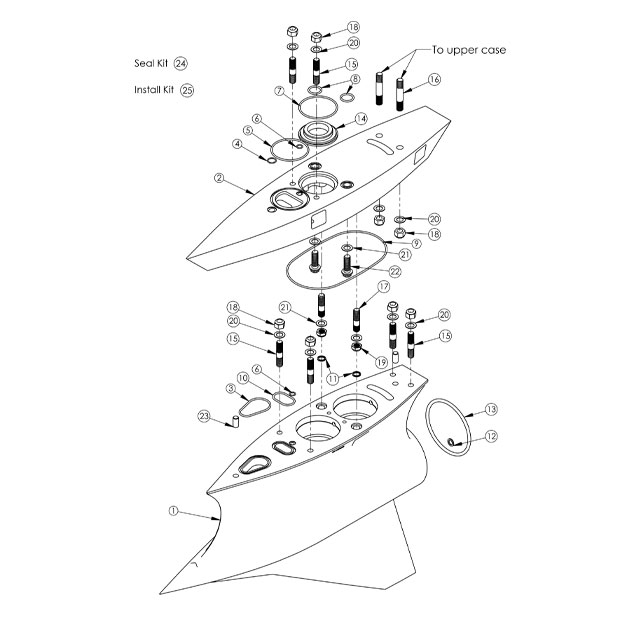

| Item |
Description |
Qty |
Part Number |
| 1 |
Dual Downshaft Lower Case |
1 |
01-1393 |
| 2 |
Dual Downshaft Spacer |
1 |
01-1715 |
| 3 |
"O" Ring (Cooling Water Passage Lower) |
1 |
11-2135 |
| 4 |
"O" Ring (Cooling Water Passage Spacer) |
1 |
11-2014 |
| 5 |
"O" Ring (Water Passage) |
1 |
11-2143 |
| 6 |
"O" Ring (PTFE Oil Passage) |
1 |
11-4011 |
| 7 |
"O" Ring (Alignment Spacer) |
1 |
11-2144 |
| 8 |
"O" Ring (Upper Stud) |
2 |
11-2401 |
| 9 |
"O" Ring (Spur Gears) |
1 |
11-2165 |
| 10 |
"O" Ring (Water Passage 2) |
1 |
11-2126 |
| 11 |
"O" Ring (Lower Stud) |
2 |
11-4025 |
| 12 |
Drain Screw Sealing Washer |
1 |
11-1017 |
| 13 |
"O" Ring (Bearing Carrier) |
1 |
11-2344 |
| 14 |
Alignment Spacer |
1 |
01-2401 |
| 15 |
Stud (7/16 x 2" S/S) (Spacer and Lower Case) |
6 |
08-130904121 |
| 16 |
Stud (7/16 x 2 1/2" S/S) (Upper Case) |
2 |
08-130904141 |
| 17 |
Stud (7/16 x 1 3/4" S/S) (Spacer) |
2 |
08-130904111 |
| 18 |
Nut (7/16-20 Nylock S/S) |
6 |
08-080904001 |
| 19 |
Nut (7/16-20 Nylock S/S Thin) |
2 |
08-090904001 |
| 20 |
Washer (7/16" AN S/S) |
10 |
08-100900001 |
| 21 |
Washer (7/16" AN S/S Thin) |
2 |
08-160900001 |
| 22 |
Screw (7/16-14 x 1 1/2" 12 Point S/S)(Thin Head) |
2 |
08-070907101 |
| 23 |
Dowel Pin (3/8" x 3/4") |
2 |
01-2115 |
| 24 |
SCX DD Seal Kit 1 1/4" Prop Shaft |
Kit |
11-8014 |
| 25 |
SCX/T/4 DD Lower "O" Ring Install Kit |
Kit |
11-8013 |
