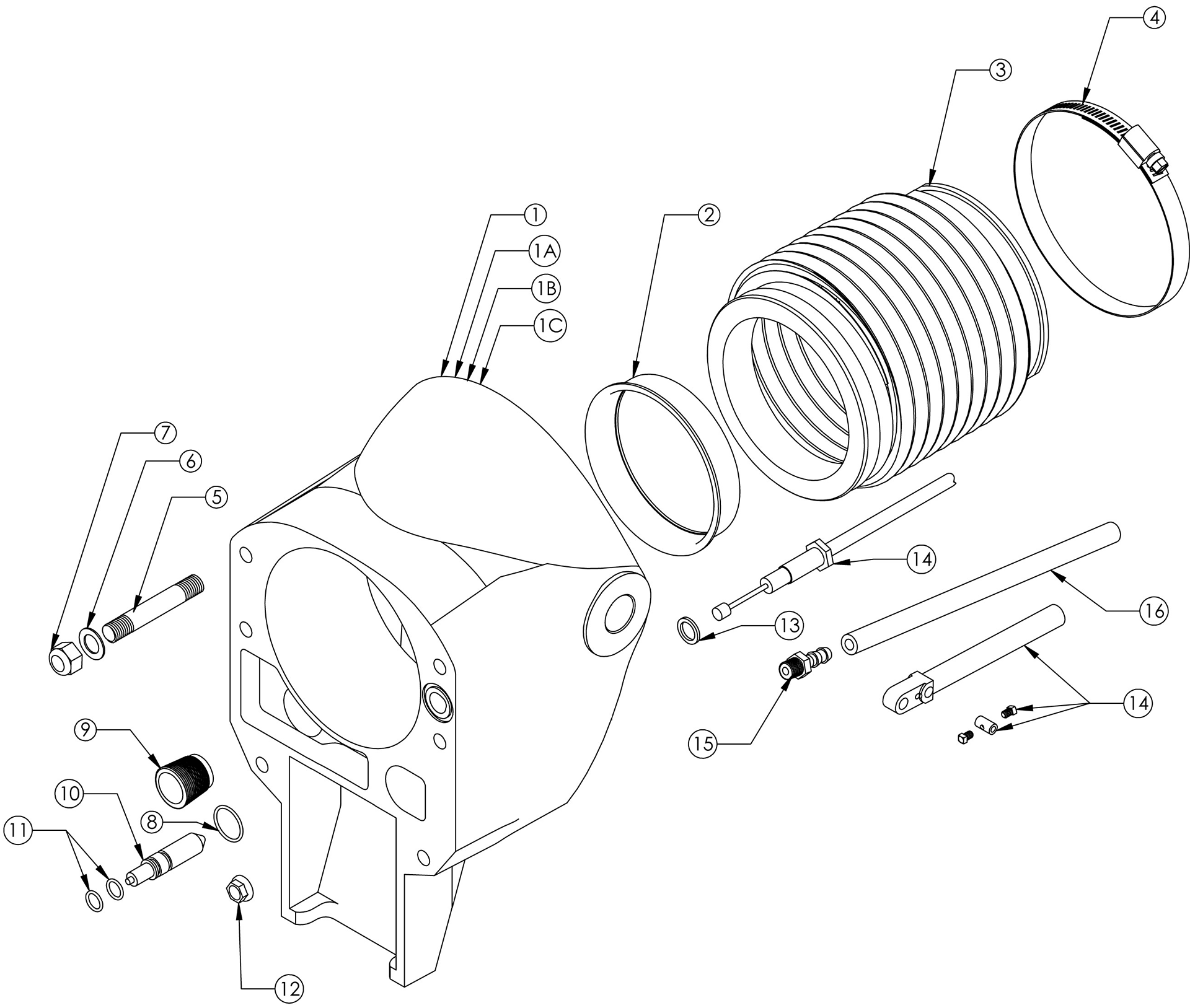

| ITEM |
DESCRIPTION |
QTY |
PART NUMBER |
| 1 |
Gimbal Helmet SC & Bravo Drives (Black) |
1 |
05-1309 |
| 1A |
Gimbal Helmet SC Drive (Silver) |
1 |
05-1310 |
| 1B |
Gimbal Helmet SCX Drive (Black) |
1 |
05-1552 |
| 1C |
Gimbal Helmet SCX Drive (Silver) |
1 |
05-1553 |
| 2 |
Bellows Sleeve |
1 |
05-2022 |
| 3 |
Bellows Kit, U-Joint |
1 |
05-2023 |
| 4 |
Clamp |
1 |
05-2007 |
| 5 |
Stud (7/16″ x 2 3/4″ S/S) |
6 |
08-130904151 |
| 6 |
Washer (7/16" AN S/S) |
6 |
08-100900001 |
| 7 |
Nut (7/16-20 Nylock S/S) |
6 |
08-080904001 |
| 8 |
"O" Ring (Oil Passage) |
1 |
11-2019 |
| 9 |
Insert (Water Hose) |
1 |
05-2004 |
| 10 |
Valve Assembly |
1 |
05-2024 |
| 11 |
"O" Ring (Valve Assembly) |
2 |
11-2012 |
| 12 |
Nut (3/8-24 Flange Self Lock) |
1 |
08-180803002 |
| 13 |
Gasket |
1 |
11-1014 |
| 14 |
Shift Cable Assembly |
Kit |
05-8040 |
| 15 |
Fitting (1/8" Pipe – 1/4" Hose) (Oil Line) |
1 |
09-2004 |
| 16 |
Hose (1/4" Push Lock – 8 3/4") (Oil) |
1 |
09-2003 |
