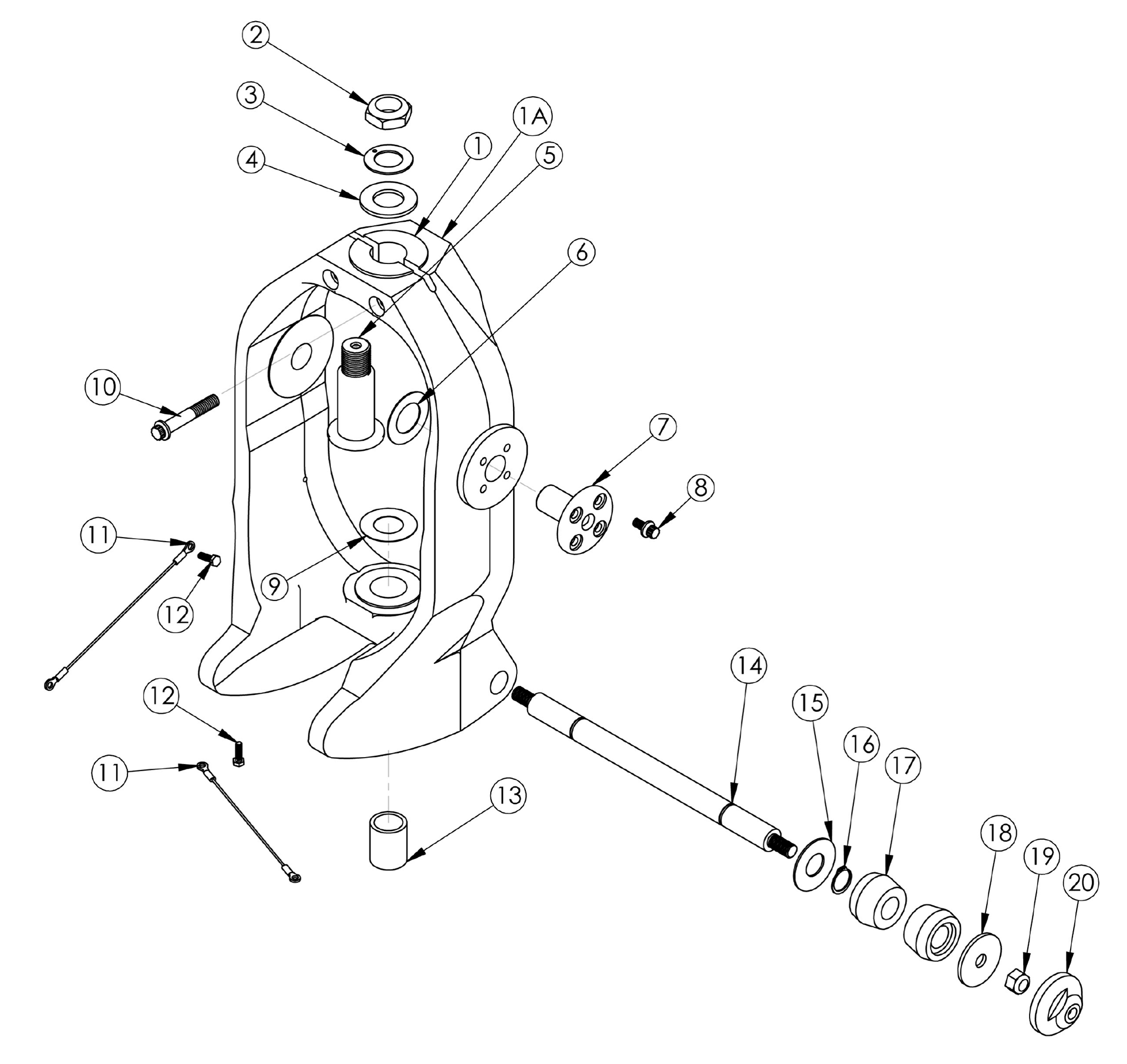

| ITEM |
DESCRIPTION |
QTY |
PART NUMBER |
| 1 |
Gimbal Ring (Black) |
1 |
05-1297 |
| 1A |
Gimbal Ring (Silver) |
1 |
05-1298 |
| 2 |
7/8-14 Hex Thin Nut Grade 8 Steel |
1 |
08-091507002 |
| 3 |
Permaglide Bearing |
1 |
10-4003 |
| 4 |
Washer (7/8″ ID x 1 3/4" OD S/S) |
1 |
08-121500001 |
| 5 |
Upper Swivel Pin |
1 |
05-3343 |
| 6 |
Fiber Washer |
2 |
05-2016 |
| 7 |
Gimbal Hinge Pin |
2 |
05-2307 |
| 8 |
Screw (1/4-20 x 1/2" 12pt. S/S) |
8 |
08-070604041 |
| 9 |
Washer, Shim (Lower Pin .020) |
1 |
05-2036 |
| 10 |
Screw (3/8-16 x 2 1/4" 12pt. S/S) |
2 |
08-070806131 |
| 11 |
Bonding Wire 6" |
1 |
05-2017 |
| 12 |
Screw (10-24 x 3/8" HH S/S) |
2 |
08-010403031 |
| 13 |
Bushing, (Lower Swivel Pin) |
1 |
10-7004 |
| 14 |
Front Anchor Pin (Trim Cylinder) |
1 |
05-3611 |
| 15 |
Washer (Big Hole-Trim Pin S/S) |
2 |
05-6002 |
| 16 |
Snap Ring (Extra Thick) |
2 |
08-211300001 |
| 17 |
Bushing (Trim Pin) |
4 |
05-2020 |
| 18 |
Washer (Small Hole-Trim Pin S/S) |
2 |
05-6004 |
| 19 |
7/16-20 Nylock Nut S/S |
2 |
08-080904001 |
| 20 |
Cap (Plastic Anchor Pin Cap) |
2 |
05-2021 |
