SSM II-III-IV-V 1982-1995 - All Serials - Trim Cylinders And Hoses (III-IV-V)

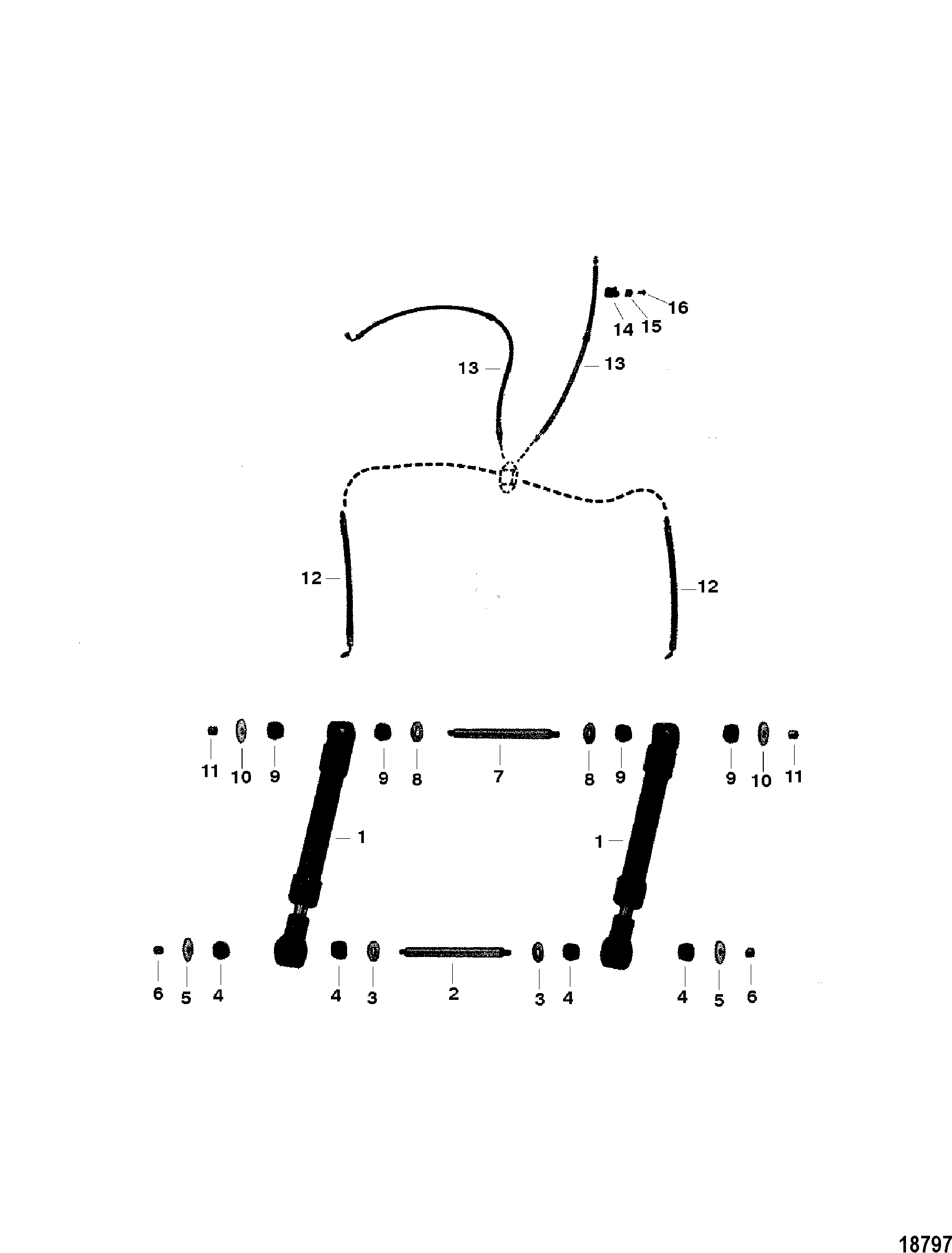

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 47342A23 | CYLINDER ASSEMBLY, Hyd | 2 | 47342A12 | This Part is No Longer Available (REGULAR SHOCK) (.875 DIA ANCHOR PINS) | ||||
| 1 | 47342A23 | CYLINDER ASSEMBLY, Hyd | 2 | 47342A16 | This Part is No Longer Available (SOLID SHOCK) (.875 DIA ANCHOR PINS) | ||||
| 1 | 816420A3 | CYLINDER ASSEMBLY, Hyd | 2 | 47342A20 | (REGULAR SHOCK) (1.00 DIA ANCHOR PINS) | ||||
| 1 | 816420A3 | CYLINDER ASSEMBLY, Hyd | 2 | 47342A18 | (SOLID SHOCK) (1.00 DIA ANCHOR PINS) | ||||
| 2 | 17-47375 | PIN, Anchor | 1 | (.875 DIA ANCHOR PINS) | |||||
| 2 | 17-814643 | PIN, Anchor | 1 | (1.00 DIA ANCHOR PINS) | |||||
| 3 | 12-89664 | WASHER, (.920 x 1.750 x .060) | 2 | (.875 DIA ANCHOR PINS) | |||||
| 3 | 12-814729 | WASHER | 2 | (1.00 DIA ANCHOR PINS) | |||||
| 4 | 23-90203 | BUSHING | 4 | (.875 DIA ANCHOR PINS) | |||||
| 4 | 23-816424 | BUSHING | 4 | (1.00 DIA ANCHOR PINS) | |||||
| 5 | 12-89665 | WASHER, Stainless Steel | 2 | (.875 DIA ANCHOR PINS) | |||||
| 5 | 12-816483 | WASHER | 2 | (1.00 DIA ANCHOR PINS) | |||||
| 6 | 11-35000 | NUT, (.500-20) Stainless Steel | 2 | (.875 DIA ANCHOR PINS) | |||||
| 6 | 11-35000 | NUT, (.500-20) | 2 | 11-816670 | (1.00 DIA ANCHOR PINS) | ||||
| 7 | 17-14875A1 | PIN KIT, Pivot | 1 | (.875 DIA ANCHOR PINS) | |||||
| 7 | 17-814642 | PIN, Pivot | 1 | (1.00 DIA ANCHOR PINS) | |||||
| 8 | 12-89664 | WASHER, (.920 x 1.750 x .060) | 2 | (.875 DIA ANCHOR PINS) | |||||
| 8 | 12-814729 | WASHER | 2 | (1.00 DIA ANCHOR PINS) | |||||
| 9 | 23-90203 | BUSHING | 4 | (.875 DIA ANCHOR PINS) | |||||
| 9 | 23-816424 | BUSHING | 4 | (1.00 DIA ANCHOR PINS) | |||||
| 10 | 12-89665 | WASHER, Stainless Steel | 2 | (.875 DIA ANCHOR PINS) | |||||
| 10 | 12-816483 | WASHER | 2 | (1.00 DIA ANCHOR PINS) | |||||
| 11 | 11-35000 | NUT, (.500-20) Stainless Steel | 2 | (.875 DIA ANCHOR PINS) | |||||
| 11 | 11-35000 | NUT, (.500-20) | 2 | 11-816670 | (1.00 DIA ANCHOR PINS) | ||||
| 12 | 32-86036Q | HOSE, Hydraulic | 4 | 32-86036 | |||||
| 13 | 32-47399 | HOSE, Hydraulic | 2 | ||||||
| 14 | 54-22740 | CLIP (.375) | 3 | ||||||
| 14 | 54-45806 | CLAMP | 1 | 54-39844 | This Part is No Longer Available | ||||
| 15 | 10-62568 | SCREW, (#10-16 x .375) | 4 | ||||||
| 16 | 69205 | C WASHER | 4 |
