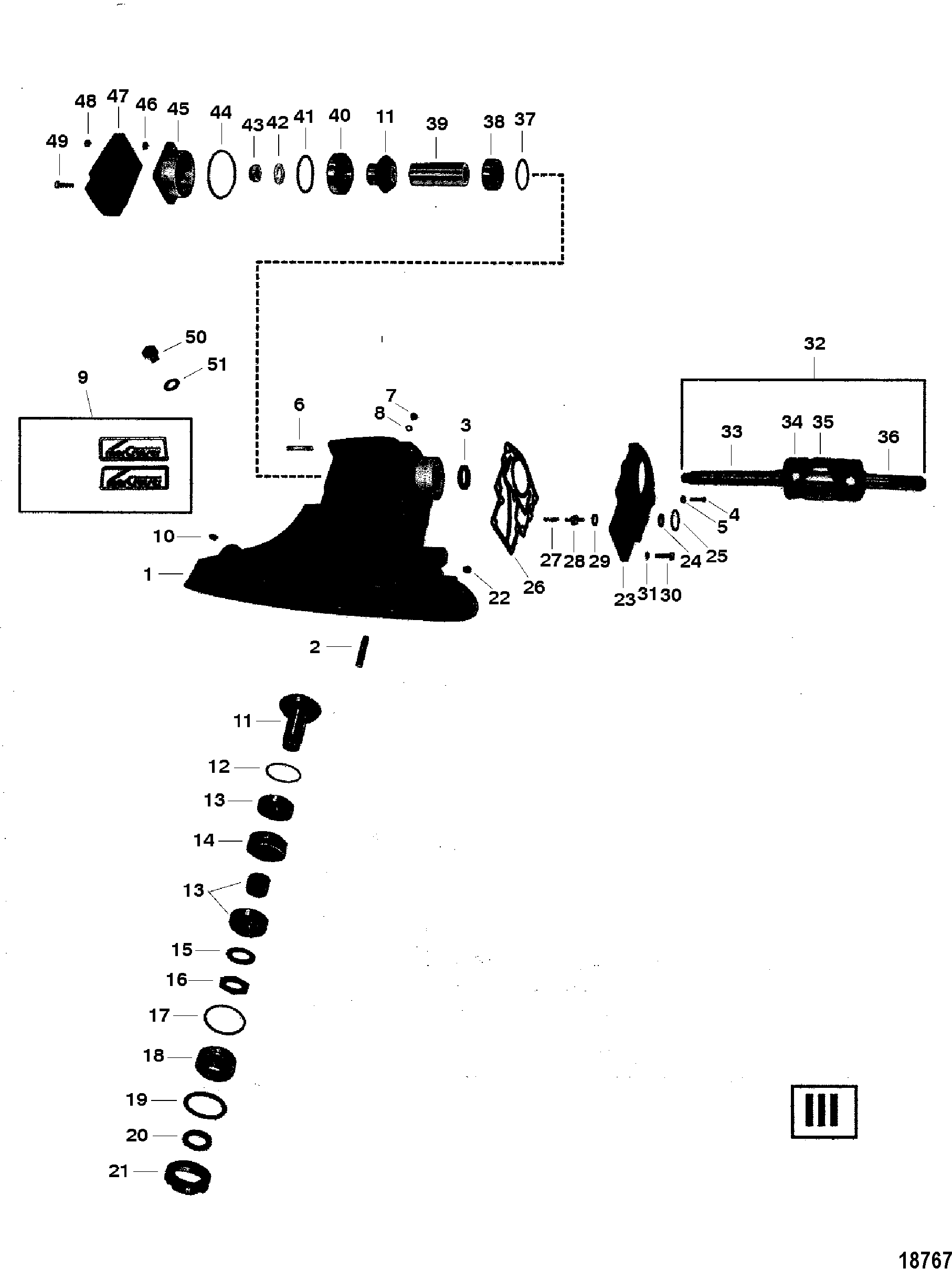

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
1567-3152A37 |
|
|
|
|
HOUSING ASSEMBLY, Driveshaft |
1 |
|
This Part is No Longer Available |
| 2 |
16-57985 |
|
|
|
|
STUD (2.81 In.) |
6 |
|
|
| 3 |
26-38105 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 4 |
10-58642 |
|
|
|
|
SCREW, (.375-16 x 1.50) Stainless Steel |
7 |
|
|
| 5 |
13-58643 |
|
|
|
|
LOCKWASHER, (.375) |
7 |
|
|
| 6 |
16-57984 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.380) |
2 |
|
|
| 6 |
16-57983 |
|
|
|
|
STUD (.437-20 x 2.875) |
2 |
|
|
| 7 |
10-79953Q04 |
|
|
|
|
SCREW, (.375-16 x .250) |
1 |
10-79953 |
|
| 8 |
12-191833 |
|
|
|
|
WASHER, Fiber |
1 |
12-19183 |
|
| 9 |
37-14489A90 |
|
|
|
|
DECAL SET |
1 |
37-14489A87 |
|
| 10 |
19-47579 |
|
|
700-21890 |
|
PLUG |
1 |
|
|
| 11 |
43-813941A2 |
|
|
|
|
GEAR ASSEMBLY |
1 |
43-47309A1 |
This Part is No Longer Available (PINION AND DRIVE) (1.50:1 RATIO) |
| 11 |
43-47237A1 |
|
|
|
|
GEAR ASSEMBLY |
1 |
|
This Part is No Longer Available (PINION AND DRIVE) (2.00:1 RATIO) |
| 12 |
15-34800A1 |
|
|
|
|
SHIM SET |
AR |
|
|
| 13 |
31-34804T4 |
|
|
|
|
BEARING ASSEMBLY, Tapered Roller |
1 |
31-34804A4 |
|
| 14 |
23-47285 |
|
|
|
|
SPACER |
1 |
|
|
| 15 |
12-47451 |
|
|
|
|
WASHER |
1 |
|
This Part is No Longer Available |
| 16 |
11-47449 |
|
|
|
|
NUT (Special) |
1 |
|
This Part is No Longer Available |
| 17 |
25-47288 |
|
|
|
|
O-RING |
1 |
|
|
| 18 |
47303 |
|
|
|
|
ADAPTOR |
1 |
|
This Part is No Longer Available |
| 19 |
12-47289 |
|
|
|
|
WASHER |
1 |
|
This Part is No Longer Available |
| 20 |
27-47290 |
|
|
|
|
GASKET |
1 |
|
This Part is No Longer Available |
| 21 |
47304 |
|
|
|
|
RETAINER |
1 |
|
|
| 22 |
11-47302 |
|
|
|
|
NUT, (.562-18) Stainless Steel |
1 |
|
|
| 22 |
11-34933 |
|
676-9-72004 |
|
|
NUT, (.437-20) Stainless Steel |
1 |
|
|
| 23 |
58619A1 |
|
|
|
|
COVER ASSEMBLY (Front) |
1 |
|
This Part is No Longer Available |
| 24 |
26-48443 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 25 |
25-26722 |
|
|
700-82240 |
|
O-RING |
1 |
|
|
| 26 |
27-48407 |
|
|
|
|
GASKET |
1 |
|
|
| 27 |
24-48442 |
|
|
|
|
SPRING |
1 |
|
|
| 28 |
20-48219 |
|
|
|
|
CHECK VALVE |
1 |
|
|
| 29 |
25-48452 |
|
|
|
|
QUAD RING |
1 |
|
|
| 30 |
10-47658 |
|
|
|
|
SCREW, (.437-14 x 1.50) Stainless Steel (.437-14 x 1.50) |
2 |
|
|
| 31 |
13-47659 |
|
|
|
|
LOCKWASHER, (.437) |
2 |
|
|
| 32 |
44253A1 |
|
|
|
|
UNIVERSAL JOINT ASSEMBLY |
1 |
|
|
| 33 |
44271 |
|
|
|
|
YOKE (Driven End) |
1 |
|
This Part is No Longer Available |
| 34 |
48153 |
|
|
|
|
CROSS AND BEARING ASSEMBLY |
2 |
|
|
| 35 |
63575T |
|
|
|
|
SOCKET |
1 |
63575 |
This Part is No Longer Available |
| 36 |
44253 |
|
|
|
|
YOKE (Driving End) |
1 |
|
This Part is No Longer Available |
| 37 |
15-36178A02 |
|
|
|
|
SHIM SET |
AR |
15-36178A1 |
|
| 38 |
31-39908T1 |
|
|
|
|
BEARING ASSEBMLY, Tapered Roller |
1 |
31-39908A1 |
|
| 39 |
8M0050924 |
|
|
|
|
SPACER |
1 |
23-47305 |
|
| 40 |
31-34804T3 |
|
|
|
|
BEARING ASSEMBLY, Tapered Roller |
1 |
31-34804A3 |
|
| 41 |
15-34822A1 |
|
|
|
|
SHIM SET |
AR |
|
|
| 42 |
12-53212 |
|
|
|
|
WASHER |
1 |
|
|
| 43 |
11-82671327 |
|
|
|
|
NUT (1.00-14) |
1 |
11-90068T |
|
| 44 |
25-47291 |
|
|
|
|
O-RING |
1 |
|
|
| 45 |
47314 |
|
|
|
|
RETAINER |
1 |
|
This Part is No Longer Available |
| 46 |
11-35053 |
|
|
|
|
NUT, (.437-20) |
4 |
|
|
| 47 |
53053 |
|
|
|
|
COVER (Rear) |
1 |
|
This Part is No Longer Available |
| 48 |
11-35053 |
|
|
|
|
NUT, (.437-20) |
4 |
|
|
| 49 |
10-842787 |
|
|
|
|
SCREW, (.375-16 x 2.00) |
2 |
10-47432 |
|
| 50 |
22-320181 |
|
|
|
|
PLUG |
1 |
22-32018 |
|
| 51 |
25-35126 |
|
|
|
|
O-RING, (.859 x .139) |
1 |
|
|
