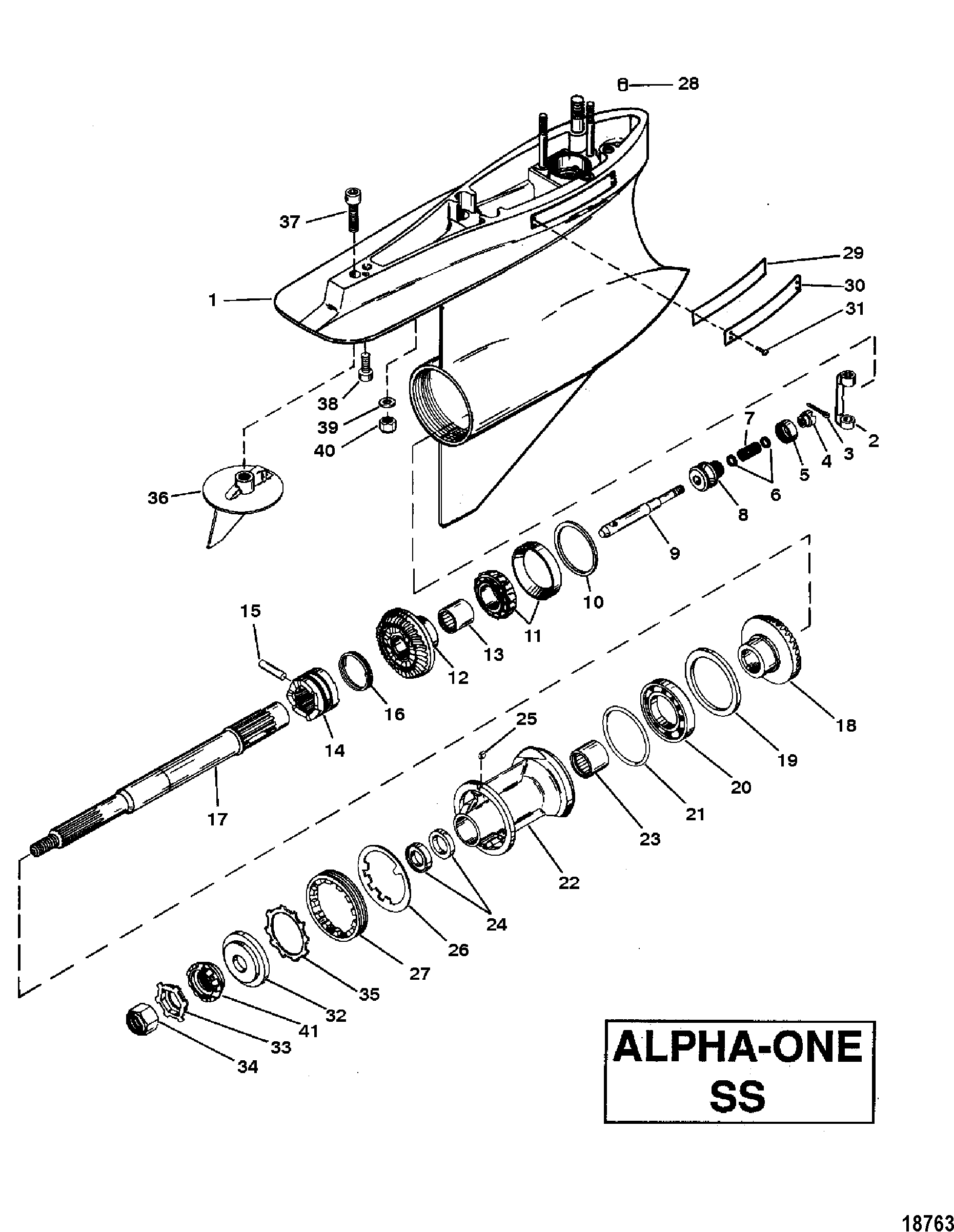

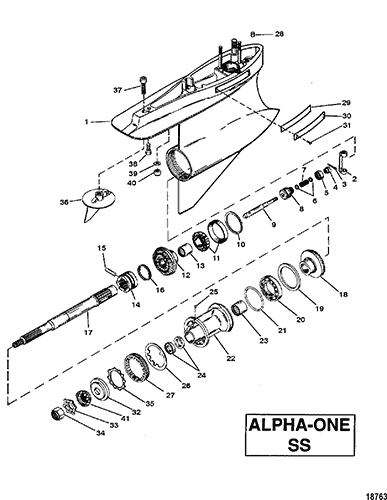

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
1647-9559T5 |
|
|
|
|
GEAR HOUSING ASSEMBLY (BASIC) |
1 |
1647-9559A5 |
This Part is No Longer Available |
| 2 |
76865 |
|
676-9-78132 |
700-11040 |
|
CRANK, Shift |
1 |
|
|
| 3 |
18-469501 |
|
|
|
|
COTTON PIN |
1 |
18-89212 |
|
| 4 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Sleeve |
1 |
|
This Part is not sold separately (Order 19755A2) |
| 5 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Retainer |
1 |
|
This Part is not sold separately (Order 19755A2) |
| 6 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Washer |
2 |
|
This Part is not sold separately (Order 19755A2) |
| 7 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Spring |
1 |
|
This Part is not sold separately (Order 19755A2) |
| 8 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Spool |
1 |
|
This Part is not sold separately (Order 19755A2) |
| 9 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Shaft |
1 |
|
This Part is not sold separately (Order 19755A2) |
| 10 |
15-47397A1 |
|
|
700-23220 |
|
SHIM SET |
AR |
|
|
| 11 |
31-35928T1 |
|
676-9-75120 |
700-21590 |
|
BEARING ASSEMBLY, Tapered Roller |
1 |
31-35928A1 |
|
| 12 |
43-878087A4 |
|
|
700-11312 |
|
GEAR SET |
1 |
43-17064A3 |
(INCLUDES PINION & FORWARD GEARS) |
| 13 |
31-30895T |
|
676-9-75111 |
700-11420 |
|
BEARING, Needle |
1 |
31-30895 |
|
| 14 |
52-853594T |
|
676-9-73474 |
700-11060 |
|
CLUTCH |
1 |
52-66063 |
|
| 15 |
17-30632 |
|
676-9-78111 |
700-21131 |
|
PIN, Cross |
1 |
|
No longer made, limited availability |
| 16 |
24-30893 |
|
676-9-78135 |
700-11050 |
|
SPRING |
1 |
|
|
| 17 |
44-824110 |
|
676-9-72450 |
|
|
PROPELLER SHAFT |
1 |
44-66060 |
|
| 18 |
43-824109A1 |
|
|
|
|
GEAR, Reverse |
1 |
43-42934 |
|
| 19 |
681001 |
|
676-9-78106 |
|
|
RING, Thrust |
1 |
|
|
| 20 |
30-88957T |
|
676-9-75114 |
700-21620 |
|
BEARING, Ball, Ball |
1 |
30-88957A1 |
|
| 21 |
25-31534 |
|
676-9-76544 |
|
525-25-31534 |
O-RING |
1 |
|
1 |
| 22 |
73020A14 |
|
676-9-72601 |
700-11405 |
|
CARRIER ASSEMBLY, Bearing |
1 |
|
|
| 23 |
31-30956T |
|
676-9-75112 |
700-11410 |
|
BEARING, Needle |
1 |
31-30956 |
|
| 24 |
26-76868 |
|
676-9-76202 |
|
|
SEAL, Oil |
2 |
|
(WITHOUT CUTTER SEAL) 1 |
| 24 |
26-14077 |
|
676-9-76119 |
700-85130 |
|
SEAL, Oil |
1 |
|
(INSIDE) (WITH CUTTER SEAL) |
| 24 |
26-12224 |
|
676-9-76101 |
700-85700 |
|
SEAL, Oil |
1 |
|
(OUTSIDE) (WITH CUTTER SEAL) |
| 25 |
28-30281 |
|
|
700-11080 |
|
KEY |
1 |
|
|
| 26 |
14-79447 |
|
|
700-11380 |
|
TAB WASHER |
1 |
|
|
| 27 |
8M2011027 |
|
|
700-21120 |
525-8M2011027 |
RETAINER |
1 |
79448 |
|
| 28 |
22-13820 |
|
|
|
|
PIPE PLUG |
1 |
|
|
| 29 |
25-39695 |
|
|
|
|
O-RING |
2 |
|
|
| 30 |
12144 |
|
|
|
|
COVER, Water Passage |
2 |
|
This Part is No Longer Available |
| 31 |
10-87926 |
|
|
|
|
SCREW, (#10-32 x .500) |
8 |
|
|
| 32 |
12-835467Q01 |
|
|
700-21301 |
|
THRUST HUB |
1 |
13171 |
|
| 33 |
14-816629Q |
|
|
700-21200 |
|
TAB WASHER |
1 |
14-31210 |
|
| 34 |
11-52707Q1 |
|
|
700-21230 |
|
PROP NUT KIT, (.750-16) |
1 |
11-52707A1 |
|
| 35 |
13-423511 |
|
|
|
|
LOCKWASHER, Toothed |
1 |
|
|
| 36 |
822777Q1 |
|
|
700-12680 |
|
TRIM TAB ASSEMBLY |
1 |
46399A1 |
|
| 37 |
10-32470 |
|
|
700-21740 |
|
SCREW, (.437-14 x 1.75) |
1 |
|
|
| 38 |
10-30206 |
|
|
700-22430 |
|
SCREW, (.375-16 x 1.00) Stainless Steel |
1 |
|
|
| 39 |
12-45176 |
|
|
700-28420 |
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 40 |
11-859116 |
|
|
700-21170 |
|
NUT, (.4375-20) |
2 |
11-134391 |
|
| 41 |
12-31211Q03 |
|
|
700-21360 |
|
WASHER, Splined |
1 |
12-31211A2 |
|
| - |
26-33144A2 |
|
676-9-74304 |
700-87510 |
|
SEAL KIT |
1 |
|
|
