SSM II-III-IV-V 1982-1995 - All Serials - Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)

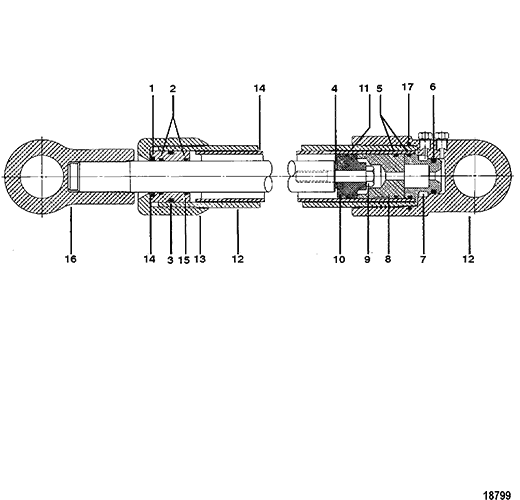

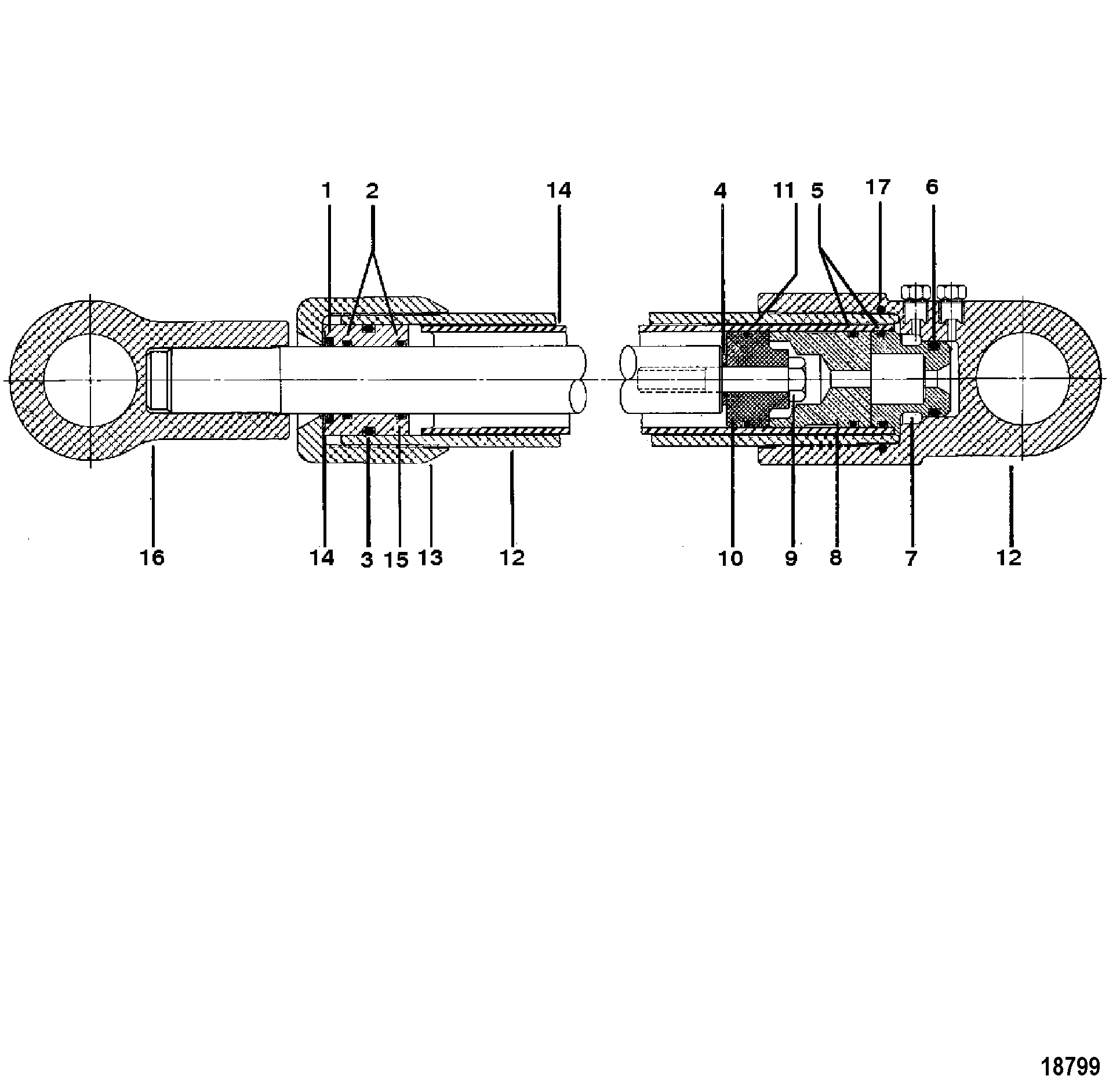

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 25-47389A2 | O-RING KIT | 1 | 25-47389A1 | |||||
| 1 | NSS | NOT SOLD SEPARATE, Rod Scrapper | 1 | This Part is not sold separately | |||||
| 2 | NSS | NOT SOLD SEPARATE, O-Ring (1.00 x 1.187 x .093) | 2 | This Part is not sold separately | |||||
| 3 | NSS | NOT SOLD SEPARATE, O-Ring (1.375 x 1.625 x .125) | 1 | This Part is not sold separately | |||||
| 4 | NSS | NOT SOLD SEPARATE, Sealing Washer | 1 | This Part is not sold separately | |||||
| 5 | NSS | NOT SOLD SEPARATE, O-Ring (1.250 x 1.437 x .093) | 3 | This Part is not sold separately | |||||
| 6 | NSS | NOT SOLD SEPARATE, O-Ring (.875 x .125 x .125) | 1 | This Part is not sold separately | |||||
| 7 | 47344 | GUIDE, Inner Support | 1 | ||||||
| 8 | 88365 | PISTON, Trim | 1 | ||||||
| 9 | 10-35787 | SCREW, (.375-16 x 2.250) | 1 | ||||||
| 10 | 86483T1 | PISTON (Nonshock) | 1 | 864831 | |||||
| 11 | 25-813920 | T RING, Piston | 1 | ||||||
| 12 | 47342A22 | CYLINDER ASSEMBLY | 1 | (USE WITH 0.875 DIA. ANCHOR PINS) | |||||
| 12 | 816420A4 | CYLINDER ASSEMBLY | 1 | This Part is No Longer Available (USE WITH 1.00 DIA. ANCHOR PINS) | |||||
| 13 | 55825A1 | END CAP ASSEMBLY | 1 | ||||||
| 14 | 32-47387 | TUBE, Inner Cylinder | 1 | ||||||
| 15 | 55824 | BEARING, Piston Rod | 1 | ||||||
| 16 | 47376A2 | PISTON/ROD ASSEMBLY, Power Trim | 1 | This Part is No Longer Available (USE WITH .875 DIA. ANCHOR PINS) | |||||
| 16 | 816421A2 | ROD ASSEMBLY, Trim Piston | 1 | This Part is No Longer Available (USE WITH 1.00 DIA. ANCHOR PINS) | |||||
| 17 | 25-69387 | O-RING | 1 |
