SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assy (Driveshaft and Propshaft) (III)

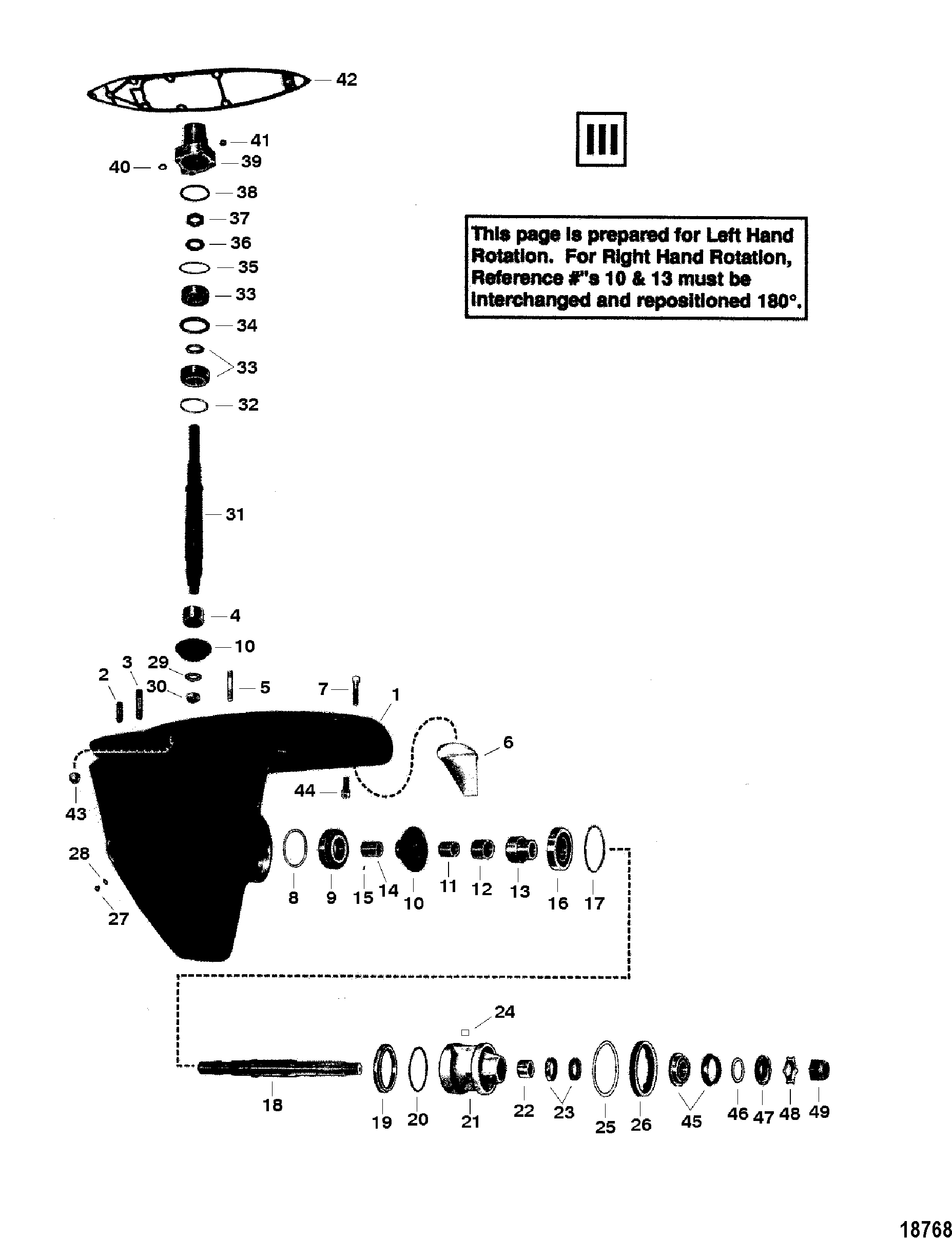

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1636-4354A3         GEAR HOUSING ASSEMBLY (BASIC) 1   This Part is No Longer Available
2 16-57982         STUD, (.437-14/.437-20 x 1.875) 1

3 16-57985         STUD (2.810) 1 16-57986
4 31-35246         BEARING, Roller 1

5 16-57981         STUD (.375-16 x 3.00) 4   This Part is No Longer Available
6 31640Q4         TRIM TAB ASSEMBLY 1 31640A1
7 10-41350         SCREW, (.437-14 x 2.50) Stainless Steel 1

8 15-47295A1         SHIM ASSEMBLY AR   This Part is No Longer Available
9 31-47484A1         BEARING ASSEMBLY, Tapered Roller 1   This Part is No Longer Available
10 43-53572A2         GEAR ASSEMBLY (Pinion and Drive) 1   This Part is No Longer Available
11 23-48016         SPACER 1   This Part is No Longer Available
12 23-48015         SPACER 1   This Part is No Longer Available
13 53516         ADAPTOR 1   This Part is No Longer Available
14 23-48011         SLEEVE 1   This Part is No Longer Available
15 17-53308         PIN, Dowel 1

16 31-47484A1         BEARING ASSEMBLY, Tapered Roller 1   This Part is No Longer Available
17 15-47297A1         SHIM ASSEMBLY AR   This Part is No Longer Available
18 44-53185A1         PROPELLER SHAFT ASSEMBLY (1.250-12) 1   This Part is No Longer Available
19 47307         RING, Thrust 1   This Part is No Longer Available
20 25-47298         O-RING 1   This Part is No Longer Available
21 52623A2         CARRIER ASSEMBLY, Bearing, Bearing 1   This Part is No Longer Available
22 31-47946         BEARING, Roller 1
No longer made, limited availability
23 26-19473         SEAL, Oil 2

24 28-30281         KEY 1

25 14-52553         TAB WASHER 1   This Part is No Longer Available
26 52622         COVER 1   This Part is No Longer Available
27 10-79953Q04         SCREW, (.375-16 x .250) 1 10-79953
28 12-191833         WASHER, Fiber 1 12-19183
29 12-32073         WASHER 1   This Part is No Longer Available
30 11-858869         NUT, (.875-14) 1 11-56041
31 45-47323         DRIVESHAFT 1   This Part is No Longer Available
32 15-39808A1         SHIM ASSEMBLY AR
No longer made, limited availability
33 31-47669A2         BEARING ASSEMBLY, Tapered Roller 1   This Part is No Longer Available
34 23-47603         ELBOW 1   This Part is No Longer Available
35 15-39808A1         SHIM ASSEMBLY AR
No longer made, limited availability
36 12-56042         WASHER 1

37 11-34826         NUT (1.250-16) 1   This Part is No Longer Available
38 25-20081         O-RING (Large) 1

39 47315         RETAINER 1   This Part is No Longer Available
40 25-45711         O-RING, (.612 x .103) (Small) 1

41 11-82671013         NUT, (.375-24) 4 11-34932
42 27-47317         GASKET 1

43 11-47302         NUT, (.562-18) Stainless Steel 6

44 10-47557         SCREW, (.500-13 x 1.500) 1   This Part is No Longer Available.
45 48018A1         THRUST HUB AND WASHER ASSEMBLY 1   This Part is No Longer Available
46 12-37763         WASHER, Thrust 1   This Part is No Longer Available
47 12-48014         WASHER 1   This Part is No Longer Available
48 14-48012         TAB WASHER 1   This Part is No Longer Available
49 11-17844         NUT (1.250-12) 1   This Part is No Longer Available
