SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Propshaft) (III SSM)

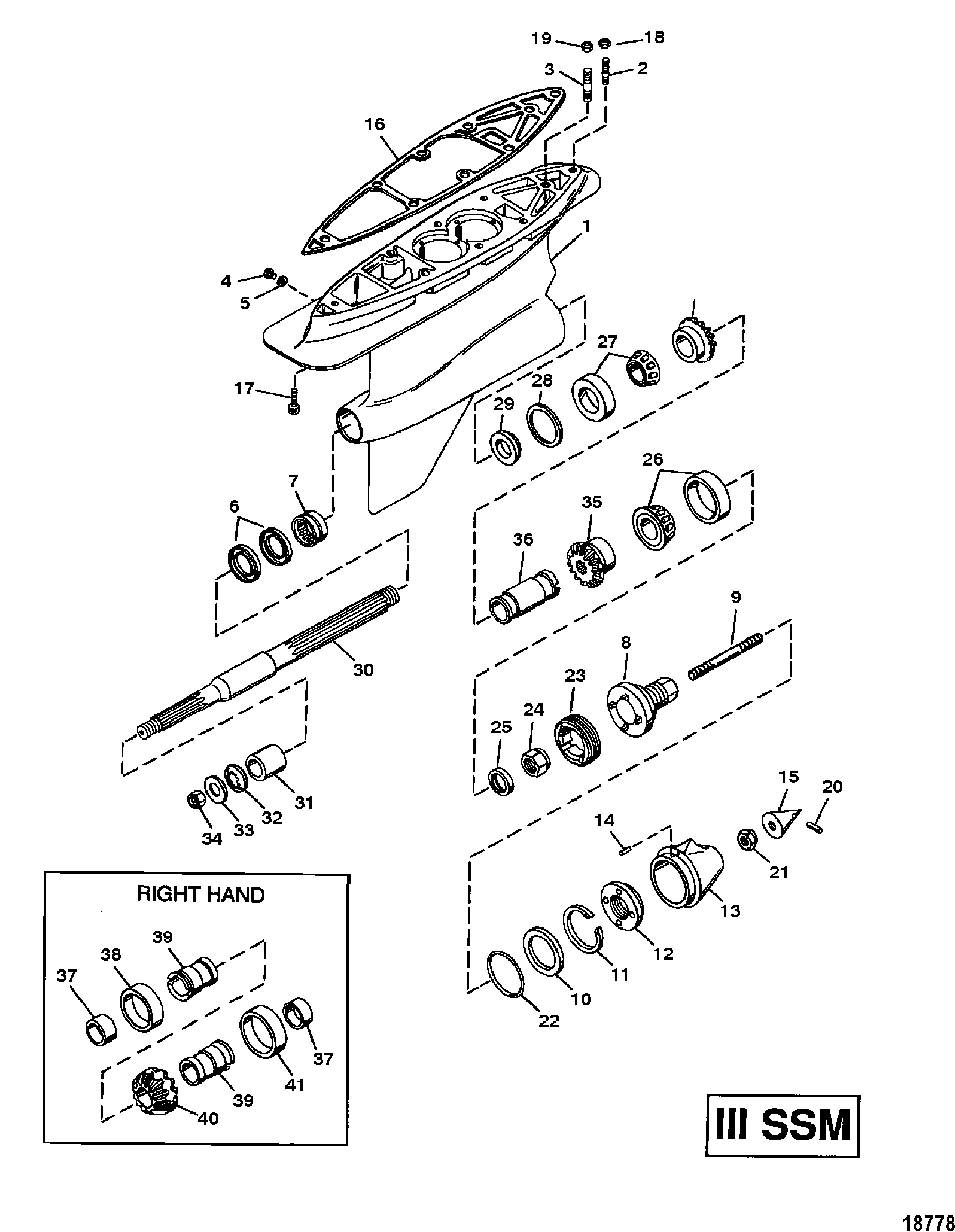

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1664-8509A1         GEAR HOUSING ASSEMBLY 1   This Part is No Longer Available (Basic)
2 16-57982         STUD, (.437-14/.437-20 x 1.875) 1

3 16-57985         STUD (2.810) 1 16-57986
4 10-79953Q04         SCREW, (.375-16 x .250) 1 10-79953
5 12-191833         WASHER, Fiber 1 12-19183
6 26-19473         SEAL, Oil 3
1
7 31-39832T         BEARING, Roller 1 31-39832 1
8 53061         ANCHOR, Stud 1   This Part is No Longer Available
9 16-53064         STUD, Nose Cone 1

10 12-39821         WASHER 1   This Part is No Longer Available
11 53-35128         RING, Retaining 1

12 39803         COVER 1   This Part is No Longer Available
13 98023         NOSE CONE 1   This Part is No Longer Available
14 17-30282         PIN 1

15 98036         CAP, Nose Cone 1

16 27-47317         GASKET 1
1
17 10-47557         SCREW, (.500-13 x 1.500) 1   This Part is No Longer Available No longer made, limited availability
18 11-34933   676-9-72004     NUT, (.437-20) Stainless Steel 1
1
19 11-47302         NUT, (.562-18) Stainless Steel 1
1
20 65700         PLUG 1
1
21 11-47379         NUT, (.625-18) Stainless Steel 1
1
22 25-39828         O-RING 1
1
23 11-53060         NUT 1
1
24 11-39825         NUT (1.250-12) 1
1
25 23-846409         WASHER 1 12-42262 1
26 31-39772T1         BEARING, Roller 1 31-39772A1
27 31-39770T1         BEARING, Roller 1 31-39770A1
28 15-39809A1         SHIM SET AR

29 12-39818         WASHER 1   This Part is No Longer Available
30 44-85187T         PROPELLER SHAFT 1 44-85187 This Part is No Longer Available
31 23-87753T         SPACER AR 23-87753 This Part is No Longer Available (LONG PROPELLER HUB ONLY)
32 12-39820         WASHER 1
1
33 12-39817         WASHER, Special - Stainless Steel 1
1
34 11-82671127         NUT (1.00-14) 1 11-39907 1
35 43-16768A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (LH - 1.00:1)
35 43-78095A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (LH - 1.125:1)
36 23-53070         SPACER 1
(LH GEAR SET)
37 23-53067         SPACER 2   This Part is No Longer Available (RH GEAR SET)
38 23-53068         SPACER 1   This Part is No Longer Available (RH GEAR SET)
39 91846         SPACER 2
(RH GEAR SET)
40 43-16769A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (RH - 1.00:1)
40 43-78096A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (RH - 1.125:1)
41 23-53066         SPACER 1   This Part is No Longer Available (RH GEAR SET)
- 1664-8509A13         REBUILD KIT 1 1664-8509A10 This Part is No Longer Available
