| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

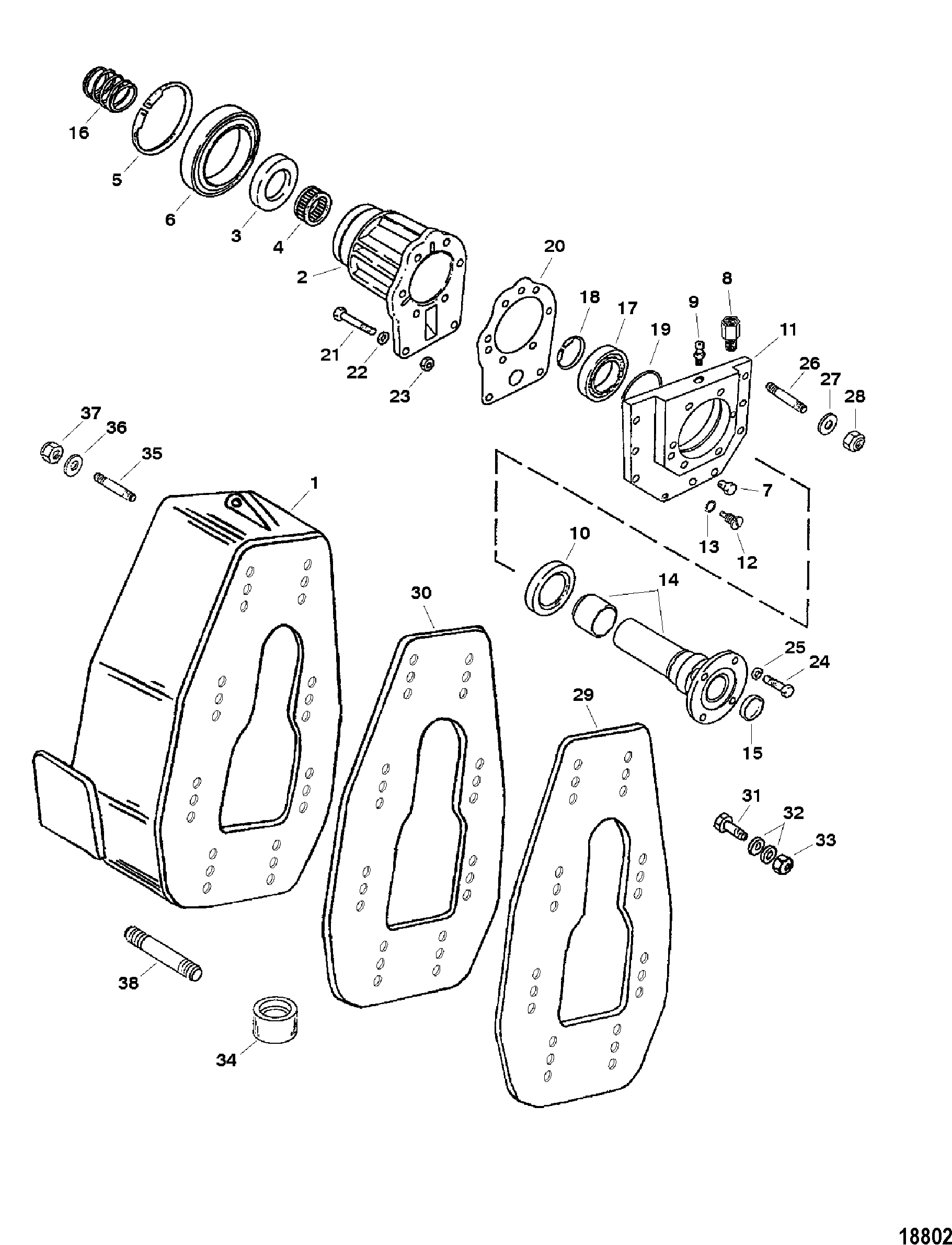

43460T1 |
|
|
|
|
STANDOFF KIT |
1 |
43460A1 |
This Part is No Longer Available (CONVERSION) |
| - |
43463A4 |
|
|
|
|
STANDOFF KIT |
1 |
|
This Part is No Longer Available (COMPLETE) |
| 1 |
43463A1 |
|
|
|
|
STANDOFF BOX ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 2 |
817388A1 |
|
|
|
|
HOUSING ASSEMBLY, Bearing Support |
1 |
|
This Part is No Longer Available |
| 3 |
26-817392 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 4 |
31-814653T |
|
|
|
|
BEARING ASSEMBLY, Needle Rollers |
1 |
31-814653 |
|
| 5 |
53-52503 |
|
|
|
|
RING, Snap |
1 |
|
This Part is No Longer Available |
| 6 |
53-52507 |
|
|
|
|
RING, Positioning |
1 |
|
This Part is No Longer Available |
| 7 |
22-36382 |
|
|
700-21887 |
|
FITTING, (.250-18 x .62) Brass, Pipe |
1 |
|
|
| 8 |
22-28586 |
|
|
|
|
FITTING, Adapter |
1 |
|
|
| 9 |
22-47902 |
|
|
|
|
FITTING, Breather |
1 |
|
|
| 10 |
26-52499 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 11 |
434581 |
|
|
|
|
PLATE, Driveshaft Extension |
1 |
|
This Part is No Longer Available |
| 12 |
22-8M0058389 |
|
|
|
|
FITTING KIT, Magnetic, Plug Fill/Drain (Magnetic) |
1 |
22-67892A1 |
|
| 13 |
12-191833 |
|
|
|
|
WASHER, Fiber, Drain Plug |
1 |
12-19183 |
|
| 14 |
52505A2 |
|
|
|
|
SHAFT ASSEMBLY, Driveshaft Extension |
1 |
|
This Part is No Longer Available |
| 15 |
19-47463 |
|
|
|
|
EXPANSION PLUG, Expansion |
1 |
|
|
| 16 |
24-47755 |
|
|
|
|
SPRING |
1 |
|
|
| 17 |
30-47470 |
|
|
|
|
BEARING, Ball |
1 |
|
|
| 18 |
53-52502 |
|
|
|
|
RING, Snap |
1 |
|
|
| 19 |
15-49264A1 |
|
|
|
|
SHIM |
AR |
|
No longer made, limited availability |
| 20 |
27-52501 |
|
|
|
|
GASKET |
1 |
|
|
| 21 |
10-56393 |
|
|
|
|
SCREW, (.437-20 x 1.75) |
2 |
|
|
| 21 |
10-32515 |
|
|
|
|
SCREW, (.437-20 x 2.50) |
6 |
|
|
| 22 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
16 |
|
|
| 23 |
11-35053 |
|
|
|
|
NUT, (.437-20) |
8 |
|
|
| 24 |
10-60106 |
|
|
|
|
SCREW, (1.25 In) (.437-20 x 1.250) |
4 |
|
This Part is No Longer Available |
| 25 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
4 |
|
|
| 26 |
16-8M0034443 |
|
|
|
|
STUD (.375-24 x 2.065) |
6 |
16-97008 |
|
| 27 |
12-45175 |
|
|
|
|
WASHER, (.406 x .750 x .104) |
6 |
|
|
| 28 |
11-82671013 |
|
|
|
|
NUT, (.375-24) |
6 |
11-34932 |
|
| 29 |
43460T |
|
|
|
|
PLATE, Transom |
1 |
43460 |
|
| 30 |
27-43527 |
|
|
|
|
GASKET |
1 |
|
|
| 31 |
10-677551 |
|
|
|
|
SCREW, (.500-20 x 4.500) |
8 |
|
|
| 32 |
12-54012 |
|
|
|
|
WASHER, (.530 x .870 x .105) Stainless Steel |
16 |
|
|
| 33 |
11-35000 |
|
|
|
|
NUT, (.500-20) |
8 |
11-816670 |
|
| 34 |
23-43489 |
|
|
|
|
SPACER, Steering Lever Replace |
1 |
|
This Part is No Longer Available |
| 35 |
16-43449 |
|
|
|
|
STUD, Gimbal Housing |
8 |
|
|
| 36 |
12-54012 |
|
|
|
|
WASHER, (.530 x .870 x .105) Stainless Steel |
8 |
|
|
| 37 |
11-35000 |
|
|
|
|
NUT, (.500-20) |
8 |
11-816670 |
|
| 38 |
16-434701 |
|
|
|
|
STUD, Bell Housing To Steering Bracket |
1 |
|
This Part is No Longer Available |
