SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Propshaft) (IIIa SSM)

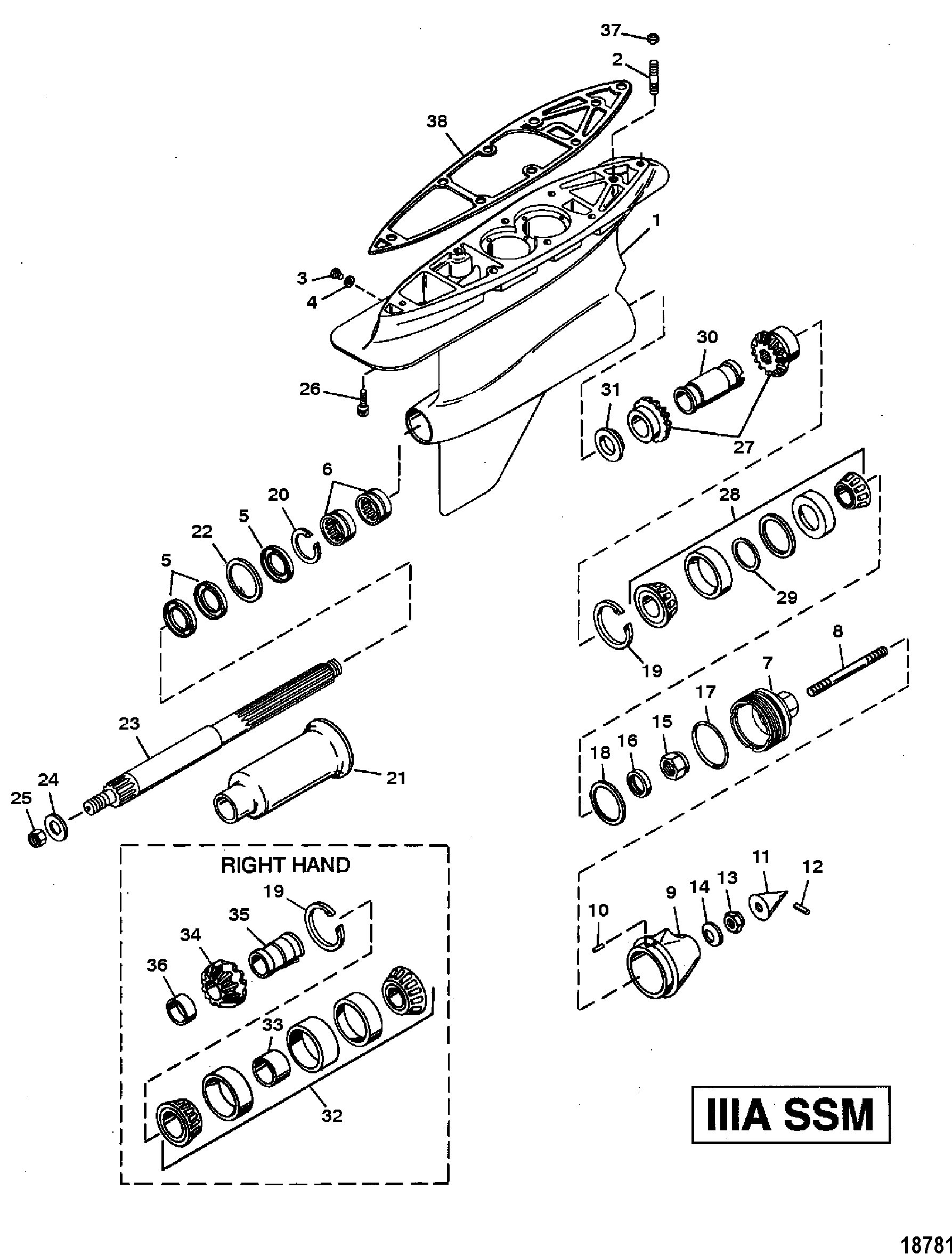

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1677-817090A13         GEAR HOUSING ASSEMBLY 1   This Part is No Longer Available (BASIC)
2 16-57985         STUD (2.810) 1 16-579861
3 22-8M0058389     700-21731 525-22-8M0058389 SCREW, Magnetic (.375-16) 1 22-67892
4 12-191833       525-12-191833 WASHER, Fiber 1 12-19183
5 26-19473         SEAL, Oil 3

6 31-39832T         BEARING, Roller 2 31-39832
7 18991         ANCHOR, Stud 1

8 16-530642         STUD, Nose Cone 1

9 11353         NOSE CONE 1

10 17-30282         PIN 1

11 98036         CAP, Nose Cone 1

12 65700         PLUG 1

13 11-47379         NUT (.625-18) 1 11-33002
14 12-34961         WASHER 1

15 11-39825         NUT (1.250-12) 1

16 23-846409         WASHER 1 12-42262
17 25-32507         O-RING, (3.359 x .139) 1

18 23-18995         SPACER 1

19 53-18994099         RING, Snap (.099 Thick) AR

19 53-18994100         RING, Snap (.100 Thick) AR   This Part is No Longer Available
19 53-18994101         RING, Snap (.101 Thick) AR

19 53-18994102         RING, Snap (.102 Thick) AR   This Part is No Longer Available
19 53-18994103         RING, Snap (.103 Thick) AR

19 53-18994104         RING, Snap (.104 Thick) AR   This Part is No Longer Available
19 53-18994105         RING, Snap (.105 Thick) AR

19 53-18994106         RING, Snap (.106 Thick) AR   This Part is No Longer Available
19 53-18994107         RING, Snap (.107 Thick) AR

19 53-18994108         RING, Snap (.108 Thick) AR   This Part is No Longer Available
19 53-18994109         RING, Snap (.109 Thick) AR

19 53-18994110         RING, Snap (.110 Thick) AR   This Part is No Longer Available
19 53-18994111         RING, Snap (.111 Thick) AR

19 53-18994112         RING, Snap (.112 Thick) AR   This Part is No Longer Available
20 53-815353         RING, Retaining 1

21 848061         COVER, Propshaft Guard 1

22 15-66672010         SHIM 3   This Part is No Longer Available
23 44-18989T         PROPELLER SHAFT (RH) 1 44-18989 This Part is No Longer Available
23 44-18988T         PROPELLER SHAFT (LH) 1 44-18988 This Part is No Longer Available
24 12-39817         WASHER, Special - Stainless Steel 1

25 11-82671127         NUT, (1.0-14) 1 11-54034
26 10-873702         SCREW, (.500-13 x 3.00) 1

27 43-19330A1         GEAR SET (Pinion and Drive) 2   This Part is No Longer Available (LH - 1.00:1 RATIO)
27 43-816227A1         GEAR SET (Pinion and Drive) 2 43-19333A1 This Part is No Longer Available (LH - 1.125:1 RATIO)
28 31-39772A2         BEARING ASSEMBLY, Roller 1   This Part is No Longer Available (LH GEAR SET)
29 23-18993         SPACER 1
(LH GEAR SET)
30 23-53070         SPACER 1
(LH GEAR SET)
31 12-39818         WASHER 1   This Part is No Longer Available (LH GEAR SET)
32 31-39772A3         BEARING ASSEMBLY, Roller 1
(RH GEAR SET) no longer made, limited availability
33 23-19296         SPACER 1
(RH GEAR SET)
34 43-19329A1         GEAR SET (Pinion and Drive) 1   This Part is No Longer Available (RH - 1.00:1 RATIO)
34 43-816226A1         GEAR SET (Pinion and Drive) 1 43-19332A1 This Part is No Longer Available (RH - 1.125:1 RATIO)
35 23-8M0050942         SPACER 1 23-18990 (RH GEAR SET)
36 12-19180         WASHER 1
(RH GEAR SET)
37 11-47302         NUT, (.562-18) Stainless Steel 1
38 27-47317         GASKET 1
