SSM II-III-IV-V 1982-1995 - All Serials - Control Panel (III-IV-V)

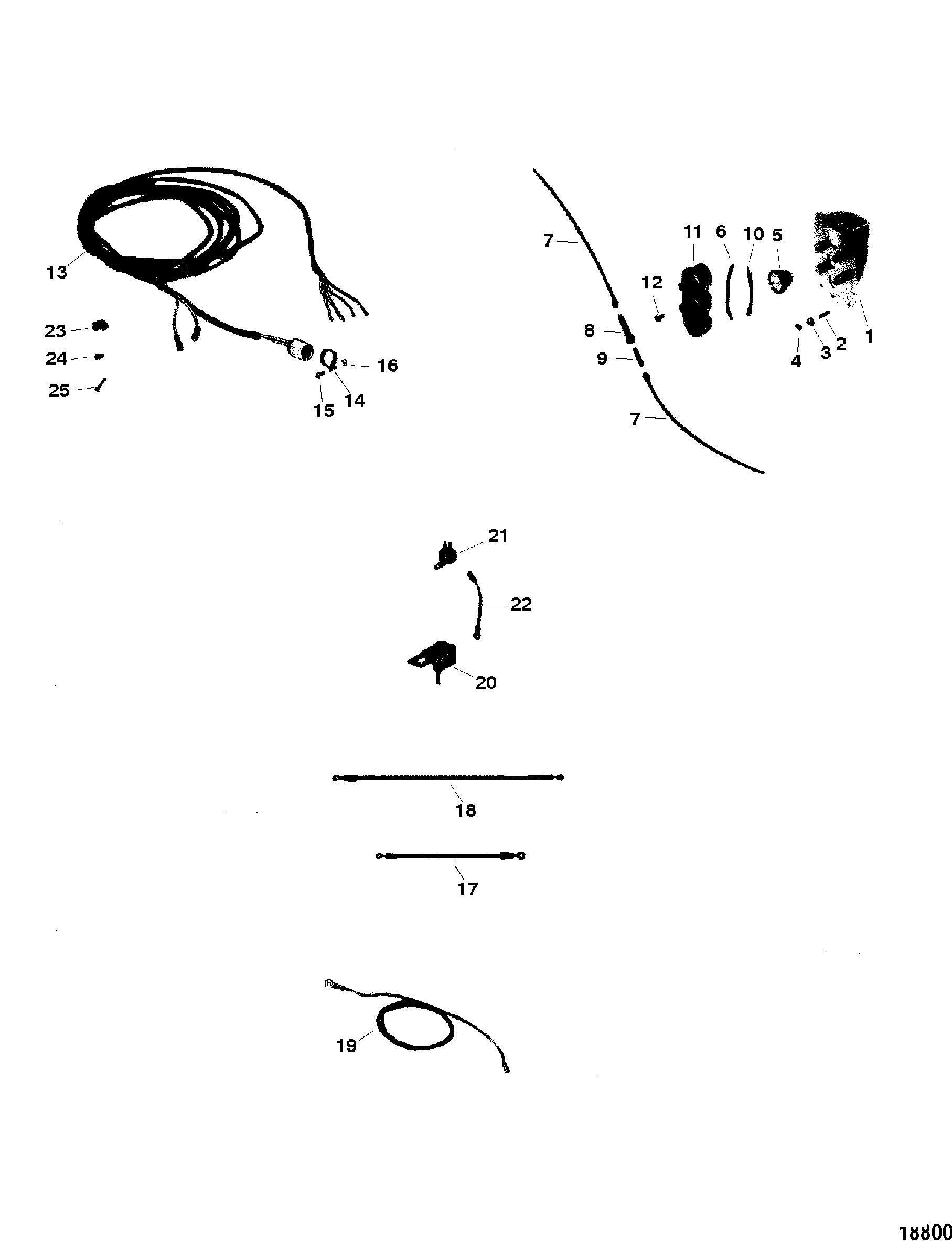

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Control Panel (III-IV-V)
- Driveshaft Housing And Gear Assembly (II SSM)
- Driveshaft Housing And Gear Assembly (III SSM)
- Driveshaft Housing And Gear Assembly (III)
- Driveshaft Housing And Gear Assembly (IV SSM)
- Driveshaft Housing And Gear Assy (Alpha One-Ss)
- Driveshaft Housing And Gear Assy (IIIa SSM)
- Driveshaft Housing And Gear Assy (V SSM)
- Driveshaft Housing Assembly (Alpha One-Ss)
- Driveshaft Housing Assembly Chart (Complete)
- Gear Housing Assembly (Driveshaft) (II SSM)
- Gear Housing Assembly (Driveshaft) (III SSM)
- Gear Housing Assembly (Driveshaft) (IIIa SSM)
- Gear Housing Assembly (Driveshaft) (IV SSM)
- Gear Housing Assembly (Driveshaft) (V SSM)
- Gear Housing Assembly (Propshaft) (II SSM)
- Gear Housing Assembly (Propshaft) (III SSM)
- Gear Housing Assembly (Propshaft) (IIIa SSM)
- Gear Housing Assembly (Propshaft) (IV SSM)
- Gear Housing Assembly (Propshaft) (V SSM)
- Gear Housing Assembly Chart (Complete)
- Gear Housing Assy (Driveshaft and Propshaft) (III)
- Gear Housing Assy (Driveshaft) (Alpha One-Ss)
- Gear Housing Assy (Propshaft) (Alpha One-Ss)
- Gimbal Housing And Bell Housing (IIIa-V) (2nd Design)
- Gimbal Housing And Bell Housing (III-IV-V) (1st Design)
- Gimbal Ring And Steering Lever (IIIa-V) (2nd Design)
- Gimbal Ring And Steering Lever (III-IV-V) (1st Design)
- Hydraulic Pump And Bracket (III-IV-V) (Prestolite)
- Hydraulic Pump And Brackets (III-IV-V) (Oildyne)
- Hydraulic Pump Assembly (III-IV-V) (Oildyne)
- Hydraulic Pump Assy (III-IV-V) (Prestolite)
- Reservior Bottle-Standoff Box
- Standoff Box Kit
- Transom Plate (III-IIIa-IV-V)
- Transom Plate And Shift Cable (Alpha)
- Trim Cylinder And Repair Kits (III-IV-V) (1st Design)
- Trim Cylinder And Repair Kits (III-IV-V) (2nd Design)
- Trim Cylinders And Hoses (III-IV-V)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 55642A13 | CONTROL PANEL ASSEMBLY, Control (COMPLETE) | 1 | ||||||
| 1 | 55642A17 | PANEL KIT | 1 | ||||||
| NS | 37-57577 | DECAL, Power Trim | 1 | ||||||
| 2 | 16-55422 | STUD, (#10-32 x 2.00) | 4 | ||||||
| 3 | 12-24676 | WASHER, (.200 x .440 x .032) | 4 | ||||||
| 4 | 11-27164 | NUT AND LOCKWASHER, (#10-32) | 4 | ||||||
| 5 | 55738A1 | SWITCH ASSEMBLY | 3 | ||||||
| 6 | 48078 | WIRE, Jumper (Red) (3.250 In.) (Use Without Fuse) | 1 | This Part is No Longer Available | |||||
| 7 | 84-69174A2 | WIRE, (24.00 Inches) (Red) | 2 | This Part is No Longer Available | |||||
| 8 | 88-69358A1 | CAP ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 9 | 88-79091 | FUSE, 20 Ampere | 1 | ||||||
| 10 | 53107 | WIRE, Jumper (3.00 Inches) (Purple) | 1 | ||||||
| 11 | 55641 | RETAINER | 1 | This Part is No Longer Available | |||||
| 12 | 10-62568 | SCREW, (#10-16 x .375) | 4 | ||||||
| 13 | 84-87394A20 | HARNESS ASSEMBLY | 1 | ||||||
| 14 | 95814 | CLAMP | 1 | 54-46770 | |||||
| 15 | 10-29227 | SCREW, (#8-32 x 0.50) | 1 | ||||||
| 16 | 11-34388 | NUT (#8-32) | 1 | ||||||
| 17 | 84-79139A2 | WIRE ASSEMBLY, Jumper (Red) | 1 | This Part is No Longer Available | |||||
| 18 | 84-65999A4 | WIRE ASSEMBLY (Black) (5.00 In.) | 1 | This Part is No Longer Available | |||||
| 18 | 84-65999A10 | CABLE ASSEMBLY (Black) (6.00 In.) | 1 | ||||||
| 18 | 84-65999A6 | WIRE ASSEMBLY (Black) (12.00 In.) | 1 | This Part is No Longer Available | |||||
| 19 | 84-79139A9 | CABLE ASSEMBLY, Battery (Red) (Positive) | 1 | This Part is No Longer Available | |||||
| 19 | 84-79138A1 | CABLE ASSEMBLY (Black) (Negative) | 1 | This Part is No Longer Available | |||||
| 20 | 88-79023T90 | FUSE ASSEMBLY, 90 Ampere | 1 | 88-79023A90 | |||||
| 21 | 88-79137 | BREAKER, Circuit | 1 | 88-791371 | This Part is No Longer Available | ||||
| 22 | 84-79148A1 | WIRE ASSEMBLY, Jumper, Jumper (Red) | 1 | This Part is No Longer Available | |||||
| 23 | 54-24836 | CLIP | 4 | ||||||
| 24 | 69205 | C WASHER | 4 | ||||||
| 25 | 10-35401 | SCREW, (#10 x 1.00), Wood | 4 |
