| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

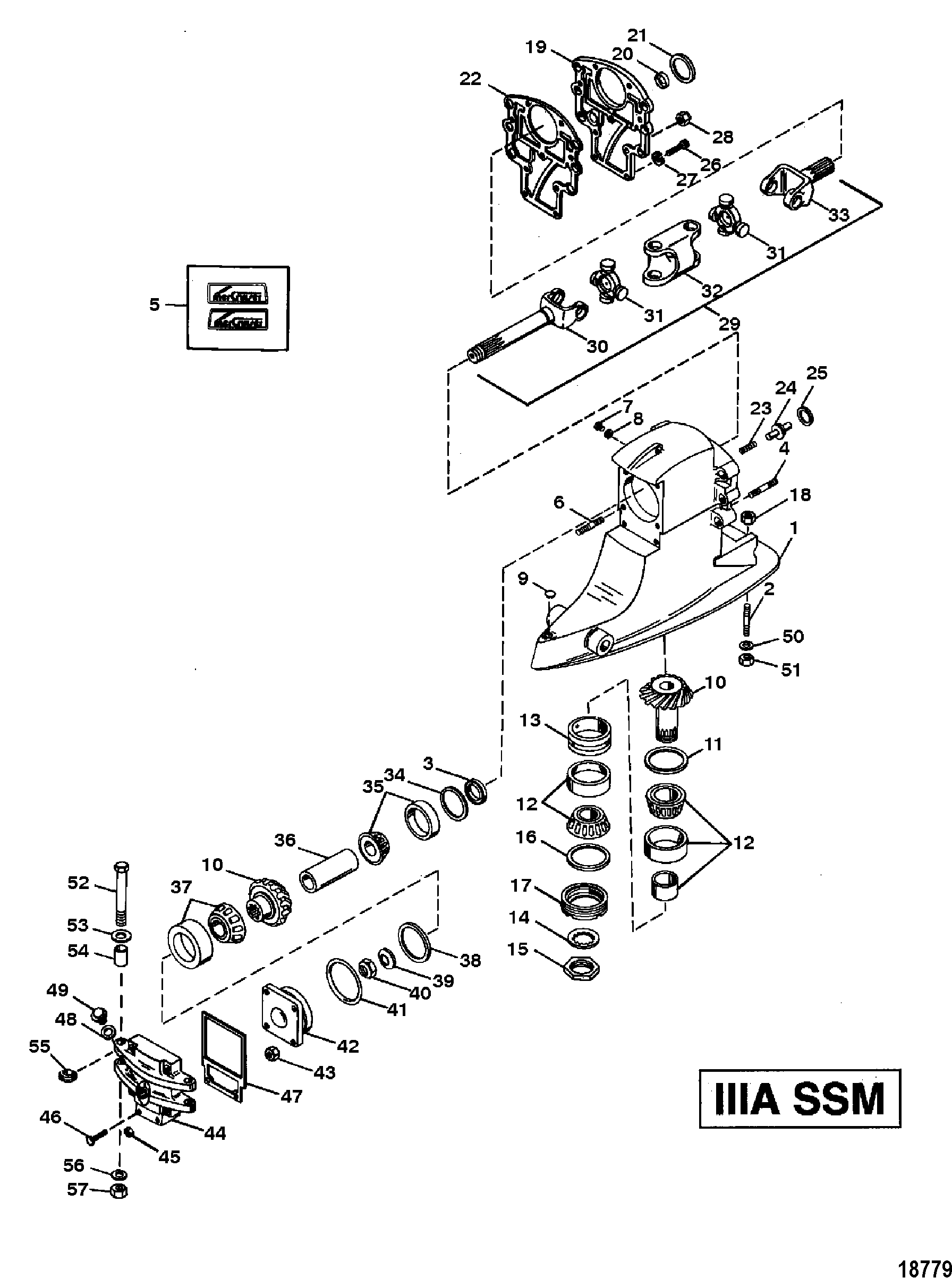

| 1 |
1567-817092A12 |
|
|
|
|
HOUSING ASSEMBLY, Driveshaft |
1 |
|
This Part is No Longer Available |
| 2 |
16-57985 |
|
|
|
|
STUD (2.810) |
6 |
|
|
| 3 |
26-38105 |
|
|
|
|
SEAL, Oil |
1 |
|
1 |
| 4 |
16-57932 |
|
|
|
|
STUD, (.375-16/.375-24 x 1.750) |
7 |
|
|
| 5 |
37-14489A90 |
|
|
|
|
DECAL SET |
1 |
|
1 |
| 6 |
16-57984 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.380) |
2 |
|
|
| 6 |
16-57983 |
|
|
|
|
STUD (.437-14 x 2.875) |
2 |
|
|
| 7 |
22-8M0058389 |
|
|
700-21731 |
525-22-8M0058389 |
SCREW, Magnetic, Vent (.375-16) |
1 |
22-67892 |
1 |
| 8 |
12-191833 |
|
|
|
525-12-191833 |
WASHER, Fiber |
1 |
12-19183 |
1 |
| 9 |
19-47579 |
|
|
700-21890 |
|
PLUG |
1 |
|
|
| 10 |
43-818653A1 |
|
|
|
|
GEAR SET (Pinion and Drive) |
1 |
|
This Part is No Longer Available (1.00:1 RATIO) |
| 10 |
43-818654A1 |
|
|
|
|
GEAR SET (Pinion and Drive) |
1 |
|
This Part is No Longer Available (1.18:1 RATIO) |
| 10 |
43-818655A1 |
|
|
|
|
GEAR SET (Pinion and Drive) |
1 |
|
This Part is No Longer Available (1.25:1 RATIO) |
| 10 |
43-847823A1 |
|
|
|
|
GEAR SET (Pinion and Drive) |
1 |
|
This Part is No Longer Available (1.31:1 RATIO) New forgings from Mercury prints |
| 10 |
43-818656A2 |
|
|
|
|
GEAR SET (Pinion and Drive) |
1 |
43-818656A1 |
This Part is No Longer Available (1.33:1 RATIO) |
| 10 |
43-818657A1 |
|
|
|
|
GEAR SET (Pinion and Drive) |
1 |
|
This Part is No Longer Available (1.40:1 RATIO) |
| 10 |
43-847825A1 |
|
|
|
|
GEAR SET (Pinion and Drive) |
1 |
|
This Part is No Longer Available (1.44:1 RATIO) |
| 10 |
43-848150T1 |
|
|
|
|
GEAR SET (Pinion and Drive) |
1 |
43-848150A1 |
This Part is No Longer Available (1.50:1 RATIO) |
| 11 |
15-19032A1 |
|
|
|
|
SHIM SET |
AR |
|
(.002 THRU .035 THICK) |
| 11 |
15-19032A2 |
|
|
|
|
SHIM SET |
AR |
|
(.036 THRU .048 THICK) |
| 12 |
31-19182T2 |
|
|
|
|
BEARING ASSEMBLY, Roller |
1 |
31-19182A2 |
1 |
| 13 |
23-18998 |
|
|
|
|
SPACER |
1 |
|
|
| 14 |
12-817303 |
|
|
|
|
WASHER |
1 |
|
no longer made, limited availability 1 |
| 15 |
p-43821-nut-mercruiser-11-19039.aspx |
|
|
|
|
NUT (Special) |
1 |
|
1 |
| 16 |
23-18997 |
|
|
|
|
SPACER |
1 |
|
|
| 17 |
816230 |
|
|
|
|
RETAINER |
1 |
|
This Part is No Longer Available |
| 18 |
11-47302 |
|
|
|
|
NUT, (.562-18) Stainless Steel |
1 |
|
|
| 19 |
58619A1 |
|
|
|
|
COVER ASSEMBLY (Front) |
1 |
|
This Part is No Longer Available |
| 20 |
26-48443 |
|
|
|
|
SEAL, Oil |
1 |
|
1 |
| 21 |
25-26722 |
|
|
700-82240 |
|
O-RING |
1 |
|
1 |
| 22 |
27-48407 |
|
|
|
|
GASKET |
1 |
|
|
| 23 |
24-48442 |
|
|
|
|
SPRING |
1 |
|
|
| 24 |
20-48219 |
|
|
|
|
CHECK VALVE |
1 |
|
|
| 25 |
25-48452 |
|
|
|
|
QUAD RING |
1 |
|
1 |
| 26 |
10-90042 |
|
|
|
|
SCREW, (.437-14 x 1.500) Stainless Steel |
2 |
|
no longer made, limited availability |
| 27 |
13-47659 |
|
|
|
|
LOCKWASHER, (.437) |
2 |
|
|
| 28 |
11-826709113 |
|
|
|
|
NUT, (.375-24) |
7 |
11-34863 |
|
| 29 |
44253A1 |
|
|
|
|
UNIVERSAL JOINT ASSEMBLY |
1 |
|
|
| 30 |
44271 |
|
|
|
|
YOKE (Gear End) |
1 |
|
This Part is No Longer Available |
| 31 |
48153 |
|
|
|
|
CROSS AND BEARING ASSEMBLY |
2 |
|
|
| 32 |
63575T |
|
|
|
|
SOCKET |
1 |
63575 |
This Part is No Longer Available |
| 33 |
44253 |
|
|
|
|
YOKE (Coupling End) |
1 |
|
This Part is No Longer Available |
| 34 |
15-36178A02 |
|
|
|
|
SHIM SET |
AR |
15-36178A1 |
|
| 35 |
31-39908T1 |
|
|
|
|
BEARING ASSEBMLY, Tapered Roller |
1 |
31-39908A1 |
1 |
| 36 |
8M0050924 |
|
|
|
|
SPACER |
1 |
23-47305 |
|
| 37 |
31-34804T3 |
|
|
|
|
BEARING ASSEMBLY, Tapered Roller |
1 |
31-34804A3 |
1 |
| 38 |
15-34822A1 |
|
|
|
|
SHIM SET |
AR |
|
|
| 39 |
12-53212 |
|
|
|
|
WASHER |
1 |
|
1 |
| 40 |
11-82671327 |
|
|
|
|
NUT (1.00-14) |
1 |
11-90068T |
1 |
| 41 |
25-47291 |
|
|
|
|
O-RING |
1 |
|
1 |
| 42 |
47314 |
|
|
|
|
RETAINER |
1 |
|
This Part is No Longer Available |
| 43 |
v |
|
|
|
|
NUT, (.437-20) |
4 |
|
1 |
| 44 |
951061 |
|
|
|
|
BRACKET, Back Cover |
1 |
|
This Part is No Longer Available |
| 45 |
11-35053 |
|
|
|
|
NUT, (.437-20) |
4 |
|
1 |
| 46 |
10-842787 |
|
|
|
|
SCREW, (.375-16 x 2.00) |
2 |
10-47432 |
|
| 47 |
27-53058 |
|
|
|
|
GASKET |
1 |
|
1 |
| 48 |
25-90196 |
|
|
|
|
O-RING, (.921 x .139) |
1 |
|
1 |
| 49 |
22-320181 |
|
|
|
|
PLUG |
1 |
22-32018 |
1 |
| 50 |
12-180451 |
|
|
|
|
WASHER |
6 |
|
|
| 51 |
11-47302 |
|
|
|
|
NUT, (.562-18) Stainless Steel |
6 |
|
|
| 52 |
10-677551 |
|
|
|
|
SCREW, (.500-20 x 4.500) |
2 |
|
|
| 53 |
12-540121 |
|
|
|
|
WASHER, (.530 x .880 x .104) 630 Stainless Steel |
2 |
|
|
| 54 |
23-85322 |
|
|
|
|
SPACER |
2 |
|
This Part is No Longer Available |
| 55 |
23-840229 |
|
|
|
|
SPACER |
2 |
23-85321 |
|
| 56 |
12-24501 |
|
|
|
|
WASHER |
2 |
|
|
| 57 |
11-35000 |
|
|
|
|
NUT, (.500-20) Stainless Steel |
2 |
|
|
| - |
1567-817092T11 |
|
|
|
|
REBUILD KIT |
1 |
1567-817092A11 |
This Part is No Longer Available |
