SSM II-III-IV-V 1982-1995 - All Serials - Gear Housing Assembly (Driveshaft) (II SSM)

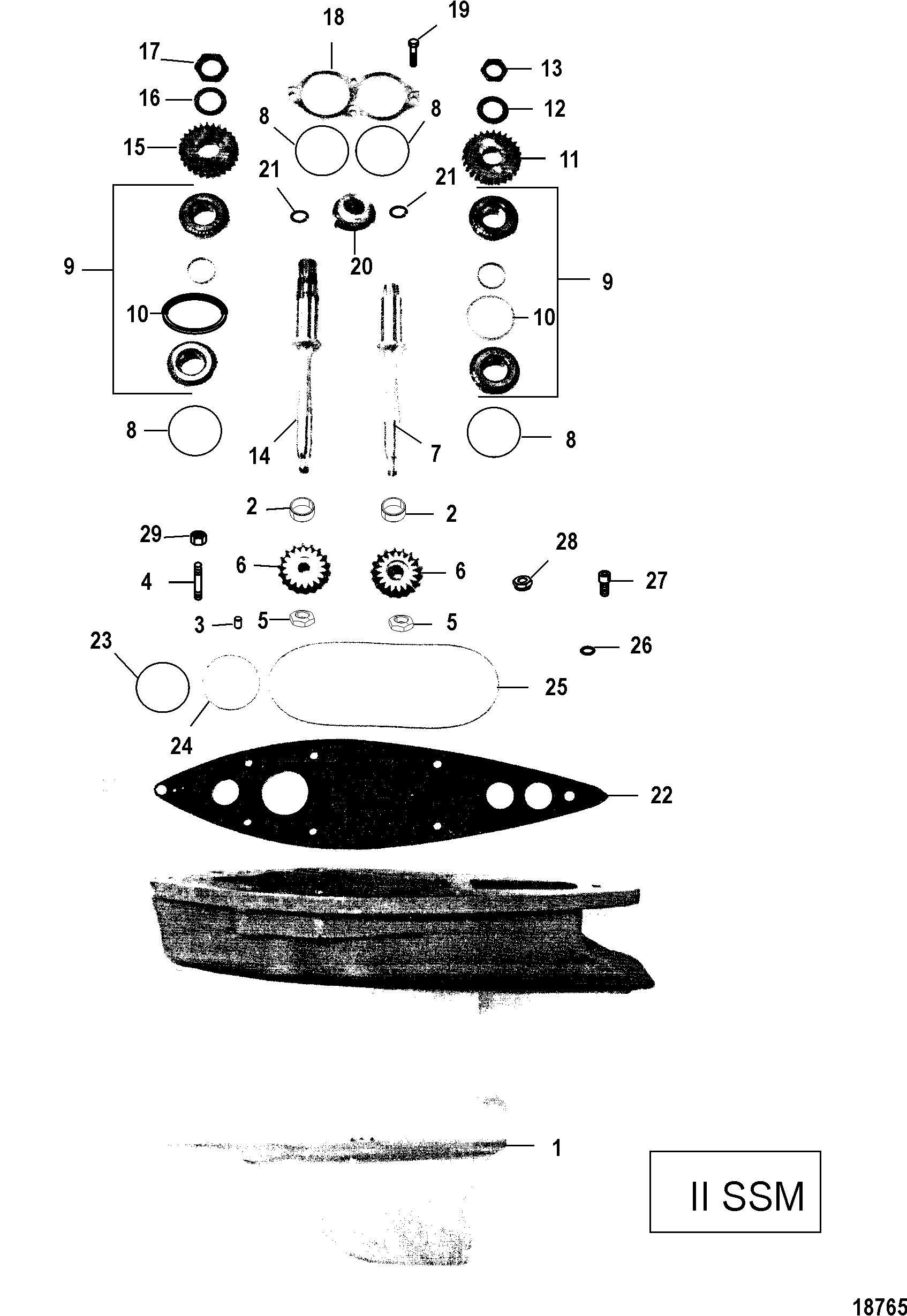

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1633-5455A5         GEAR HOUSING ASSEMBLY 1   This Part is No Longer Available (BASIC)
2 31-68460         BEARING, Needle 2
1
3 17-25104         PIN, Dowel 2   This Part is No Longer Available
4 16-54674         STUD, (.437-14/.437-20 x 2.250) 1

5 11-35921   676-9-78103 700-11190   NUT, (.625-18) 2
1
6 43-68066A1         GEAR SET 1   This Part is No Longer Available (PINION AND DRIVE) (RH - 1.00:1 RATIO)
6 43-68060A2         GEAR SET 1   This Part is No Longer Available (PINION AND DRIVE) (LH - 1.00:1 RATIO)
6 43-95041A1         GEAR SET 1   This Part is No Longer Available (PINION AND DRIVE) (RH - 1.125:1 RATIO)
6 43-95040A2         GEAR SET 1   This Part is No Longer Available (PINION AND DRIVE) (LH - 1.125:1 RATIO)
7 45-99159         DRIVESHAFT 1   This Part is No Longer Available
8 15-39808A1         SHIM ASSEMBLY AR
No longer made, limited availability
9 31-35990A2         BEARING ASSEMBLY, Roller 2

10 23-39816         SPACER 2

11 43-68081         GEAR, Spur (Rear) 1   This Part is No Longer Available
12 12-56042         WASHER 1
1
13 11-53062         NUT (Special) 1
1
14 45-99158         DRIVESHAFT 1   This Part is No Longer Available
15 43-68079         GEAR, Spur (Front) 1   This Part is No Longer Available
16 12-39820         WASHER 1
1
17 11-53063         NUT (Special) 1
1
18 68077         PLATE 1   This Part is No Longer Available
19 10-35386         SCREW, (.312-18 x 1.00) 4
1
20 68075A1         COUPLING ASSEMBLY 1   This Part is No Longer Available
21 53-68076         RING, Retaining 2   This Part is No Longer Available
22 68072         PLATE 1   This Part is No Longer Available
23 25-54029         O-RING, (2.800 x .103) 1
1
24 25-54030         O-RING, (2.987 x .103) 1
1
25 25-68073         O-RING 1   This Part is No Longer Available 1
26 25-68074         O-RING 1   This Part is No Longer Available 1
27 10-47557         SCREW, (.500-13 x 1.500) 1   This Part is No Longer Available No longer made, limited availability
28 11-35053         NUT, (.437-20) 2
1
29 11-34933   676-9-72004     NUT, (.437-20) Stainless Steel 5
1
- 1633-5455T13         REBUILD KIT 1 1633-5455A13 This Part is No Longer Available
