| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

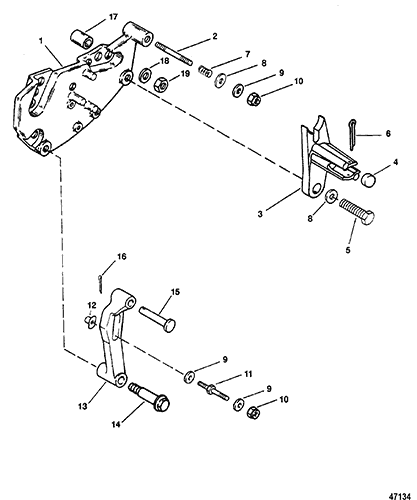

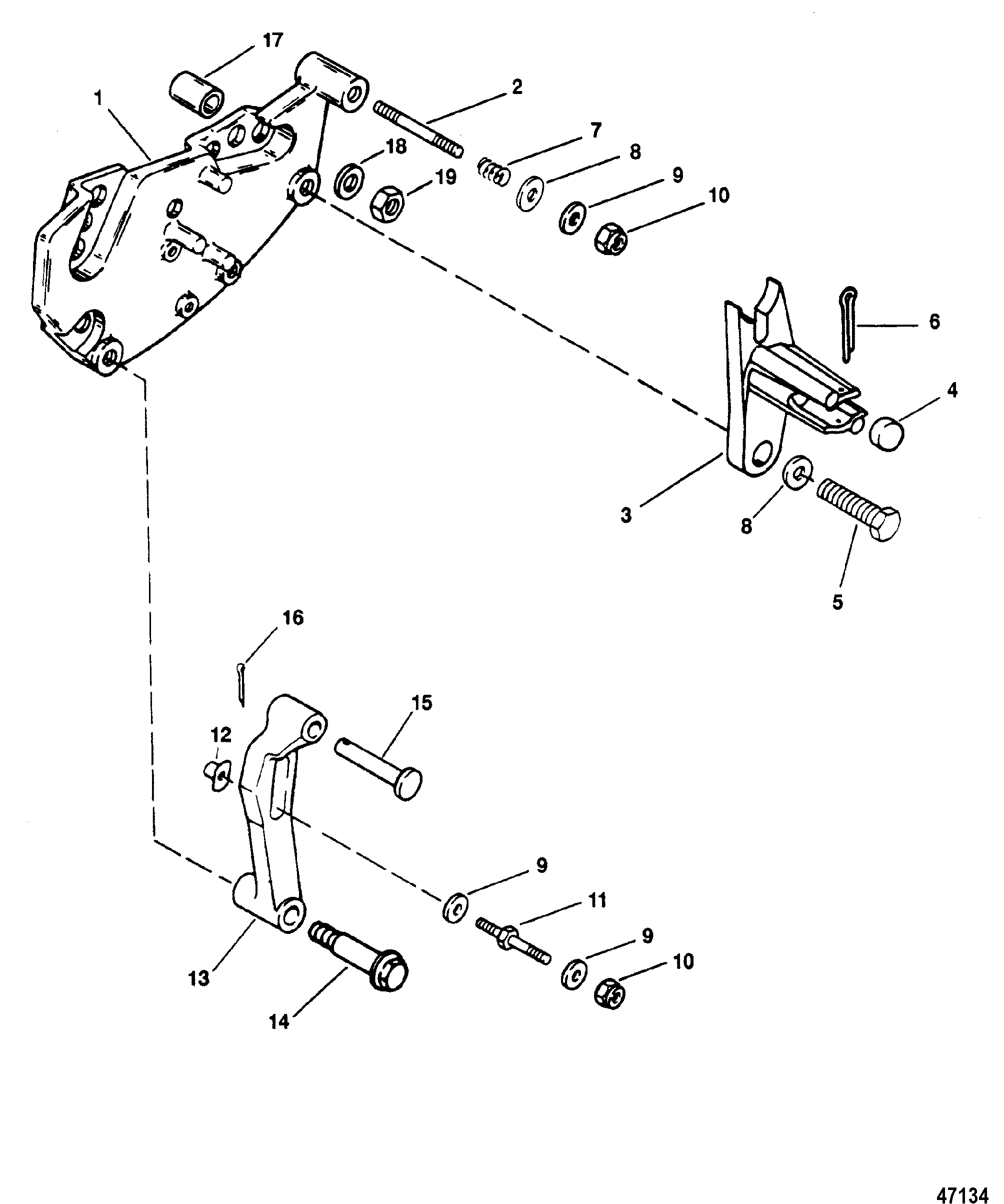

| 1 |
807962A15 |
|
|
|
|
BRACKET ASSEMBLY |
1 |
99237A10 |
|
| 2 |
16-865154A02 |
|
|
|
|
STUD, (.250-20/.250-28 x 2.120) |
1 |
16-987981 |
|
| 3 |
865434A02 |
|
|
|
|
RETAINER |
1 |
123811 |
|
| 4 |
23-98828 |
|
|
|
|
SPACER |
1 |
|
|
| 5 |
10-53167 |
|
|
|
|
SCREW, (.312-18 x .880) |
1 |
|
|
| 6 |
18-328571 |
|
|
|
|
COTTER PIN |
1 |
18-32857 |
|
| 7 |
24-98880 |
|
|
|
|
SPRING |
1 |
|
|
| 8 |
12-56720 |
|
|
|
|
WASHER, (.330 x .750 x .060) Stainless Steel |
2 |
|
|
| 9 |
12-35462 |
|
|
|
|
WASHER, (.2656 x .625 x .0625) Stainless Steel |
4 |
|
|
| 10 |
11-8267119 |
|
|
|
|
NUT, (.250-28) |
2 |
11-13438 |
|
| 11 |
16-96112 |
|
|
|
|
STUD, (.250-28 x 2.00), Throttle Cable Anchor |
1 |
|
|
| 12 |
11-63341 |
|
|
|
|
TEE NUT |
1 |
|
|
| 13 |
863911A12 |
|
|
|
|
LEVER |
1 |
138981 |
|
| 14 |
10-13743 |
|
|
|
|
SCREW, (.312-18 x 1.843), Shoulder |
1 |
|
|
| 15 |
17-68402 |
|
|
|
|
PIN, (.250 x 1.13) |
1 |
|
|
| 16 |
18-210711 |
|
|
|
|
COTTER PIN |
1 |
18-21071 |
|
| 17 |
23-92152T |
|
|
|
|
SPACER, (.27 x .75 x .38) |
3 |
23-92152 |
|
| 18 |
12-35462 |
|
|
|
|
WASHER, (.2656 x .625 x .0625) Stainless Steel |
3 |
|
|
| 19 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
3 |
|
|
