7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Alternator (Mando)

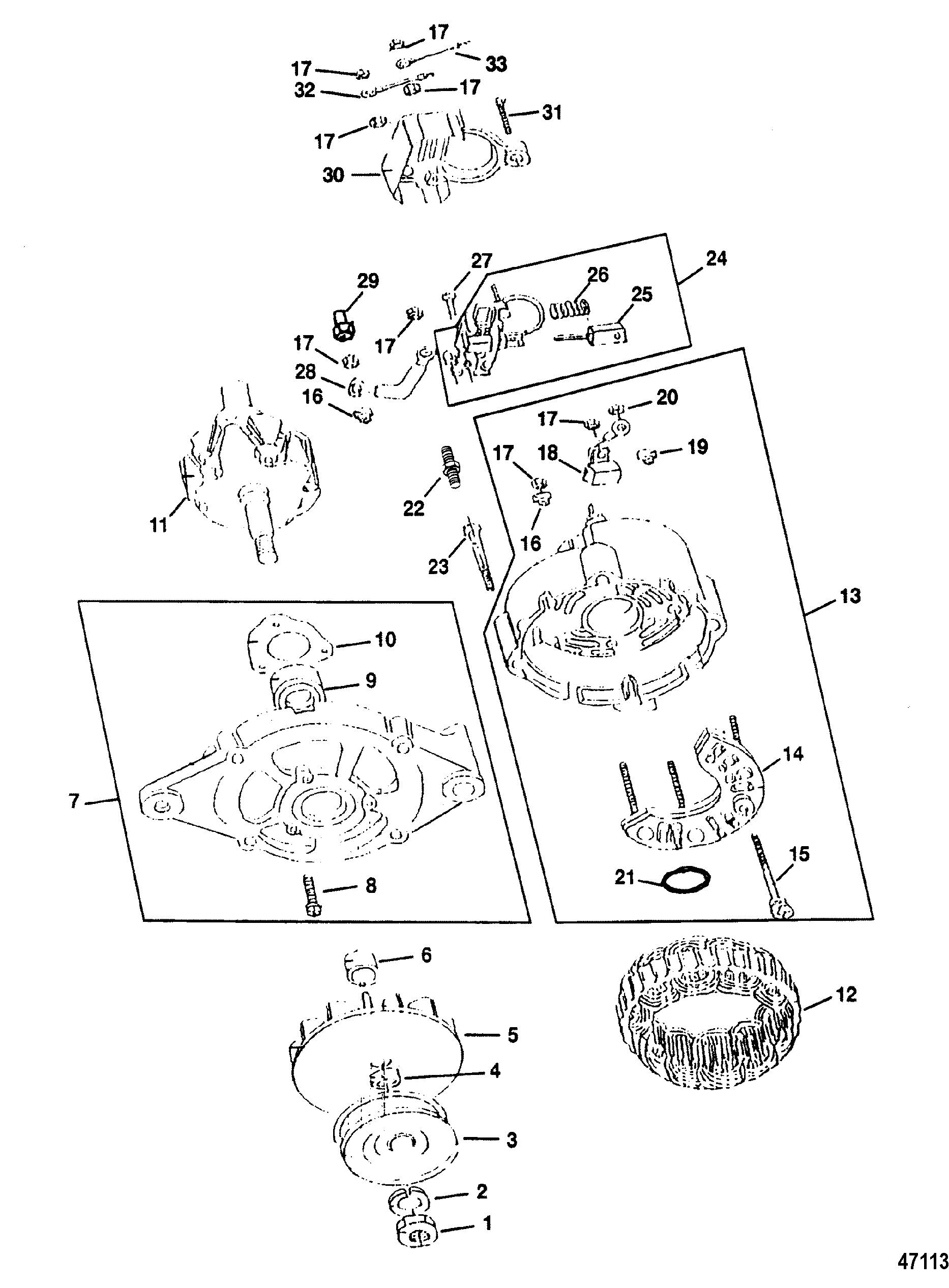

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 805884T
676-9-19103
620-3159M ALTERNATOR 1
1 11-809136



NUT 1

2 13-809137



LOCKWASHER 1
3 809134



PULLEY 1

4 23-809135



SPACER 1
5 809139



FAN ASSEMBLY 1
6 23-809140



SPACER 1
7 809151



BRACKET ASSEMBLY 1
8 10-809154



SCREW 3
9 30-809153



BEARING 1
10 809152



RETAINER 1    This Part is no longer available
11 809150



ROTOR 1   This Part is no longer available
12 809133T



STATOR 1 809133
13 809155



BRACKET ASSEMBLY 1   This Part is no longer available
14 809162



RECTIFIER 1
15 10-809160



SET SCREW 1   This Part is no longer available
16 809146



MOLD 2   This Part is no longer available
17 11-809143



NUT 8   This Part is no longer available
18 809161



CONDENSER 1
19 809158



MOLD 1
20 11-809157



NUT 1
21 25-809156



O-RING 1
22 10-809159



BOLT 1   This Part is no longer available
23 10-809138



BOLT 4   This Part is no longer available
24 811883T



REGULATOR ASSEMBLY 1 809163
25 811884



BRUSH 2 809164
26 24-809165



SPRING 2
27 10-809141



SCREW 2   This Part is no longer available
28 809142



TERMINAL 1   This Part is no longer available
29 809149



CAP 2
30 809144



COVER 1   This Part is no longer available
31 10-809145



SET SCREW 1   This Part is no longer available
32 84-809148



LEAD WIRE 1   This Part is no longer available
33 84-809147



LEAD WIRE 1   This Part is no longer available
