| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

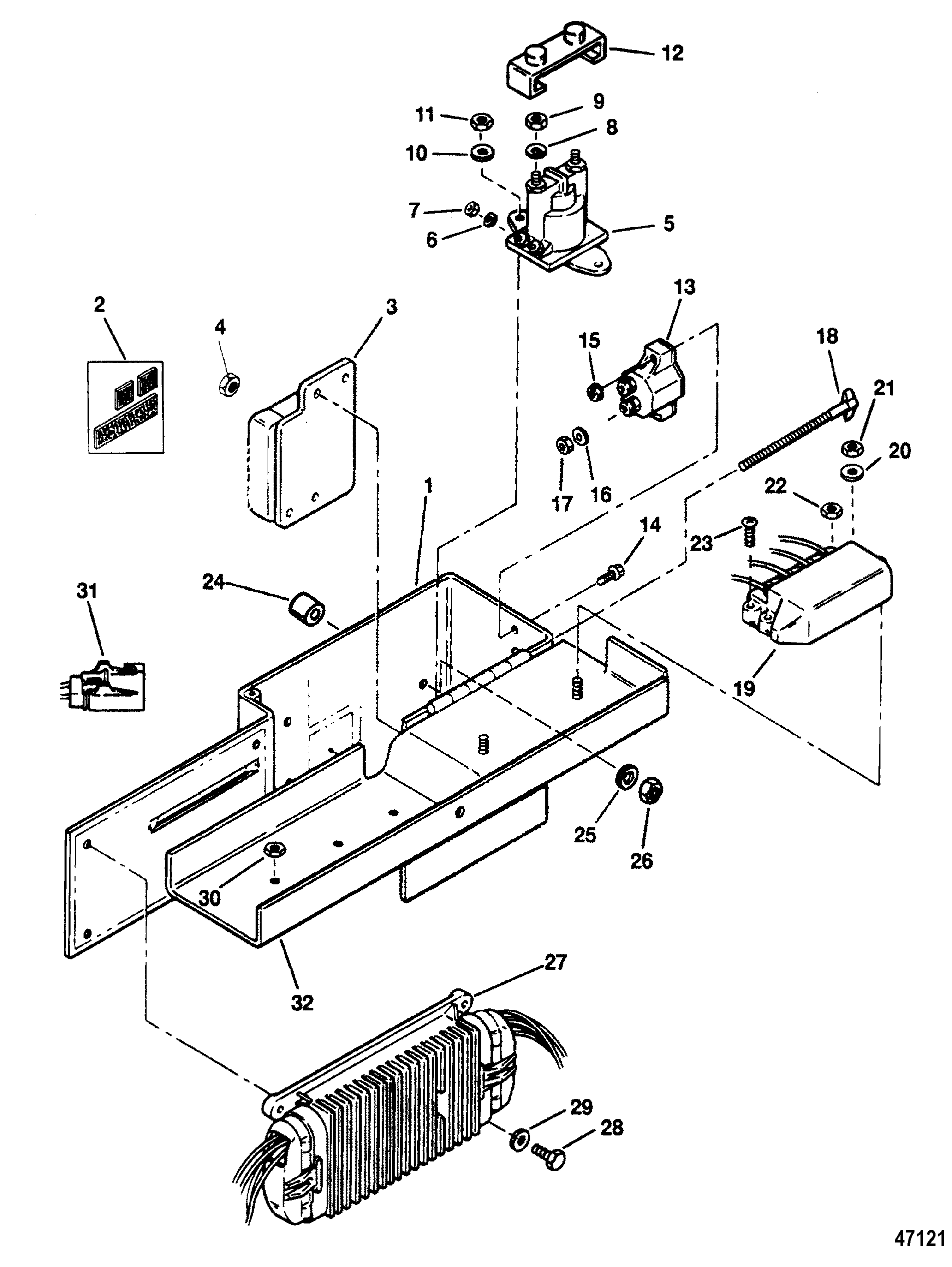

| 1 |
807323A5 |
|
|
|
|
BOX ASSEMBLY, Electrical Components |
1 |
|
|
| 2 |
806762A1 |
|
|
|
|
VELCRO KIT |
1 |
|
|
| 3 |
805443 |
|
|
|
|
MODULE ASSEMBLY |
1 |
805443T |
This Part is no longer available |
| 4 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
1 |
|
|
| 5 |
89-96054T |
|
|
700-72390 |
|
SOLENOID ASSEMBLY, Starter |
1 |
89-96054 |
|
| 6 |
13-26995 |
|
|
|
|
LOCKWASHER, (#8) Stainless Steel (#8) |
1 |
|
|
| 7 |
11-26419 |
|
|
|
|
NUT, (#8-32) Brass (8-32) |
2 |
|
|
| 8 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel (1/4 IN.) |
2 |
|
|
| 9 |
11-94330 |
|
|
|
|
NUT, (.250-20) Brass (1/4-20) |
2 |
|
|
| 10 |
12-35462 |
|
|
|
|
WASHER, (.2656 x .625 x .0625) Stainless Steel |
2 |
|
|
| 11 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
2 |
|
|
| 12 |
85-97861 |
|
|
|
|
INSULATOR |
1 |
|
|
| 13 |
88-11178A01 |
|
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-11178 |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 14 |
10-45862 |
|
|
|
|
SCREW, (#10-32 x .875) |
2 |
|
|
| 15 |
11-61356 |
|
|
|
|
NUT, (#10-32) Reduced Hex |
2 |
|
|
| 16 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 17 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 18 |
805615A2 |
|
|
|
|
THUMB SCREW ASSEMBLY |
1 |
|
This Part is no longer available |
| 19 |
42600A09 |
|
|
|
|
CONTROLLER ASSEMBLY |
1 |
42600A3 |
|
| 20 |
12-56681 |
|
|
|
|
WASHER, (.203 x .500 x .032) |
3 |
|
|
| 21 |
11-805562 |
|
|
|
|
NUT, (#10-24) |
3 |
|
11-68219/tr>
|
| 22 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
3 |
|
|
| 23 |
10-62568 |
|
|
|
|
SCREW, (#10-16 x .375) |
1 |
|
|
| 24 |
23-92152T |
|
|
|
|
SPACER, (.27 x .75 x .38) |
3 |
23-92152 |
|
| 25 |
12-35462 |
|
|
|
|
WASHER, (.2656 x .625 x .0625) Stainless Steel |
3 |
|
|
| 26 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
3 |
|
|
| 27 |
807210T5 |
|
|
|
|
ECM, Engine Control Module |
1 |
807210T4 |
|
| 28 |
10-76596 |
|
|
|
|
SCREW, (.250-20 x 1.250) (1-1/4 IN.) |
4 |
|
|
| 29 |
12-20533 |
|
|
|
|
WASHER |
4 |
|
|
| 30 |
11-805562 |
|
|
|
|
NUT, (#10-24) |
3 |
|
|
| 31 |
88-804642 |
|
|
|
|
FUSE, 15 Ampere (15 AMP) |
1 |
805704 |
No longer made, limited availability |
| 31 |
88-804641 |
|
|
|
|
FUSE, 10 Ampere (10 AMP) |
1 |
805703 |
|
| 32 |
805439T3 |
|
|
|
|
LID, Electrical Box |
1 |
|
|
