| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

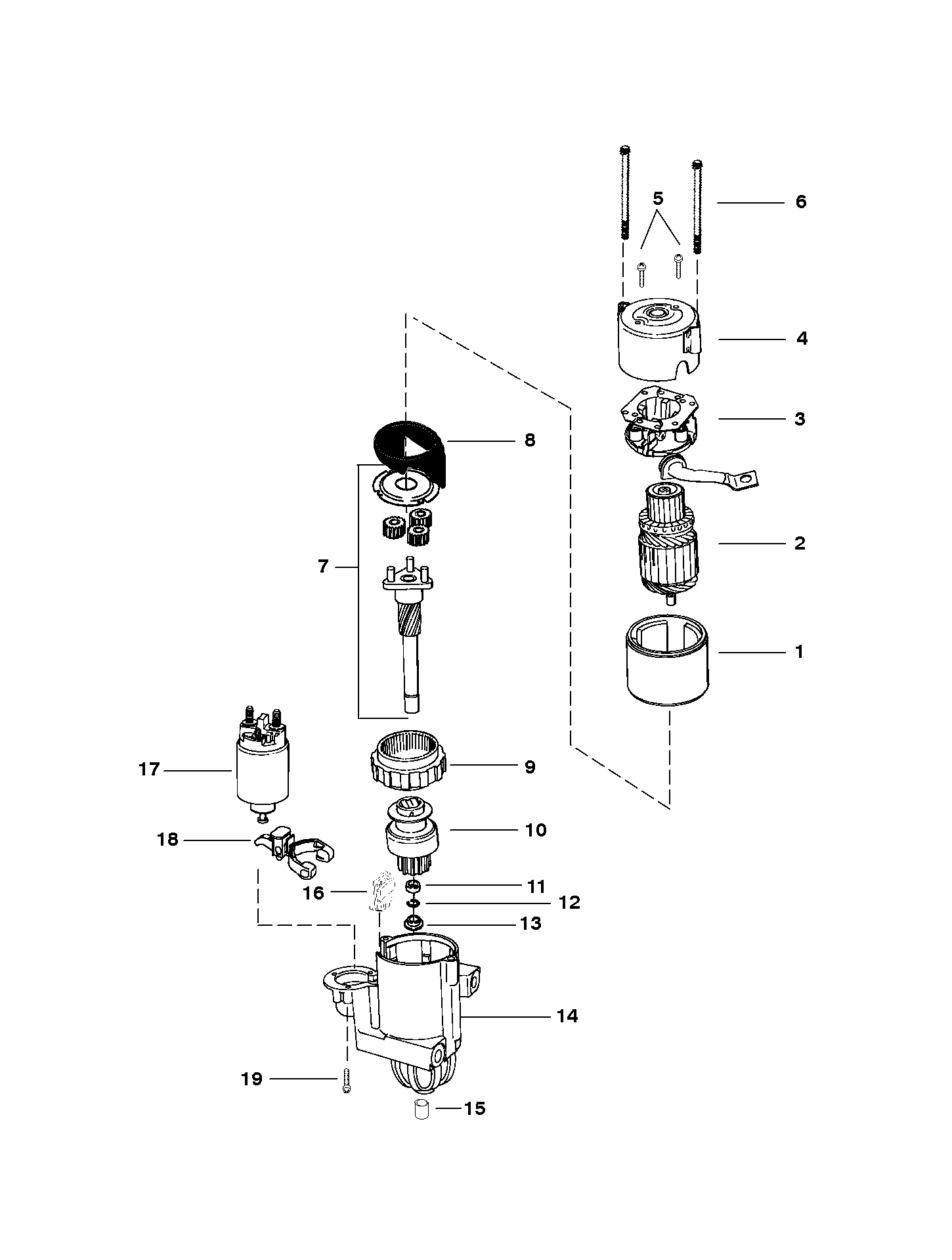

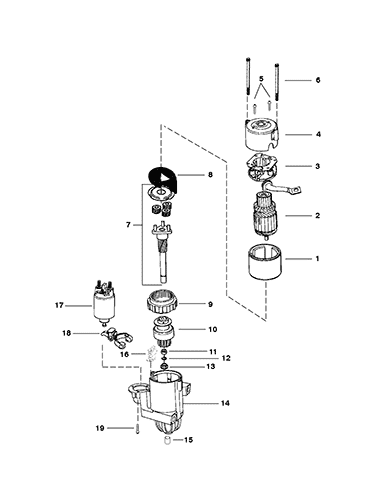

| 1 |
50-863007A1 |
|
|
|
|
STARTER ASSEMBLY |
1 |
50-806964A3 |
(BRAVO PLUG-IN MODELS) |
| 2 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, ARMATURE |
1 |
|
This Part is not sold separately 6 |
| 3 |
NSS |
|
|
|
|
BRUSH HOLDER AND SPRING |
1 |
|
This Part is not sold separately 6 |
| 4 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, FRAME |
1 |
|
This Part is not sold separately 6 |
| 5 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW |
2 |
|
This Part is not sold separately 6 |
| 6 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, BOLT-Thru |
2 |
|
This Part is not sold separately 6 |
| 7 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SHAFT AND GEAR |
1 |
|
This Part is not sold separately 6 |
| 8 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, GASKET |
1 |
|
This Part is not sold separately 6 |
| 9 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, GEAR |
1 |
|
This Part is not sold separately 6 |
| 10 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, DRIVE |
1 |
|
This Part is not sold separately 6 |
| 11 |
33291 |
|
|
|
|
COLLAR |
1 |
|
|
| 12 |
53-33290 |
|
|
|
|
RING-Retaining |
1 |
|
|
| 13 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, COLLAR-Thrust |
1 |
|
This Part is not sold separately 6 |
| 14 |
809459 |
|
|
|
|
HOUSING-Drive |
1 |
|
This Part is No Longer Available |
| 15 |
23-814476 |
|
|
|
|
BEARING |
1 |
|
This Part is No Longer Available |
| 16 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, GROMMET |
1 |
|
This Part is not sold separately 6 |
| 17 |
809463A1 |
|
676-9-15125 |
700-72450 |
|
SOLENOID |
1 |
|
|
| 18 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, LEVER |
1 |
|
This Part is not sold separately 6 |
| 19 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW |
3 |
|
This Part is not sold separately 6 |
