525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Driveshaft Extension Components (Bravo)

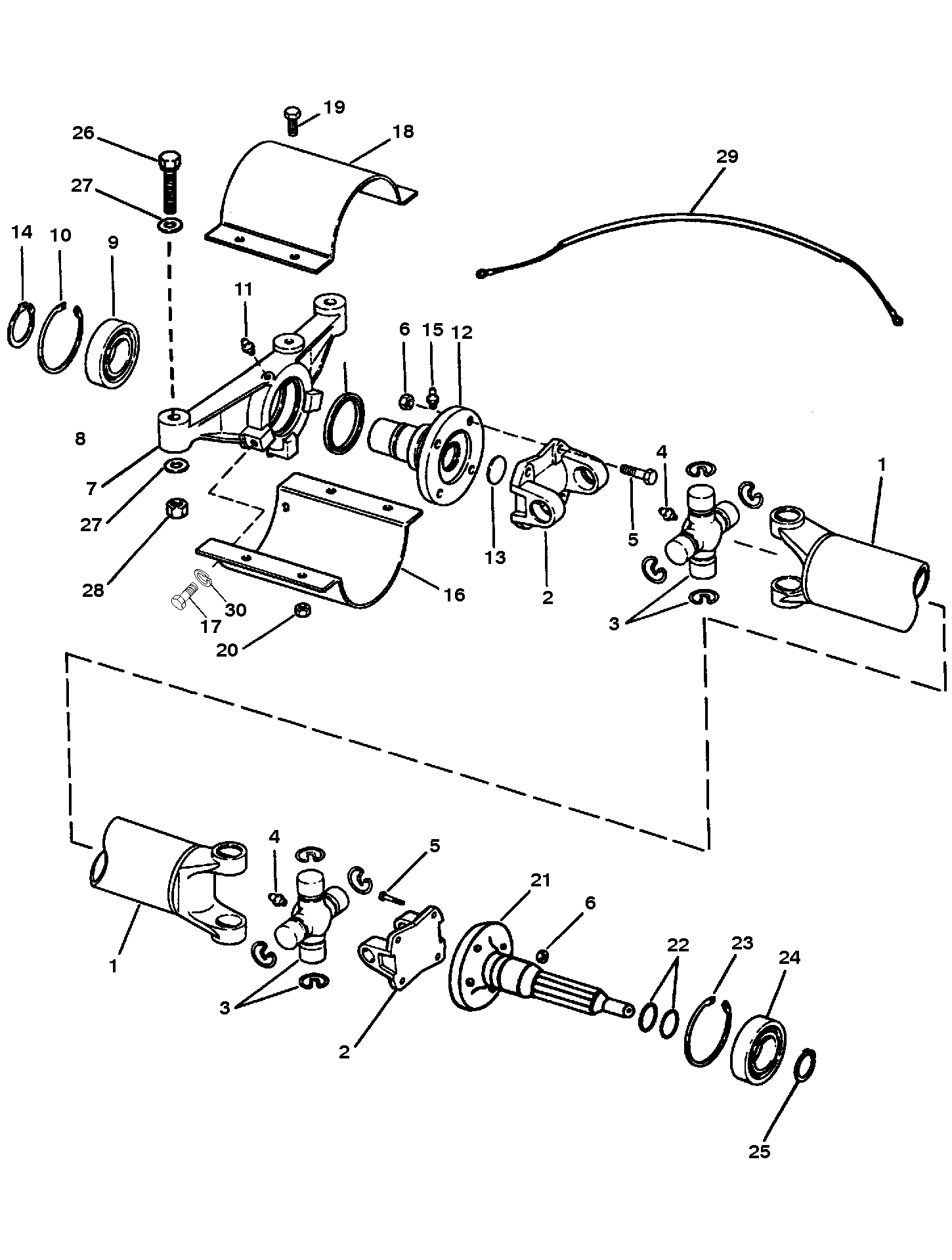

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 45-94819A3 | DRIVESHAFT ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 52504T | FLANGE-Yoke | 2 | ||||||
| 3 | 61221T | UNIVERSAL JOINT | 2 | 61221 | |||||
| 4 | 22-74036 | FITTING-Grease | 2 | ||||||
| 5 | 10-805159 | SCREW (.437-20 x 1.500) | 8 | ||||||
| 6 | 11-34933 | 676-9-72004 | NUT (.437-20) | 8 | |||||
| 7 | 817416A4 | SUPPORT ASSEMBLY-Bearing | 1 | 42304A2 | |||||
| 8 | 26-93924 | SEAL-Oil | 1 | ||||||
| 9 | 30-93944A2 | BEARING-Ball | 1 | 30-93944A1 | |||||
| 10 | 53-93914 | RING-Retaining | 1 | ||||||
| 11 | 22-74036 | FITTING-Grease | 1 | ||||||
| 12 | 93908A1 | SHAFT ASSEMBLY-Input | 1 | ||||||
| 13 | 19-93921 | PLUG-Expansion | 1 | ||||||
| 14 | 53-93915 | RING-Retaining | 1 | ||||||
| 15 | 22-74036 | FITTING-Grease | 1 | ||||||
| 16 | 93918A1 | SHIELD ASSEMBLY-Lower | 2 | ||||||
| 17 | 10-76926 | SCREW (.375-16 x .875) | 6 | ||||||
| 18 | 93919A1 | SHIELD ASSEMBLY-Upper | 2 | ||||||
| 19 | 10-76926 | SCREW (.375-16 x .875) | 8 | ||||||
| 20 | 11-68411 | NUT (.375-16) | 8 | No longer made, limited availability | |||||
| 21 | 93906A2 | SHAFT ASSEMBLY-Output | 1 | ||||||
| 22 | 25-25439 | O RING | 2 | ||||||
| 23 | 53-94104 | RING-Retaining | 1 | ||||||
| 24 | 879194A03 | BEARING-Ball | 1 | 30-62780A1 | 53 | ||||
| 25 | 53-94103 | RING-Retaining | 1 | No longer made, limited availability | |||||
| 26 | 10-57053 | SCREW (.500-20 x 4.500) | 2 | ||||||
| 27 | 12-42307 | WASHER (Spherical) | 4 | ||||||
| 28 | 11-898832 | NUT (.500-20) | 2 | 11-28040 | |||||
| 29 | 84-816943A1 | HARNESS ASSEMBLY | 1 | ||||||
| 30 | 13-35048 | LOCKWASHER (.375) | 6 |
