525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Flywheel Housing (Bravo Driveshaft Models)

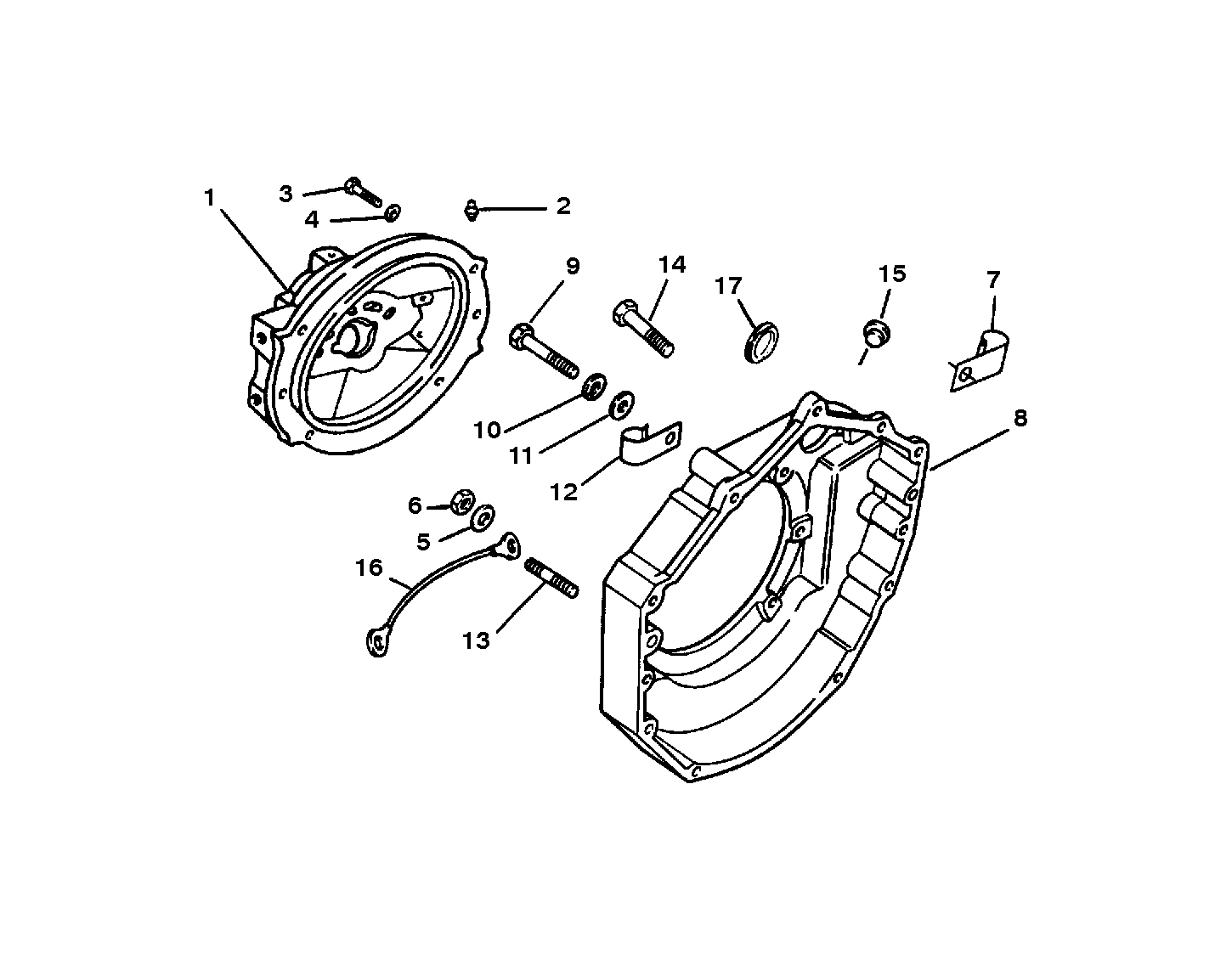

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 93911A4 | HOUSING ASSEMBLY | 1 | ||||||
| 2 | 22-74036 | FITTING-Grease | 2 | ||||||
| 3 | 10-47651 | SCREW (.437-14 x 1.500) | 6 | ||||||
| 4 | 13-32993 | LOCKWASHER (.437) | 6 | ||||||
| 5 | 12-20553 | WASHER | 5 | ||||||
| 6 | 11-32219 | NUT (.375-16) | 2 | ||||||
| 7 | 54-62494 | CLIP | 1 | ||||||
| 8 | 44187T | HOUSING-Flywheel | 1 | ||||||
| 9 | 10-37612 | SCREW (.375-16 x 1.250) | 1 | ||||||
| 9 | 10-47688 | SCREW (.375-16 x 2.750) | 2 | ||||||
| 10 | 13-35048 | LOCKWASHER (.375) | 7 | ||||||
| 11 | 12-20572 | WASHER (For Slot) | 1 | ||||||
| 12 | 54-78945 | J CLIP | 2 | ||||||
| 13 | 16-64066 | STUD (2.750 In.) | 2 | ||||||
| 14 | 10-34353 | SCREW (.375-16 x 1.00) | 1 | ||||||
| 15 | 19-38606 | PLUG | 1 | ||||||
| 16 | 84-62826A6 | CABLE ASSEMBLY (Black) | 2 | ||||||
| 17 | 19-12304 | PLUG-Timing Window | 2 |
