525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Intake Manifold And Supercharger

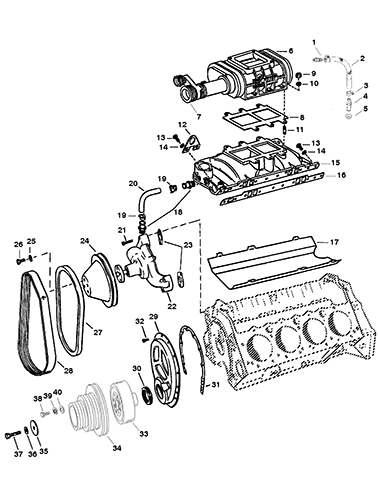

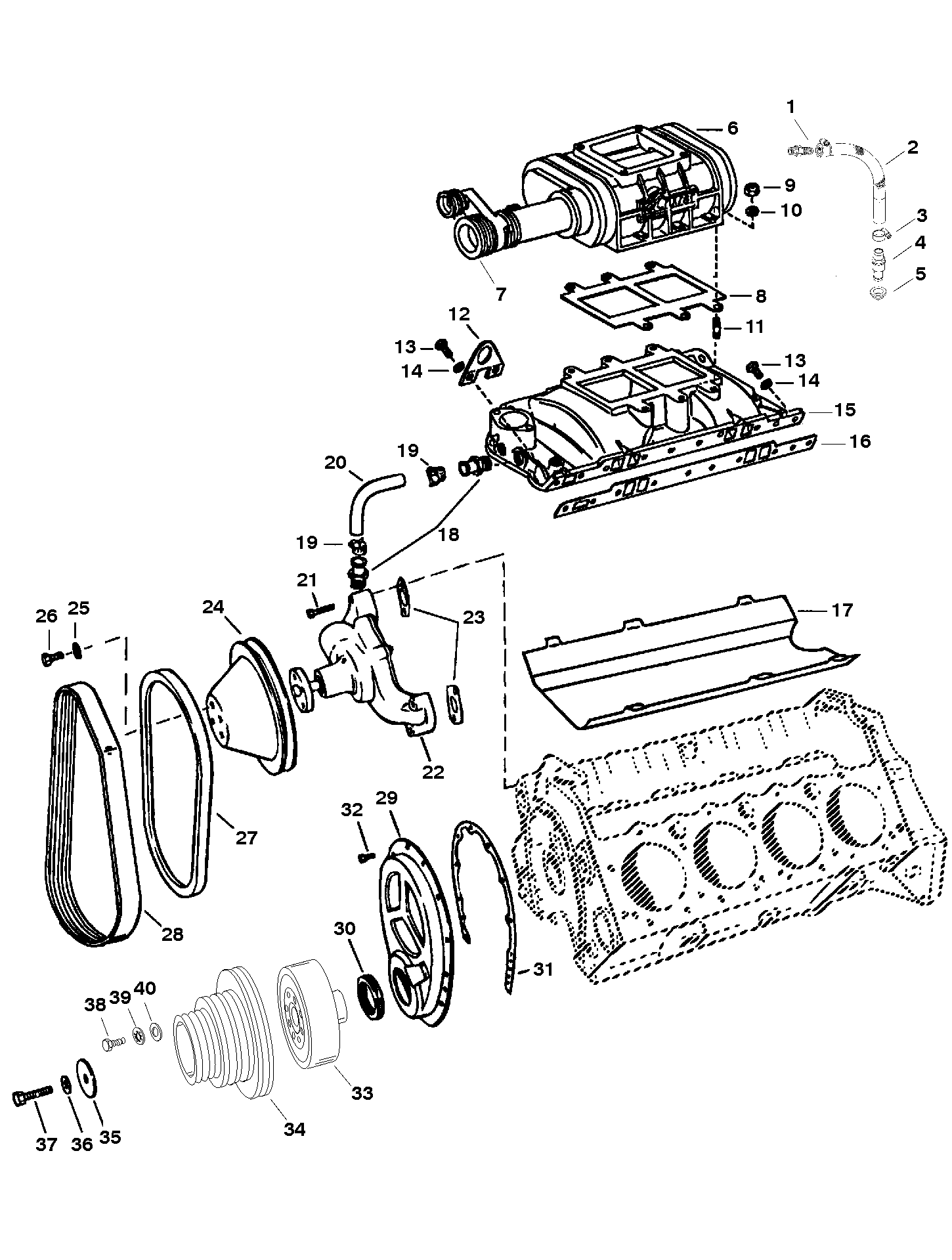

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-34982 | CONNECTOR | 1 | 22-32820 | |||||
| 2 | 32-823229A3 | HOSE ASSEMBLY (13.500 In.) | 1 | ||||||
| 3 | 54-815504104 | CLAMP | 1 | ||||||
| 4 | 848578 | VALVE | 1 | ||||||
| 5 | 25-811553 | GROMMET | 1 | 4 | |||||
| 6 | 817116A3 | SUPERCHARGER ASSEMBLY | 1 | ||||||
| 7 | 8477111 | PULLEY-Upper Driven | 1 | This Part is No Longer Available | |||||
| 8 | 27-8171181 | GASKET-Intake To Supercharger | 1 | 4 | |||||
| NS | 22-328022 | PLUG-Pipe (.125 Brass) | 1 | 22-328021 | 4,2 | ||||
| NS | 22-36382 | 700-21887 | PLUG-Pipe (.250 Brass) | 1 | 2 | ||||
| 9 | 11-82670911 | NUT (.312-24) | 6 | 11-35814 | |||||
| 10 | 12-70132 | WASHER | 6 | ||||||
| 11 | 16-848562 | STUD (.375 x 1.650) | 6 | ||||||
| 12 | 54-64628 | LIFTING EYE | 2 | 54-646281 | |||||
| 13 | 10-812567 | SCREW (.375-16 x 1.625) | 8 | ||||||
| 13 | 10-815687 | SCREW (.375-16 x 1.250) | 7 | ||||||
| 13 | 10-842787 | SCREW (.375-16 x 2.00) | 1 | 10-47432 | |||||
| 14 | 12-45175 | WASHER | 16 | ||||||
| 15 | 848582T02 | MANIFOLD-Intake | 1 | 8485821 | |||||
| 16 | 27-8181881 | GASKET-Intake Manifold | 2 | 27-818188 | 1,4 | ||||
| 17 | 845756T | SHIELD-Intake | 1 | 816073 | |||||
| 18 | 22-806242 | CONNECTOR-By Pass | 2 | ||||||
| 19 | 54-815504412 | CLAMP | 2 | ||||||
| 20 | 32-805987 | HOSE-By Pass | 1 | ||||||
| 21 | 10-805611 | SCREW (.375-16 x 1.750) | 4 | 10-811574 | |||||
| 22 | 8504541 | PUMP ASSEMBLY-Circulating Water | 1 | 811573 | |||||
| 23 | 27-49110 | GASKET-Water Pump | 2 | 4 | |||||
| 24 | 523491 | PULLEY-Circulating Pump | 1 | This Part is No Longer Available | |||||
| 25 | 13-39107 | 700-21496 | LOCKWASHER (.312) | 4 | |||||
| 26 | 10-47277 | SCREW (.312-24 x .750) | 4 | ||||||
| 27 | 57-816034Q | V BELT-Alternator Drive | 1 | 57-816034 | |||||
| 28 | 57-817113 | BELT-Serpentine | 1 | ||||||
| 29 | 811570 | COVER ASSEMBLY-Timing Chain | 1 | This Part is No Longer Available | |||||
| 30 | 26-8219471 | SEAL-Oil | 1 | 4 | |||||
| 31 | 27-811572 | GASKET | 1 | 4 | |||||
| 32 | 10-35366 | SCREW (.250-20 x .562) | 10 | ||||||
| 33 | 845625T2 | DAMPNER | 1 | 811556 | 1 | ||||
| 34 | 8219811 | PULLEY-Crankshaft | 1 | This Part is No Longer Available | |||||
| 35 | 12-49103 | WASHER | 1 | ||||||
| 36 | 13-14759 | LOCKWASHER | 1 | This Part is No Longer Available | |||||
| 37 | 10-845627 | SCREW | 1 | 10-811559 | |||||
| 38 | 10-72094 | SCREW (.375-16 x 3.750) | 3 | ||||||
| 39 | 13-35048 | LOCKWASHER (.375) | 3 | ||||||
| 40 | 12-20553 | WASHER | 3 | ||||||
| - | 27-827014A98 | GASKET SET-Engine Overhaul | 1 | 27-827014A96 | 1 |
