525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Power Steering Components

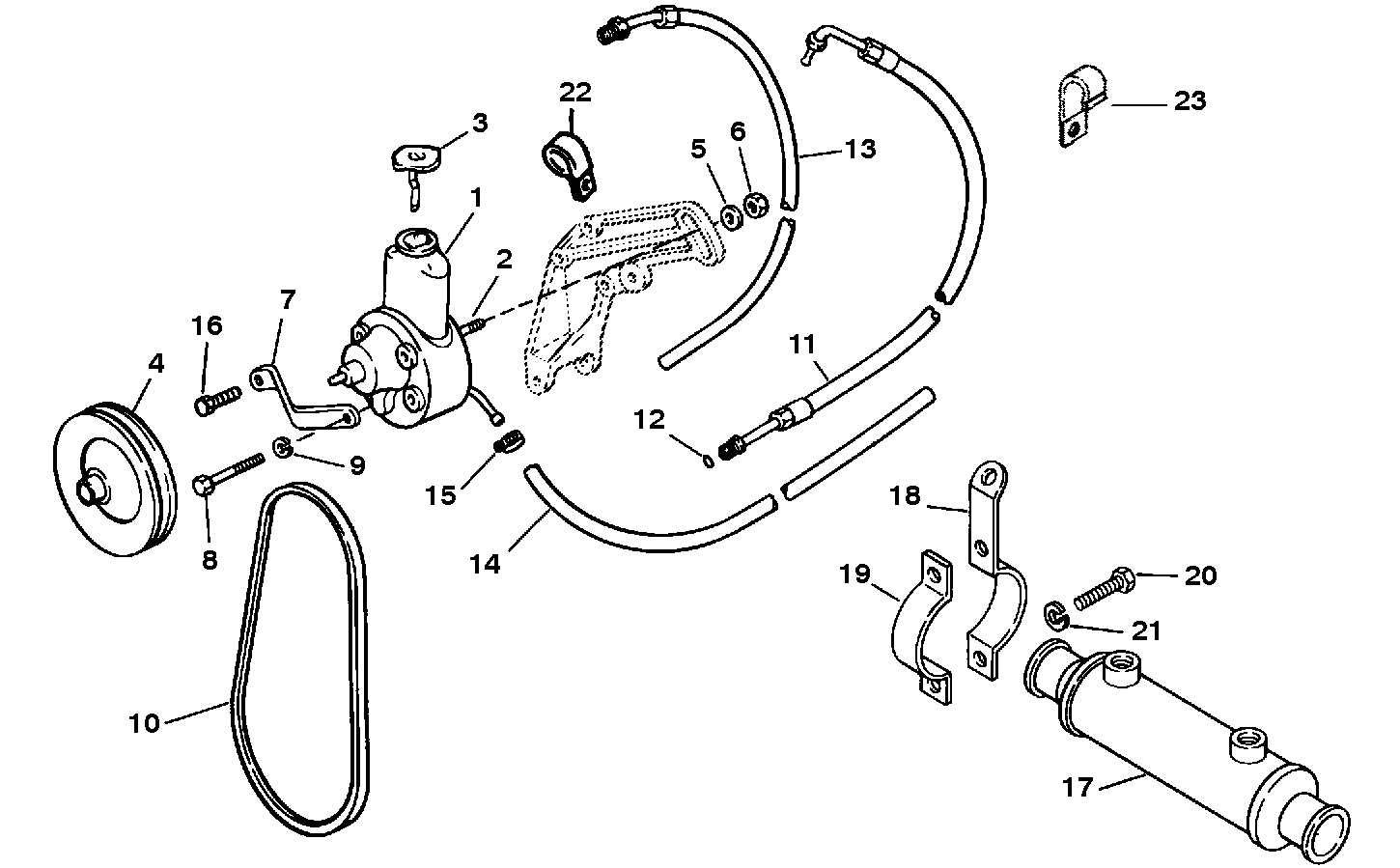

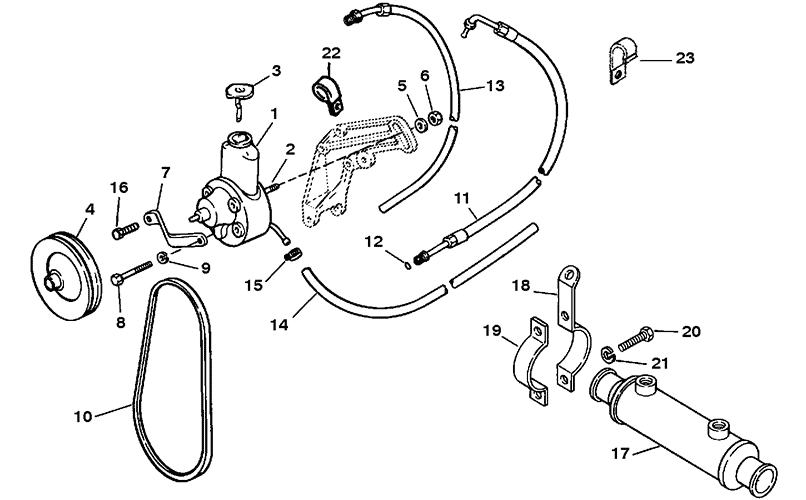

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A25 | PUMP ASSEMBLY-Power Steering (BLUE) | 1 | ||||||
| 2 | 16-41877 | STUD | 1 | ||||||
| 3 | 36-95805 | CAP | 1 | ||||||
| 4 | 738733 | PULLEY (BLUE) | 1 | This Part is No Longer Available | |||||
| 5 | 12-34567 | WASHER (BRACE SLOT) | 3 | ||||||
| 6 | 11-90517 | NUT | 2 | ||||||
| 7 | 847765 | BRACE | 1 | ||||||
| 8 | 10-40001188 | SCREW (M10 x 20) | 1 | ||||||
| 9 | 13-400248 | LOCKWASHER | 1 | ||||||
| 10 | 57-96834Q | V BELT | 1 | 57-96834 | |||||
| 11 | 32-98494 | HOSE (FITTINGS ON BOTH ENDS) | 1 | ||||||
| 12 | 25-89879 | O RING | 1 | ||||||
| 13 | 32-9884339 | HOSE (FITTINGS ON ONE END) | 1 | ||||||
| 14 | 32-8M0062341 | HOSE (53.00 In. Bulk) | 1 | 32-5251914 | (CUT AS REQ'D) | ||||
| 15 | 54-180761 | CLAMP | 3 | ||||||
| 16 | 10-825427 | SCREW (.437-14 x 1.250) | 1 | ||||||
| 17 | 99356A2 | COOLER ASSEMBLY-Oil-Power Steering | 1 | ||||||
| 18 | 63820F3 | BRACKET (LONG) | 1 | 638203 | |||||
| 19 | 563281 | BRACKET (SHORT) | 1 | ||||||
| 20 | 10-49668 | SCREW (.250-20 x .750) | 2 | ||||||
| 21 | 13-26992 | LOCKWASHER (.250) | 2 | ||||||
| 22 | 54-848183 | J CLIP-Power Steering Hose to Bracket | 1 | ||||||
| 23 | 54-42553 | J CLIP-Power Steering Hose to Valve Cover | 2 |
