454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Thermostat Housing New Design

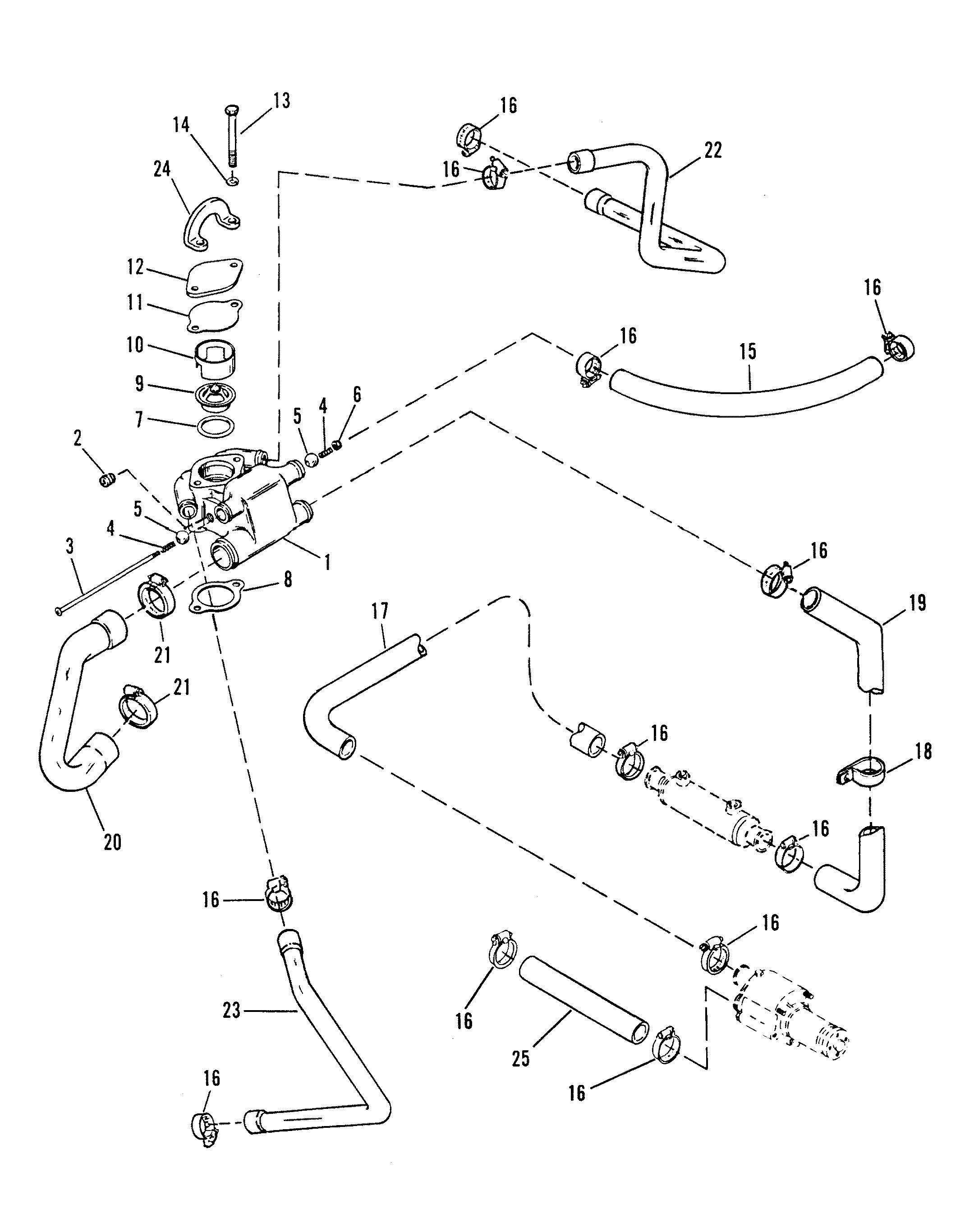

Section Drawing: (Hover or click to view larger)

Untitled Document <
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 16413A3         THERMOSTAT HOUSING 1 ¬† This Part is No Longer Available
2 22-32803     700-21894   PIPE PLUG 1
1 = USED WITH STAINLESS STEEL EXHAUST ELBOW
3 10-17989<         SCREW 1
4= [27-19315A88] GASKET SET, ENGINE OVERHAUL
4 24-75533         SPRING 2

5 30-98475         NYLON BALL 2

6 11-29488     700-21163   NUT 1
No longer made, limited availability
7 25-30224
676-9-76501 700-82250   O-RING 1
4
8 27-530451         GASKET 1
4
9 807252T1         THERMOSTAT (143 ) 1 59137
10 23-806922         SLEEVE 1 23-17495
11 27-331792         GASKET 2
4
12 17494A1         COVER 1

13 10-60410         SCREW 2

14 13-35048         LOCKWASHER 2

15 32-8M0062614         HOSE (STARBOARD/PORT) 2 32-3322070
15 32-8M0062614         HOSE (STARBOARD) 1 32-3322070 8
15 32-817433         HOSE (MOLDED - PORT) 1 ¬† This Part is No Longer Available¬†1
16 54-815504220         CLAMP AR 54-32780 1
17 32-18320         HOSE, OIL COOLER TO SEA PUMP 1

18 54-47715         CLIP 2

19 32-160111         HOSE, THERMOSTAT HOUSING TO OIL COOLER 1

20 32-897181         HOSE, THERMOSTAT HOUSING TO WATER PUMP 1 32-89718
21 54-815504232         CLAMP 2 54-87268
22 32-897491         HOSE, THERMOSTAT COVER (PORT) 1

23 32-897301         HOSE, THERMOSTAT COVER (STARBOARD) 1

24 12552         LIFTING EYE 1

25 32-865672079         HOSE, SEA PUMP TO DRIVE UNIT 132-1743570
