454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Sea Water Pump

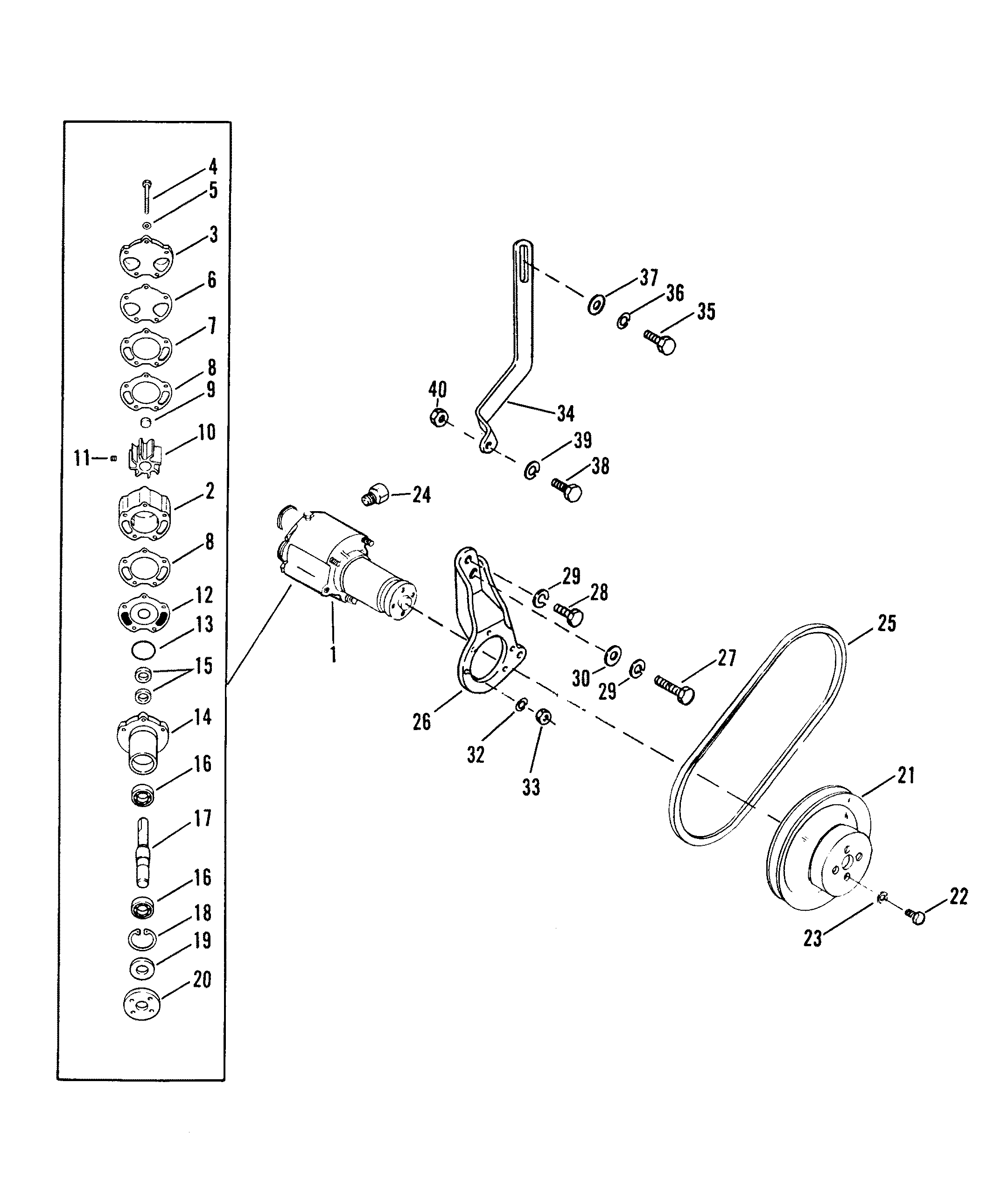

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 46-807151A12         WATER PUMP ASSEMBLY 1 46-72774A50
2 46-72774A40         BODY, WATER PUMP 1   This Part is No Longer Available
3 87631A4         COVER, WATER PUMP 1 87631A1
4 10-73275         SCREW, WATER PUMP (3") 2

4 10-99347         SCREW, WATER PUMP (3-3/4") 3

5 12-20084         WASHER, COVER SCREW 5

6 27-8052151         GASKET, COVER TO OUTER WEAR PLATE 1 27-94915
7 94916         WEAR PLATE, OUTER 1

8 27-94914     700-32730   GASKET, BODY TO WEAR PLATE 2

9 19-59504         PLUG, IMPELLER 1

10 47-59362T1 625-4011 676-9-45375 700-89740   IMPELLER (USE W/O KEY) 1 47-593621
11 8M0032837         KEY, IMPELLER DRIVE 1 28-56662
12 94576         WEAR PLATE, INNER 1

13 25-94288         QUAD RING, PUMP HOUSING 1

14 46-94913A2         PUMP HOUSING ASSEMBLY 1

15 26-90562   676-9-76107 700-85080   OIL SEAL, WATER PUMP SHAFT 2

16 30-72961         BALL BEARING, WATER PUMP SHAFT 2

17 59501A1         SHAFT, WATER PUMP 1

18 53-23720         SNAP RING, BALL BEARING RETAINING 1

19 26-72785         OIL SEAL, WATER PUMP SHAFT 1

20 47530         HUB, WATER PUMP PULLEY 1

21 52822T         PULLEY, WATER PUMP (CAST) 1

22 10-47277         SCREW, PULLEY (3/4") 4

23 13-39107     700-21496   LOCKWASHER, PULLEY SCREW 4

24 22-328022         PLUG, PIPE (FOR WATER PUMP BODY) 1 22-32802
25 57-13457Q         BELT, WATER PUMP (30") 1 57-13457T
26 15295T         BRACKET, WATER PUMP (STAMPED) 1

27 10-47461         SCREW, WATER PUMP BRACKET (1") 1

28 10-17965         SCREW, WATER PUMP BRACKET 1

29 13-32993         LOCKWASHER, BRACKET SCREW 1

30 12-27025         WASHER, BRACKET SCREW 1

32 13-39107     700-21496   LOCKWASHER 3

33 11-21908         NUT 3

34 15751T         BRACE, WATER PUMP 1

35 10-47461         SCREW, BRACE TO ENGINE (1") 1

36 13-32993         LOCKWASHER, BRACE SCREW 1

37 12-74758         WASHER, BRACE SCREW 1 12-30315
38 10-35786         SCREW, WATER PUMP BRACE (1") 1

39 13-35048         LOCKWASHER, BRACE SCREW 1

40 11-46335         NUT, BRACE SCREW 1
