454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Power Steering Components

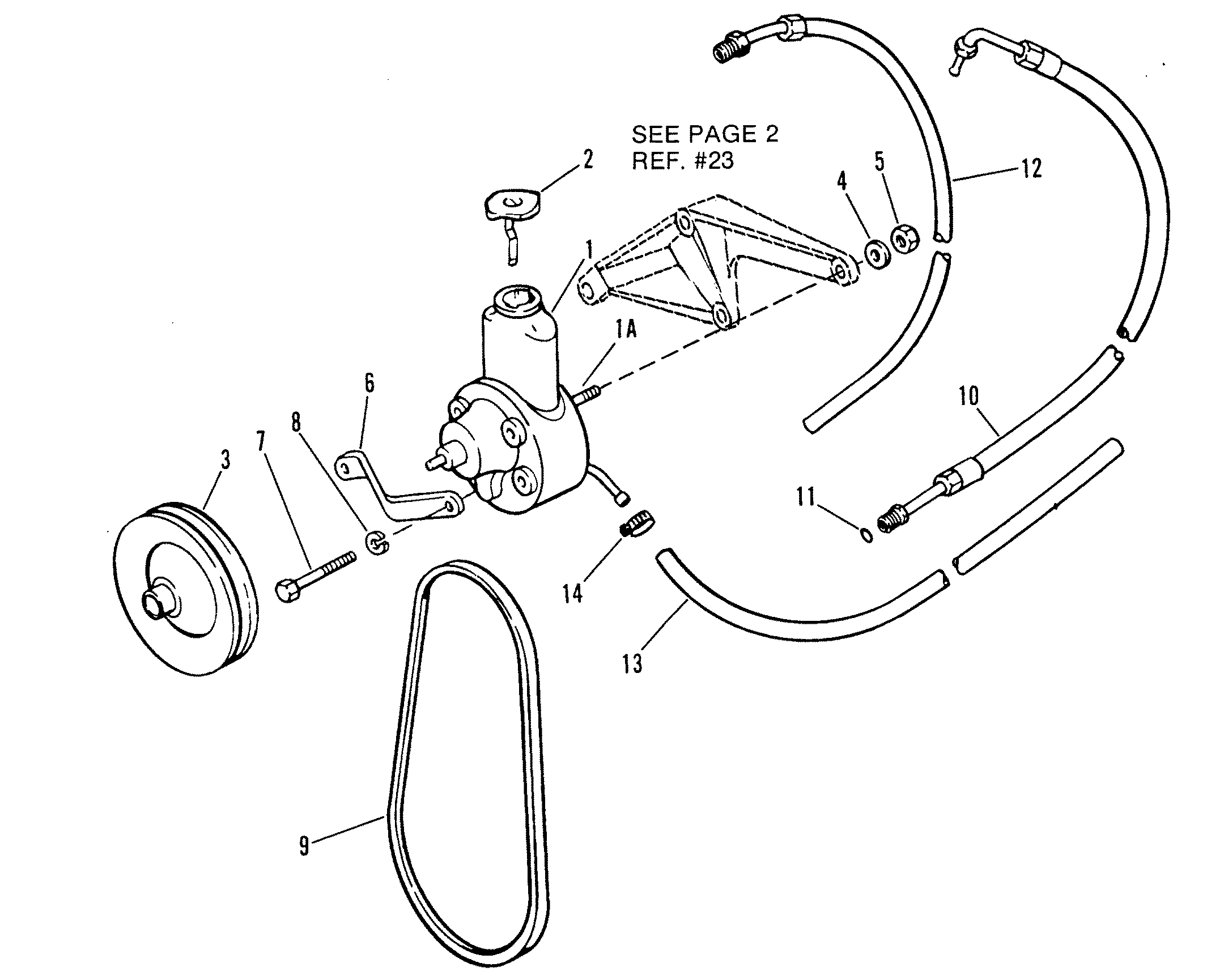

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8MR2039K
- Alternator (Prestolite) Prestolite 8EM2003KA
- Audio Waring System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow Cast Iron Exhaust Elbow
- Exhaust Manifold And Exhaust Elbow Stainless Steel
- Exhaust Plate
- Flame Arrestor New Design
- Flame Arrestor Old Design
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Muffler Kit
- Oil Filter And Adaptor
- Oil Pan And Oil Pump Castoil Pan
- Oil Pan And Oil Pump Stamped Oil Pan
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 12"
- Starter Motor Delco Remy 9000762 8"
- Thermostat Housing New Design
- Thermostat Housing Old Design
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY, POWER STEERING | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
| 1A | 16-41877 | STUD, POWER STEERING PUMP | 1 | ||||||
| 2 | 36-95805 | CAP, POWER STEERING PUMP | 1 | ||||||
| 3 | 73873A1 | PULLEY, POWER STEERING PUMP | 1 | ||||||
| 4 | 23-72057 | SPACER, PUMP STUD (BRACE SLOT) | 2 | ||||||
| 5 | 11-90517 | NUT, MOUNTING STUD | 2 | ||||||
| 6 | 98813F1 | BRACE, PUMP MOUNTING | 1 | 98813A1 | |||||
| 7 | 10-40001188 | SCREW, PUMP MOUNTING BRACE | 1 | ||||||
| 8 | 13-400248 | LOCKWASHER, BRACE SCREW | 1 | ||||||
| 9 | 57-13458Q | V-BELT (USE WITH 5-1/2" O.D. W.P. PULLEY) | 1 | 57-13458T | |||||
| 9 | 57-812427Q | V-BELT (USE WITH 7" O.D. W.P. PULLEY) | 1 | 57-812427T | |||||
| 10 | 32-90494 | HOSE, PRESSURE (FITTINGS ON BOTH ENDS) | 1 | ||||||
| 11 | 25-89879 | "O" RING, PRESSURE HOSE END | 1 | ||||||
| 12 | 32-9884339 | HOSE, RETURN (FITTINGS ON ONE END) | 1 | ||||||
| 13 | 32-8M0062341 | HOSE, PUMP TO OIL COOLER | 1 | 32-5251914 | |||||
| 14 | 54-815504206 | CLAMP, HOSE ATTACHING | 3 | 54-35830 |
