454 Mag Bravo (Gen 4) GM V-8 1988-1992 - Serial 0B721206 Thru 0D805068 - Exhaust Manifold And Exhaust Elbow Cast Iron Exhaust Elbow

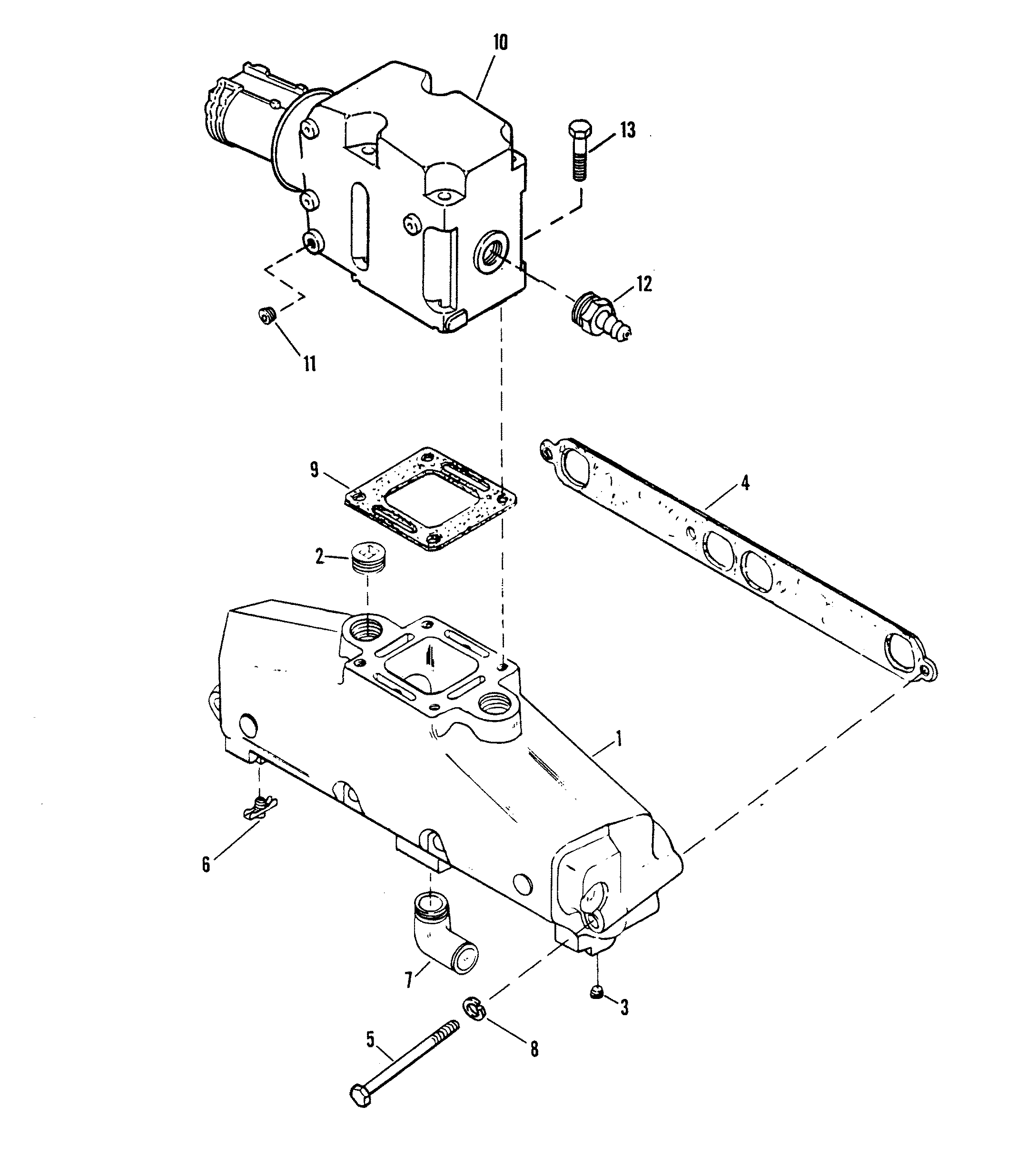

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8MR2039K
- Alternator (Prestolite) Prestolite 8EM2003KA
- Audio Waring System
- Carburetor
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow Cast Iron Exhaust Elbow
- Exhaust Manifold And Exhaust Elbow Stainless Steel
- Exhaust Plate
- Flame Arrestor New Design
- Flame Arrestor Old Design
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Muffler Kit
- Oil Filter And Adaptor
- Oil Pan And Oil Pump Castoil Pan
- Oil Pan And Oil Pump Stamped Oil Pan
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor 12"
- Starter Motor Delco Remy 9000762 8"
- Thermostat Housing New Design
- Thermostat Housing Old Design
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807078T10 | EXHAUST MANIFOLD ASSEMBLY | 2 | 89011A8 | NOTE: FOR EXHAUST ELBOW EXTENSION KITS, ORDER THE FOLLOWING: | ||||
| 2 | 22-41622 | 676-9-41205 | 700-21892 | PLUG | AR | 33198A1 | [93320A3] RISER KIT [3"] | ||
| 3 | 22-73379 | PIPE PLUG | 4 | [93322A3] RISER KIT [6"] | |||||
| 4 | 27-46820 | 676-9-61400 | 700-33760 | GASKET | 2 | EACH KIT CONTAINS 2 RISERS 4 | |||
| 5 | 10-37612 | SCREW (1-1/4") | 8 | 4= [27-19315A88] GASKET SET, ENGINE OVERHAUL | |||||
| 5 | 10-48424 | SCREW (1-5/8") | 8 | ||||||
| 6 | 22-16951Q1 | DRAIN COCK | 2 | 22-16951A1 | |||||
| 7 | 22-36305T | ELBOW | 2 | 22-36305 | |||||
| 8 | 13-35048 | LOCKWASHER | 16 | ||||||
| 9 | 27-863724 | GASKET (STANDARD COOLING) | 2 | 27-41813 | 4 | ||||
| 10 | 807988A03 | EXHAUST ELBOW ASSEMBLY (7 ) | 2 | 44354A3 | |||||
| 11 | 22-36382 | 700-21887 | PIPE PLUG | 2 | |||||
| 12 | 22-865159 | FITTING (45 ) | 1 | 22-92499 | |||||
| 12 | 22-45084 | FITTING (STRAIGHT) | 1 | No longer made, limited availability | |||||
| 13 | 10-43749 | SCREW | 6 | ||||||
| 13 | 10-44387 | SCREW | 2 |
