4.3L (GEN +) (2 BBL.) GM 262 V-6 - 0L010044 THRU 0M614999 - Crankshaft And Pistons

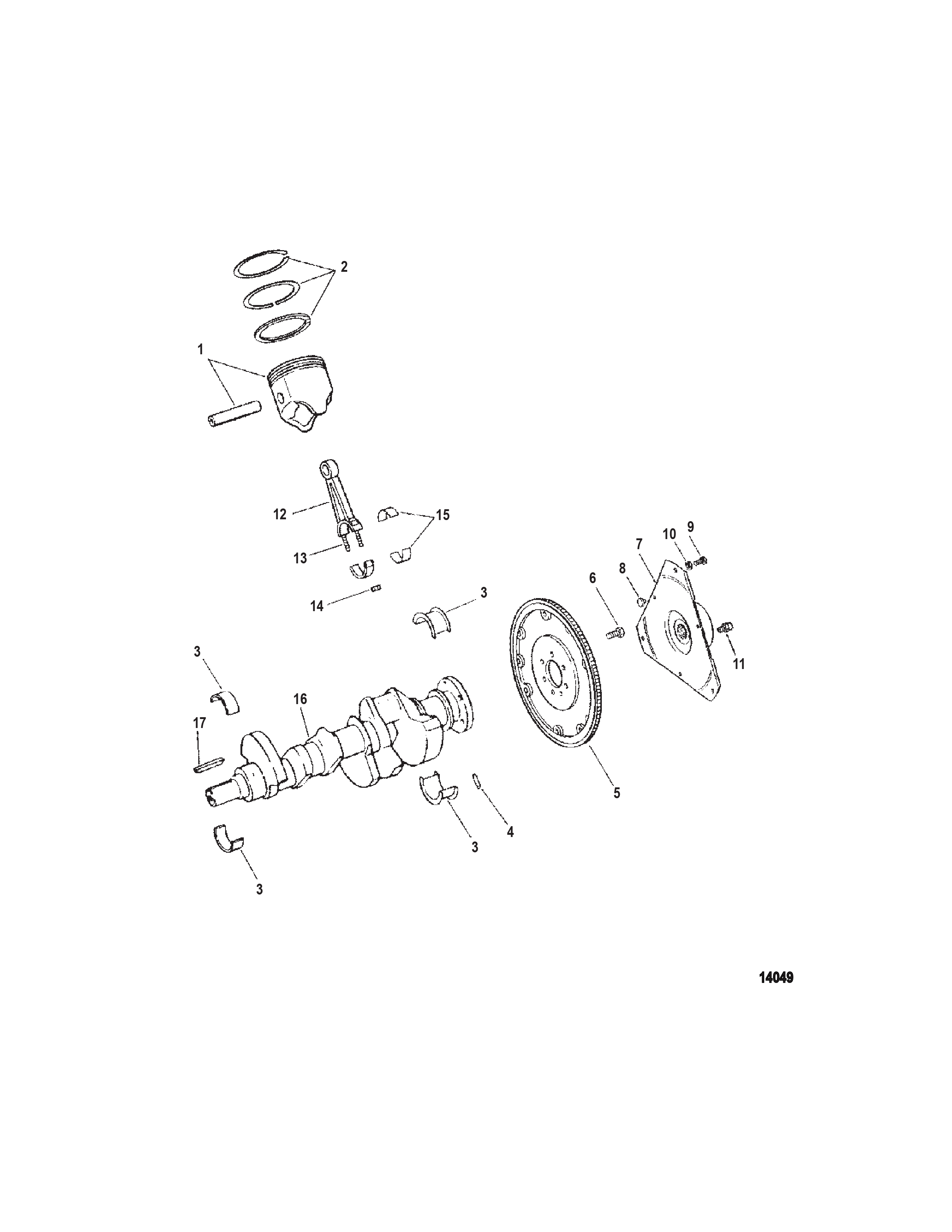

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0735 OEM: 525-735-835001T PISTON ASSEMBLY (STANDARD) 6
1 0735 OEM: 525-735-835002T PISTON ASSEMBLY (.5MM OVERSIZE) AR
2 0039 801861T1 RING SET Piston (STANDARD) 6
2 0039 OEM: 525-39-835000 RING SET Piston (.5MM OVERSIZE) AR
3 0023 OEM: 525-23-818465, Sierra: 676-18-1300 BEARING SET 5 Pair (STANDARD) 1
3 0023 OEM: 525-23-818466 BEARING SET 5 Pair (.001 OVERSIZE) AR
3 0023 OEM: 525-23-818467 BEARING SET 5 Pair (.010 OVERSIZE) AR
3 0023 OEM: 525-23-818468 BEARING SET 5 Pair (.020 OVERSIZE) AR
4 0017 OEM: 525-17-43504 PIN Dowel   1
5 0222 8243201 FLYWHEEL (GM BLOCK CODE 8LK, 8LJ) 1
5 0222 804913 FLYWHEEL (GM BLOCK CODE 9LK, 9LJ, 0LK, 0LJ) 1
6 0010 49845 SCREW (.437-20 x 1.00)   6
7 0000 OEM: 530-18643A5, Sierra: 676-18-2323, GLM: 700-11532 COUPLING ASSEMBLY   1
8 0000 OEM: 525-18644 BUMPER Rubber   3
9 0010 OEM: 525-10-14883 SCREW (.375-16 x 1.12)   3
10 0012 OEM: 525-12-13510 WASHER   3
11 0022 OEM: 525-22-74036 FITTING Grease   1
12 0614 811839T CONNECTING ROD   6
13 0010 OEM: 525-10-11969 BOLT   12
14 0011 37493 NUT (.375-24)   12
15 0023 11992 BEARING (STANDARD - PAIR) 6
15 0023 OEM: 525-23-11993 BEARING (.001 OVERSIZE - PAIR) AR
15 0023 811858 BEARING (.010 OVERSIZE - PAIR) AR
15 0023 OEM: 525-23-811859 BEARING (.020 OVERSIZE - PAIR) AR
16 0429 95171 CRANKSHAFT (GM BLOCK CODE 8LK, 8LJ) 1
16 0429 804911 CRANKSHAFT (GM BLOCK CODE 9LK, 9LJ, 0LK, 0LJ) 1
17 0028 OEM: 525-28-8184851 KEY   1
