262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Vapor Separator Tank And Fuel Lines

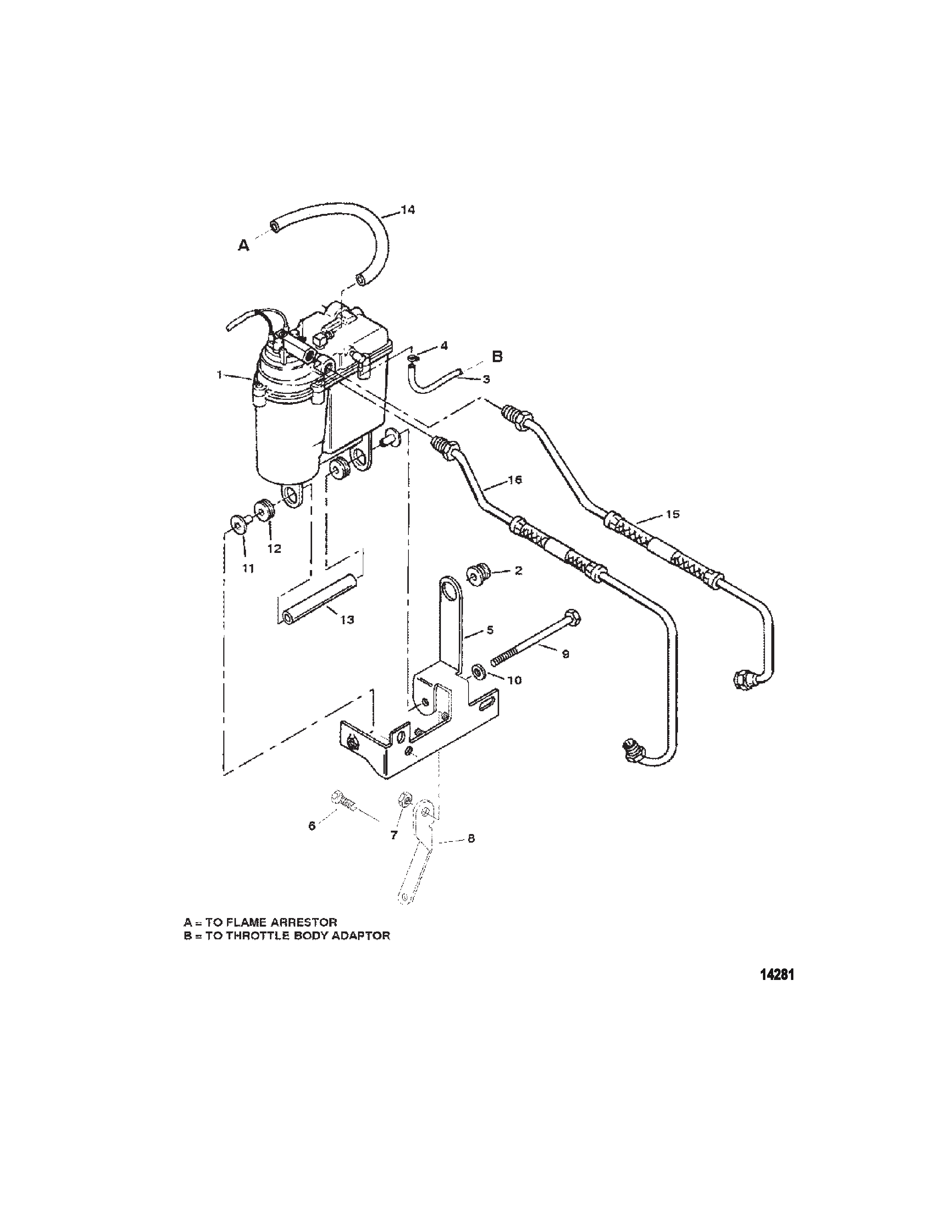

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 806643A5 TANK Vapor Separator   1
2 0025 880331 GROMMET   1
3 0032 82722843 HOSE Vent   1
4 0054 OEM: 525-54-815504105 CLAMP Worm Gear (11-18 mm)   2
5 0000 806645T BRACKET   1
6 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   1
7 0011 35814 NUT (.312-24) Stainless Steel   1
8 0000 807794T STRAP   1
9 0010 807056 SCREW   1
10 0012 OEM: 525-12-26825 WASHER (.328 x .750 x .06)   1
11 0023 OEM: 525-23-19064 BUSHING   2
12 0025 OEM: 525-25-88033 GROMMET   2
13 0023 806648 SPACER   1
14 0032 OEM: 530-7381567 TUBING (42.00 Inches Bulk)   1
15 0032 807792T LINE Fuel To TBI Outlet   1
16 0032 807791T LINE Fuel To TBI Inlet   1
