262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Oil Reservoir Bottle And Bracket

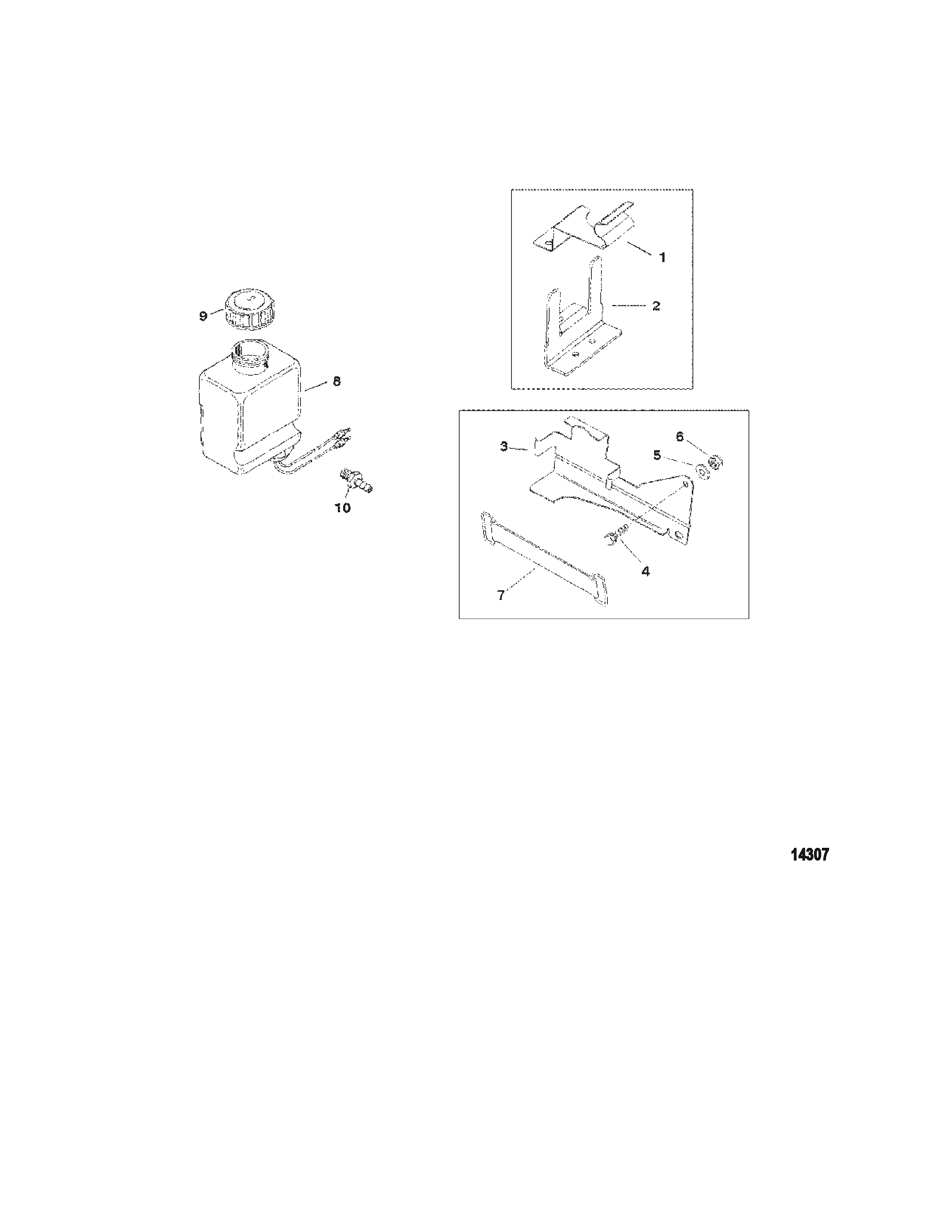

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 806649T | BRACKET | (Design I) | 1 | |
| 2 | 0000 | 806650T | BRACKET | (Design I) | 1 | |
| 3 | 0000 | 807839T | BRACKET | (Design II) | 1 | |
| 4 | 0010 | OEM: 525-10-657461 | SCREW AND LOCKWASHER (.250- 20 x .625) | (Design II) | 1 | |
| 5 | 0012 | OEM: 525-12-69057 | WASHER (.281 x .734 x .063) | (Design II) | 1 | |
| 6 | 0011 | 72008 | NUT (.250-20) | (Design II) | 1 | |
| 7 | 0000 | OEM: 525-808023T | STRAP Bracket | (Design II) | 1 | |
| 8 | 0000 | 806193A3 | RESERVOIR ASSEMBLY Oil | 1 | ||
| 9 | 0036 | 808625 | CAP Drive Lube Monitor Oil Bottle | 1 | ||
| 10 | 0022 | OEM: 525-22-808624 | CONNECTOR | 1 |
