262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Sea Water Pump Assembly (Use With Bravo Engines)

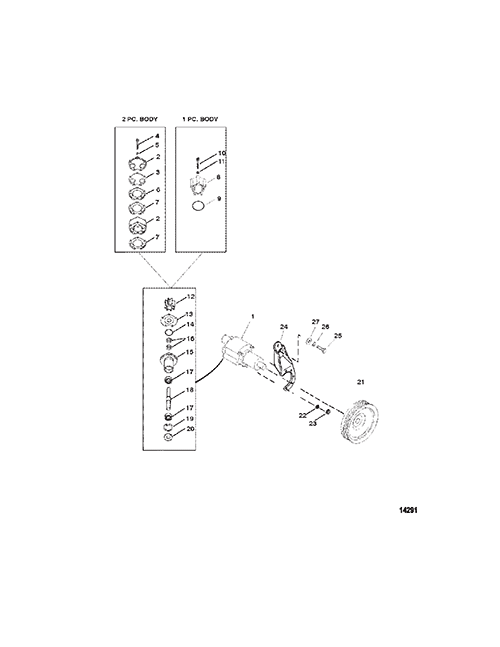

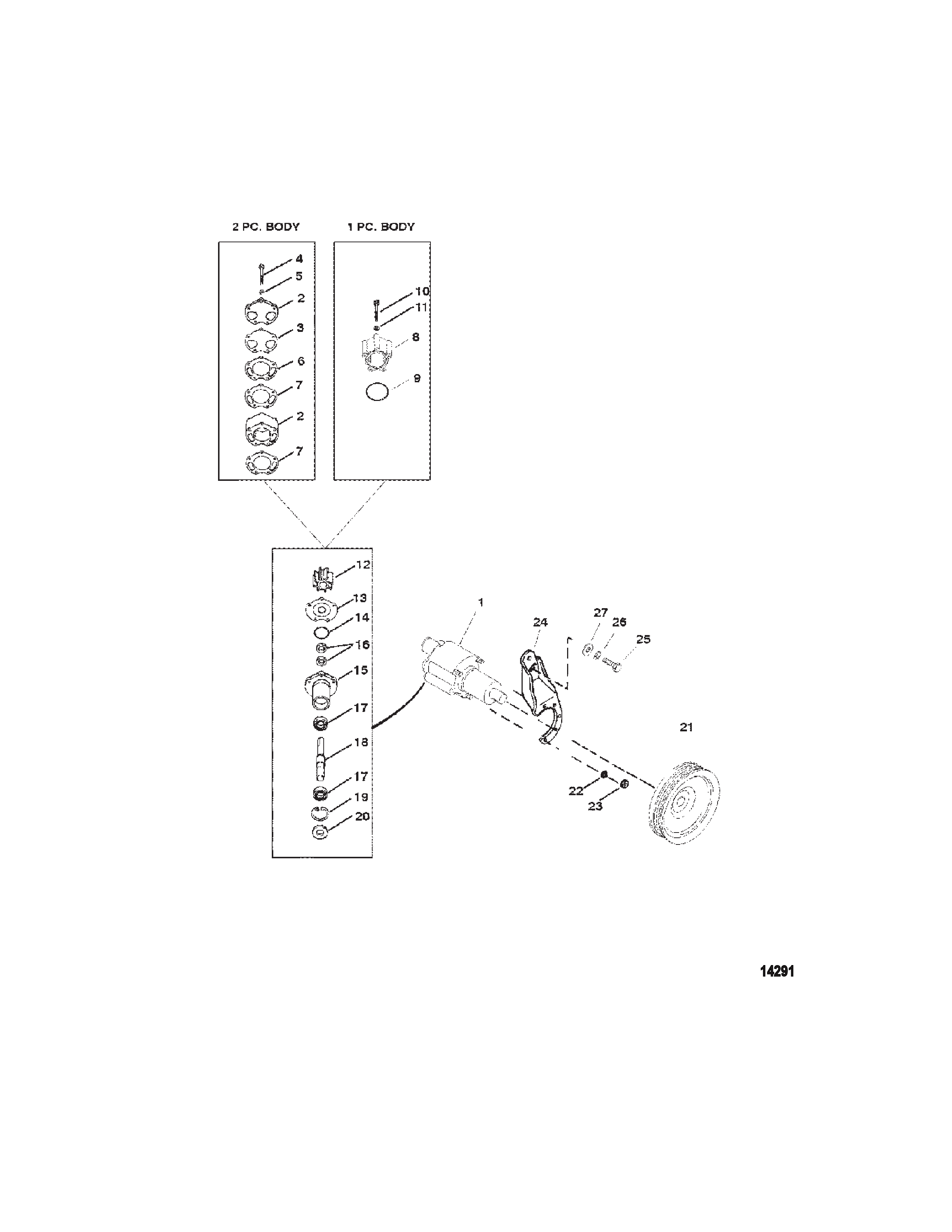

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft And Pistons
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold (1 Piece)
- Exhaust Manifold And Exhaust Elbow (2 Piece)
- Exhaust System (Use With One Piece Manifold)
- Exhaust Sytem (Use With Two Piece Manifold)
- Flywheel Housing
- Fuel Filter (Fuel Cooled System)
- Fuel Pump And Fuel Cooler (Fuel Cooled System)
- Fuel Pump And Fuel Filter (VST Fuel System)
- Intake Manifold And Front Cover
- Mercathode Components
- Miscellaneous Information
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Remote Oil Filter (With 16521T Adaptor)
- Remote Oil Filter (With 860091T Adaptor)
- Sea Water Pump Assembly (Use With Bravo Engines)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Fuel Cooled System)
- Standard Cooling System (VST Fuel System)
- Starter Motor
- Starter Motor And Alternator
- Swiss Emissions Parts (BSO1 And SAV1)
- Throttle Body
- Throttle Linkage
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Lines
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness And Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0046 | OEM: 530-807151A9, GLM: 700-12097 | PUMP ASSEMBLY Sea Water | 1 | [1] | |
| 2 | 0046 | 807151A7 | BODY AND COVER | (Two Piece Body) | 1 | |
| 3 | 0027 | OEM: 525-27-8052151, Sierra: 676-18-0916 | GASKET | (Two Piece Body) | 1 | |
| 4 | 0010 | OEM: 525-10-73275, GLM: 700-22441 | SCREW (.312-18 x 2.88) | (Two Piece Body) | 2 | |
| 4 | 0010 | OEM: 525-10-99347 | SCREW (.312-18 x 3.75) | (Two Piece Body) | 3 | |
| 5 | 0012 | OEM: 525-12-20084, GLM: 700-21664 | WASHER (.328 x .562 x .062) | (Two Piece Body) | 5 | |
| 6 | 0000 | OEM: 525-94916, Sierra: 676-18-3351, GLM: 700-12502 | WEAR PLATE Outer | (Two Piece Body) | 1 | |
| 7 | 0027 | OEM: 525-27-94914, Sierra: 676-18-0386, GLM: 700-32730 | GASKET | (Two Piece Body) | 2 | |
| 8 | 0046 | 807151A7 | BODY AND COVER | (One Piece Body) | 1 | |
| 9 | 0025 | 807149 | QUAD RING | (One Piece Body) | 1 | |
| 10 | 0010 | OEM: 525-10-807356 | SCREW (.312-18 x 2.680) | (One Piece Body) | 2 | |
| 10 | 0010 | OEM: 525-10-74191 | SCREW (.312-18 x 3.250) | (One Piece Body) | 3 | |
| 11 | 0012 | OEM: 525-12-814806, GLM: 700-21662 | WASHER (.344 x .688 x .065) Stainless Steel | (One Piece Body) | 5 | |
| 12 | 0047 | 593621 | IMPELLER | 1 | ||
| 13 | 0000 | OEM: 525-94576, Sierra: 676-18-3350, GLM: 700-12501 | WEAR PLATE Inner | 1 | ||
| 14 | 0025 | OEM: 525-25-94288, Sierra: 676-18-7474, GLM: 700-84026 | QUAD RING | 1 | ||
| 15 | 0046 | OEM: 525-46-94913A5, GLM: 700-22725 | HOUSING ASSEMBLY Pump | 1 | ||
| 16 | 0026 | OEM: 525-26-90562, Sierra: 676-18-2011, GLM: 700-85080 | SEAL (1.254 x .312) | 2 | ||
| 17 | 0030 | OEM: 525-30-72961, Sierra: 676-18-1398, GLM: 700-21625 | BEARING Ball | 2 | ||
| 18 | 0000 | OEM: 525-59501A1, GLM: 700-22401 | SHAFT | 1 | ||
| 19 | 0053 | OEM: 525-53-23720, GLM: 700-21772 | RING Retaining | 1 | ||
| 20 | 0026 | OEM: 525-26-72785, Sierra: 676-18-0531, GLM: 700-85810 | SEAL | 1 | ||
| 21 | 0000 | 807731T | PULLEY | 1 | ||
| 22 | 0013 | OEM: 525-13-39107, GLM: 700-21496 | LOCKWASHER (.312-24) | 3 | ||
| 23 | 0011 | OEM: 525-11-21908 | NUT (.312-18) Cad Plated | 3 | ||
| 24 | 0000 | 807749T | BRACKET | 1 | ||
| 25 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 2 | ||
| 26 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 2 | ||
| 27 | 0012 | OEM: 525-12-34714 | WASHER | 1 |
PART NOTES:
[1] - Supersedes To Another Part Number
