262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Remote Oil Filter (With 860091T Adaptor)

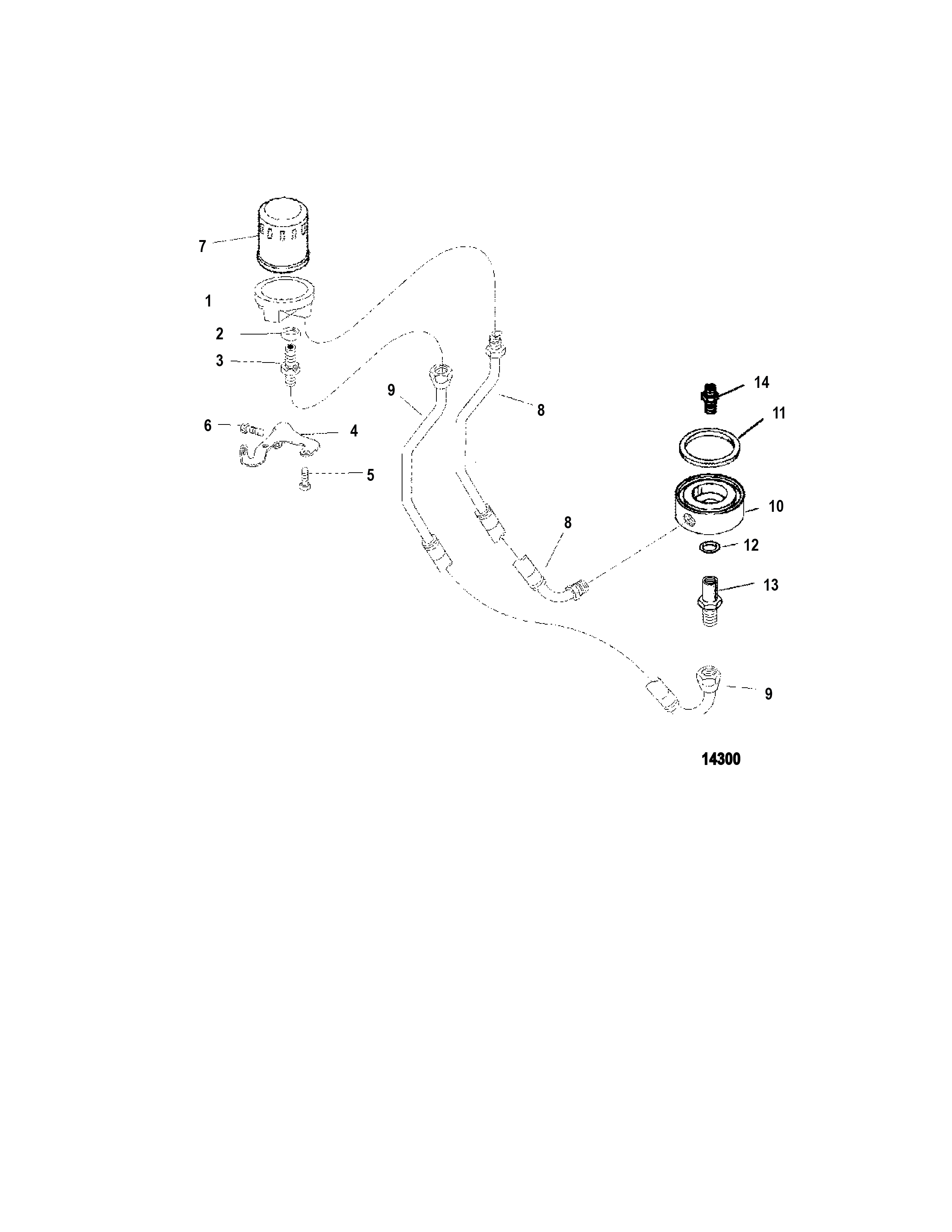

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-35-806329T ADAPTER Oil Filter   1
2 0026 OEM: 525-26-42077 SEAL   1
3 0022 OEM: 525-22-806328 FITTING   1
4 0000 OEM: 525-807459T BRACKET   1
5 0010 OEM: 525-10-98257 SCREW (.312-18 x .500)   2
6 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   1
7 0000 14957 FILTER Oil   1 [1]
8 0032 OEM: 525-32-861233 HOSE Oil   1
9 0032 OEM: 525-32-861234 HOSE Oil   1
10 0000 OEM: 525-860091T ADAPTER   1
11 0027 OEM: 525-27-16779 GASKET   1
12 0026 OEM: 525-26-42077 SEAL   1
13 0022 OEM: 525-22-860303 FITTING   1
14 0000 11972 ADAPTER   1

PART NOTES:

[1] - Alternate part numbers:

14957Service Part

802885QQS

802885TMPP
