262 MAG (TBI)(GEN+) - 0F803800 THRU 0K999999 - Exhaust Manifold (1 Piece)

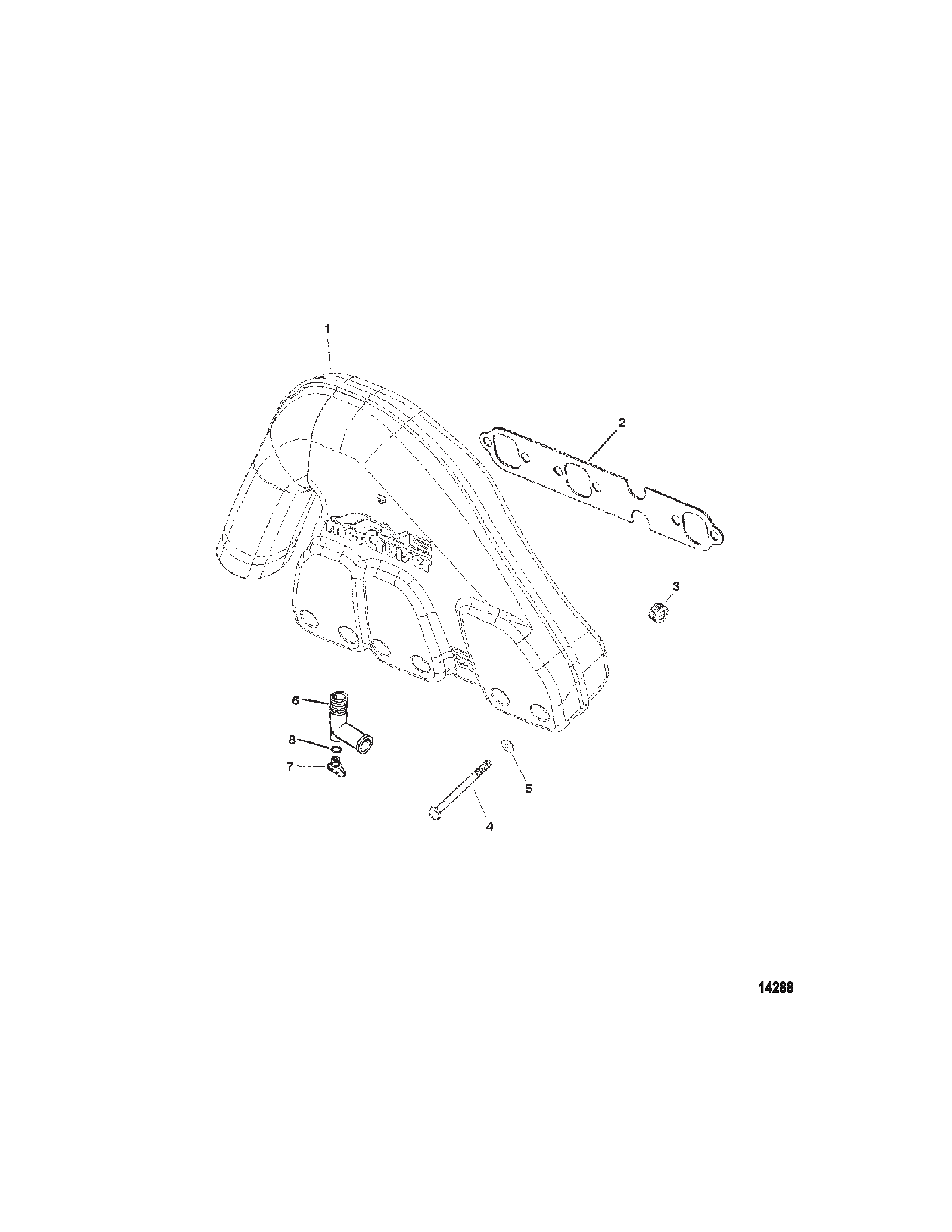

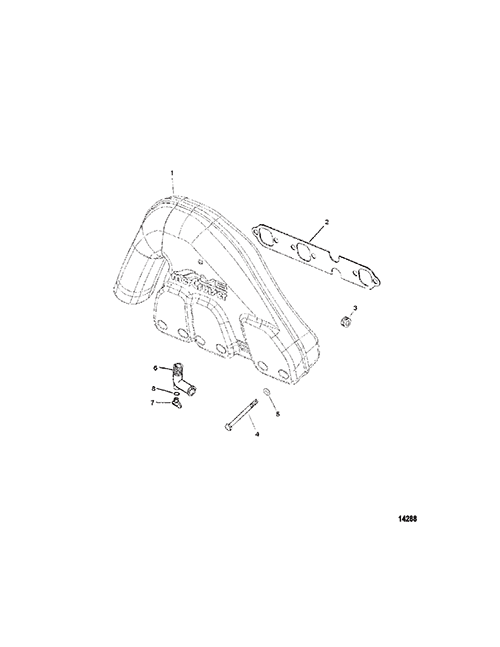

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 807293A2 MANIFOLD ASSEMBLY Exhaust (Starboard) 1
1 0000 807294A3 MANIFOLD ASSEMBLY Exhaust (Port) 1
2 0027 OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 GASKET   2 [1]
3 0022 33198A1 PLUG (3/4-14)   4
4 0010 OEM: 525-10-53728, GLM: 700-21745 SCREW (.375-16 x 4.75)   12
5 0012 OEM: 525-12-20553, GLM: 700-21675 WASHER (.406 x .734 x .063)   12
6 0022 806926A1 ELBOW KIT Drain   2
7 0022 806608A1 PLUG KIT (.500-13) Royal Blue   2 [2]
8 0025 806609 QUAD RING   2 [1]
- 0027 OEM: 525-27-807756A96 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - Component Of Overhaul Gasket Set


[2] - Alternate part numbers:

806608A 1Service Part

806608Q01QS
