2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Trim Switch Kit

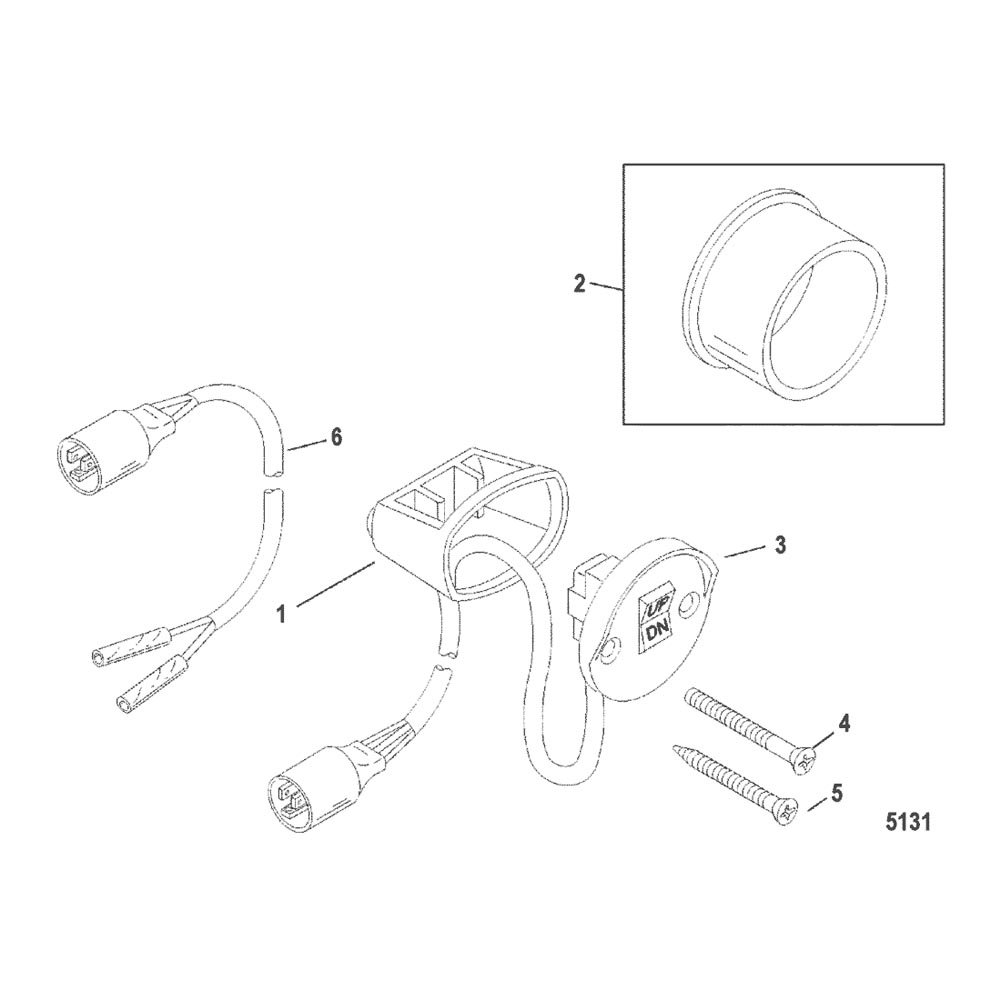

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Inlet/Throttle Linkage
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing, Long-Standard
- Driveshaft Housing, Offshore
- Driveshaft Housing, Short-Standard
- Exhaust Divider Plate
- Flywheel and Alternator
- Fuel Injectors
- Fuel Pump
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Powerhead Gasket Set Components
- Reed Block and Cylinder Head
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets
- Trim Switch Kit
- Wiring Harness, Starter Solenoid and Rectifier
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 87-18286A17 | SWITCH KIT, Trim | 1 | ||||||
| 1 | 18861 | RETAINER | 1 | ||||||
| 2 | 814820 | ADAPTOR | 1 | ||||||
| 3 | 87-18286A28 | SWITCH | 1 | ||||||
| 4 | 10-19209 | SCREW, (#10-32 x 2.25) | 2 | ||||||
| 5 | 10-813523 | SCREW, (#10-16 x 2.25) | 2 | ||||||
| 6 | 84-848017T3 | HARNESS ASSEMBLY, Trim | 1 | No Longer Available |
