2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Driveshaft Housing, Long-Standard

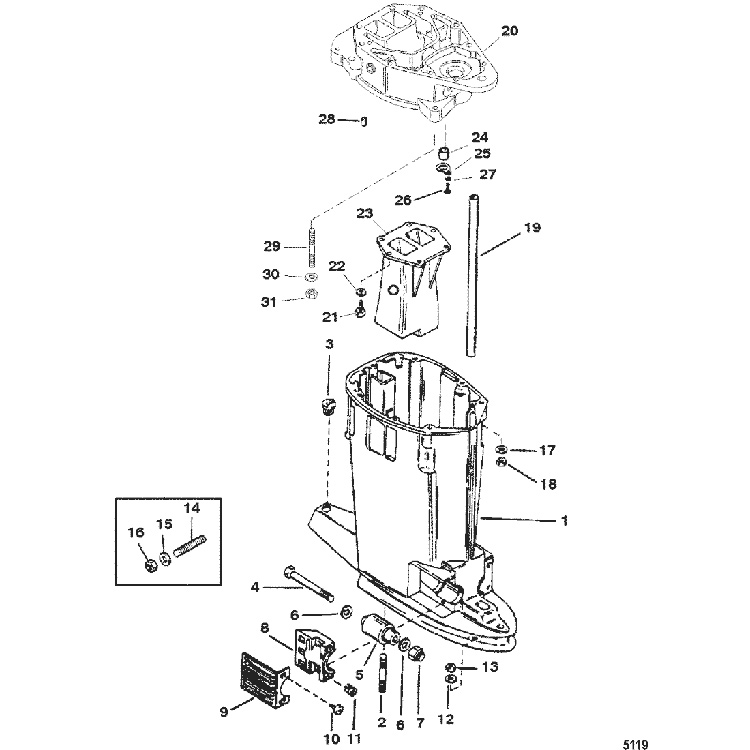

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1590-8837T5         HOUSING ASSEMBLY, Driveshaft 1 No Longer Available
2 16-59579         STUD, (.437-14/.437-20 x 2.812) 2
3 19-64649         PLUG 1
4 10-898831         SCREW, (.500-20 x 6.00) 2 63474
5 816054T1         MOUNT, Lower 2
6 12-816056         WASHER 6
7 11-898832         NUT, (.500-20) 2 82670817
8 54-8M0036782         CLAMP 2 67076
9 8M4500752         COVER, Black 2 67077T
10 10-88417         SCREW, (#12-24 x .620) 4
11 11-35521         NUT 4
12 12-822836         WASHER, (.445 x .805 x .108) 3
13 11-859116         NUT, (.437-20) 3
14 16-8M0034449         STUD, (.312-18/.312-24 x 1.690) 4 69058
15 12-22753         WASHER 4
16 11-82670811         NUT, (.312-24) 4
17 12-822838         WASHER, (.401 x .745 x .097) 10
18 11-82671013         NUT, (.375-24) Stainless Steel 8
18 11-826709113         NUT, (.375-24) Stainless Steel 2
19 32-8476502         TUBE, Water 1
20 848284T15         PLATE, Exhaust 1 No Longer Available
21 10-823258         SCREW, (.312-18 x 1.250) 6
22 12-822714         WASHER 6
23 848308T3         DIFFUSER 1
24 26-88397         SEAL 1
25 8476581         RETAINER 1
26 10-28635         SCREW, (.250-20 x .620) Stainless Steel 1
27 13-26992         LOCKWASHER, (.250) Stainless Steel 1
28 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
28 17-8M0043826         PIN, Dowel (.875) 2 823106
29 16-56295         STUD, (.437 x 2.69) 3
30 12-822836         WASHER, (.445 x .805 x .108) 3
31 11-859116         NUT, (.437-20) 3
