2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Fuel Pump

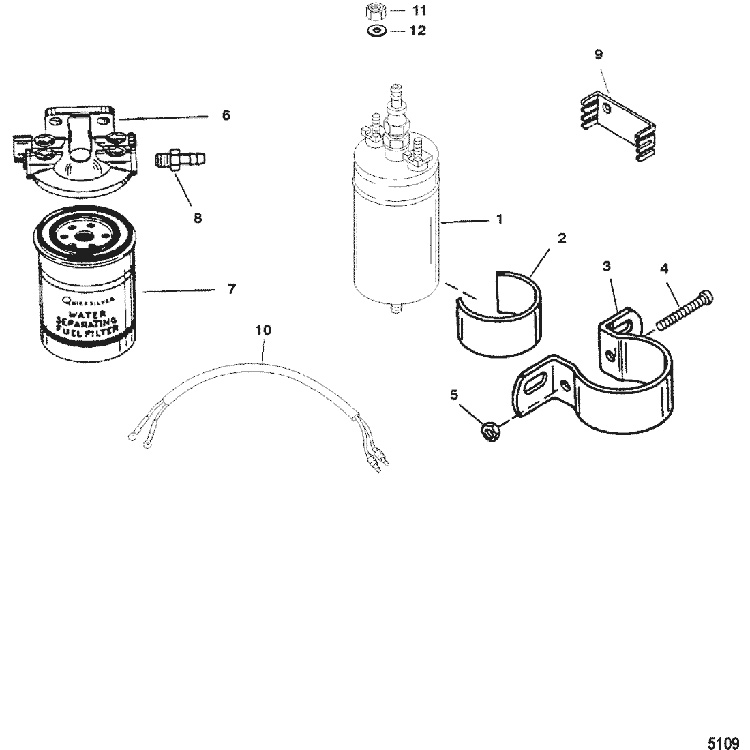

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Inlet/Throttle Linkage
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing, Long-Standard
- Driveshaft Housing, Offshore
- Driveshaft Housing, Short-Standard
- Exhaust Divider Plate
- Flywheel and Alternator
- Fuel Injectors
- Fuel Pump
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Powerhead Gasket Set Components
- Reed Block and Cylinder Head
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets
- Trim Switch Kit
- Wiring Harness, Starter Solenoid and Rectifier
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M8026000 | PUMP ASSEMBLY, Fuel | 1 | 848045A5 | |||||
| 2 | 410381 | SLEEVE | 1 | ||||||
| 3 | 944512 | BRACKET | 1 | ||||||
| 4 | 10-25158 | SCREW, (.190-32 x 1.75) | 1 | ||||||
| 5 | 11-20110 | NUT, (#10-32) | 1 | ||||||
| 6 | 35-802893Q4 | FILTER KIT | 1 | ||||||
| 7 | 35-802893Q01 | FILTER, Fuel/Water Separating - Quicksilver Brand | 1 | 802893Q | |||||
| 8 | 22-34982 | CONNECTOR | 1 | ||||||
| 9 | 79146 | RETAINER | 1 | ||||||
| 10 | 84-848490A3 | HARNESS ASSEMBLY | 1 | ||||||
| 11 | 11-400263 | NUT, (M5) | 1 | No Longer Available | |||||
| 11 | 11-400632 | NUT | 1 | ||||||
| 12 | 12-4002313 | WASHER | 1 | ||||||
| 12 | 12-38833 | WASHER | 1 |
