2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Exhaust Divider Plate

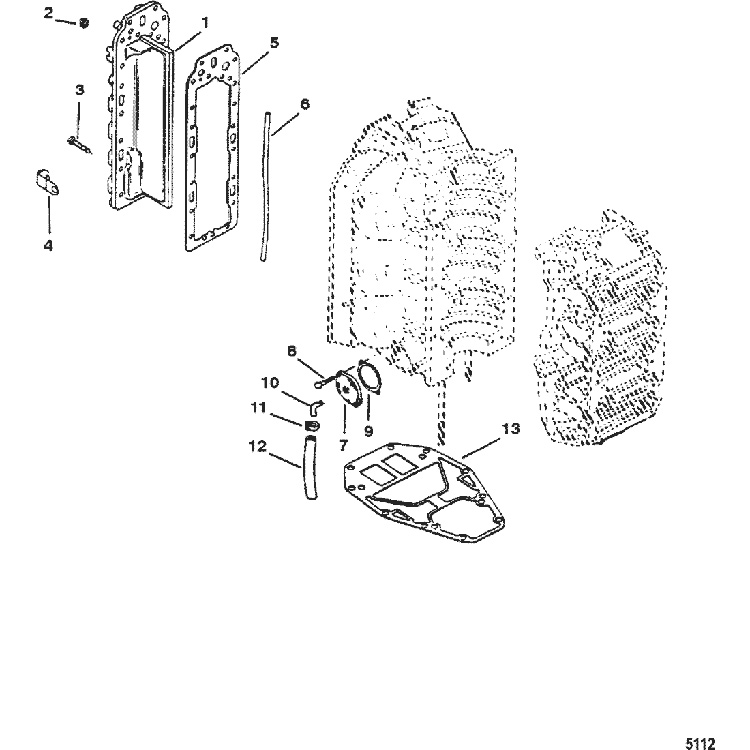

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Inlet/Throttle Linkage
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing, Long-Standard
- Driveshaft Housing, Offshore
- Driveshaft Housing, Short-Standard
- Exhaust Divider Plate
- Flywheel and Alternator
- Fuel Injectors
- Fuel Pump
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Powerhead Gasket Set Components
- Reed Block and Cylinder Head
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets
- Trim Switch Kit
- Wiring Harness, Starter Solenoid and Rectifier
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 815552T1 | PLATE, Exhaust Divider | 1 | 847609T4 | |||||
| 2 | 22-328022 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 3 | 10-848496 | SCREW, (.312-18 x 1.50) | 18 | ||||||
| 3 | 10-848497 | SCREW, (.312-18 x 1.00) | 2 | ||||||
| 4 | 54-814634 | CLAMP | 1 | ||||||
| 5 | 27-8475252 | GASKET | 1 | ||||||
| 6 | 26-8147542 | SEAL | 1 | ||||||
| 7 | 99193 | COVER, Relief Valve | 1 | ||||||
| 8 | 10-881190 | SCREW, (.312-18 x 1.00) | 2 | ||||||
| 9 | 27-889072 | GASKET | 1 | ||||||
| 10 | 22-687271 | FITTING, (.250-18) 90 Degree - Brass | 1 | ||||||
| 11 | 54-816311T | TIE STRAP, (8.00 Inches) | 2 | ||||||
| 12 | 32-77653101 | HOSE, (48.00 Inches Bulk), Cut to 12-1/4 Inches | 1 | ||||||
| 13 | 27-8231422 | GASKET | 2 | ||||||
| - | 27-849770A1 | GASKET SET, Engine | 1 | ||||||
| - | 61-848040T48 | POWERHEAD ASSEMBLY | 1 | No Longer Available |
