2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Powerhead Gasket Set Components

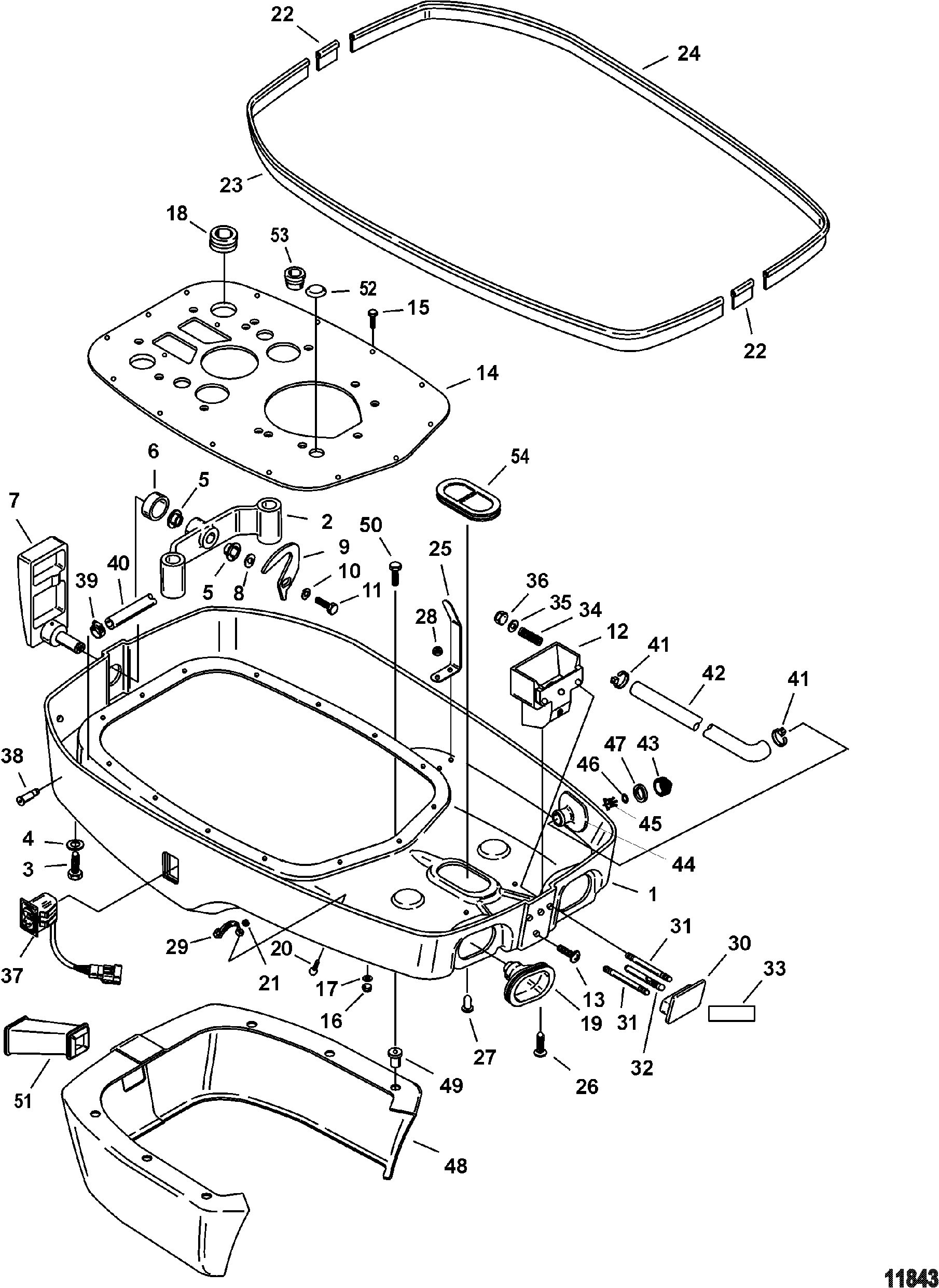

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Inlet/Throttle Linkage
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing, Long-Standard
- Driveshaft Housing, Offshore
- Driveshaft Housing, Short-Standard
- Exhaust Divider Plate
- Flywheel and Alternator
- Fuel Injectors
- Fuel Pump
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Powerhead Gasket Set Components
- Reed Block and Cylinder Head
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets
- Trim Switch Kit
- Wiring Harness, Starter Solenoid and Rectifier
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 27-849770A1 | GASKET SET, Engine | 1 | ||||||
| 0 | 26-94219 | SEAL, Fuel Injector | 6 | ||||||
| 0 | 27-993163 | GASKET, Air Inlet | 1 | ||||||
| 0 | 27-8475252 | GASKET, Divider Plate | 1 | ||||||
| 0 | 26-8147542 | SEAL, Divider Plate | 1 | ||||||
| 0 | 27-889072 | GASKET, Cover | 1 | ||||||
| 0 | 27-8231422 | GASKET, Cylinder Block | 2 | ||||||
| 0 | 25-54030 | O-RING, (2.987 x .103), Cylinder Block | 1 | ||||||
| 0 | 26-41953 | SEAL, Cylinder Block | 1 | ||||||
| 0 | 26-41953 | SEAL, Lower End Cap | 2 | ||||||
| 0 | 27-11338 | GASKET, Cylinder Block | 2 | ||||||
| 0 | 25-62700 | O-RING, (3.237 x .103), Lower End Cap | 1 | ||||||
| 0 | 26-849616 | SEAL, Cylinder Head | 2 | ||||||
| 0 | 25-817574 | O-RING, Cylinder Head | 6 | ||||||
| 0 | 27-62386001 | GASKET, Cover | 2 | 62386 | |||||
| 0 | 27-127754 | GASKET, Cylinder Head Plate | 1 | ||||||
| 0 | 65800 | PACKING, Crankshaft Carrier | 1 |
