8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Steering Components

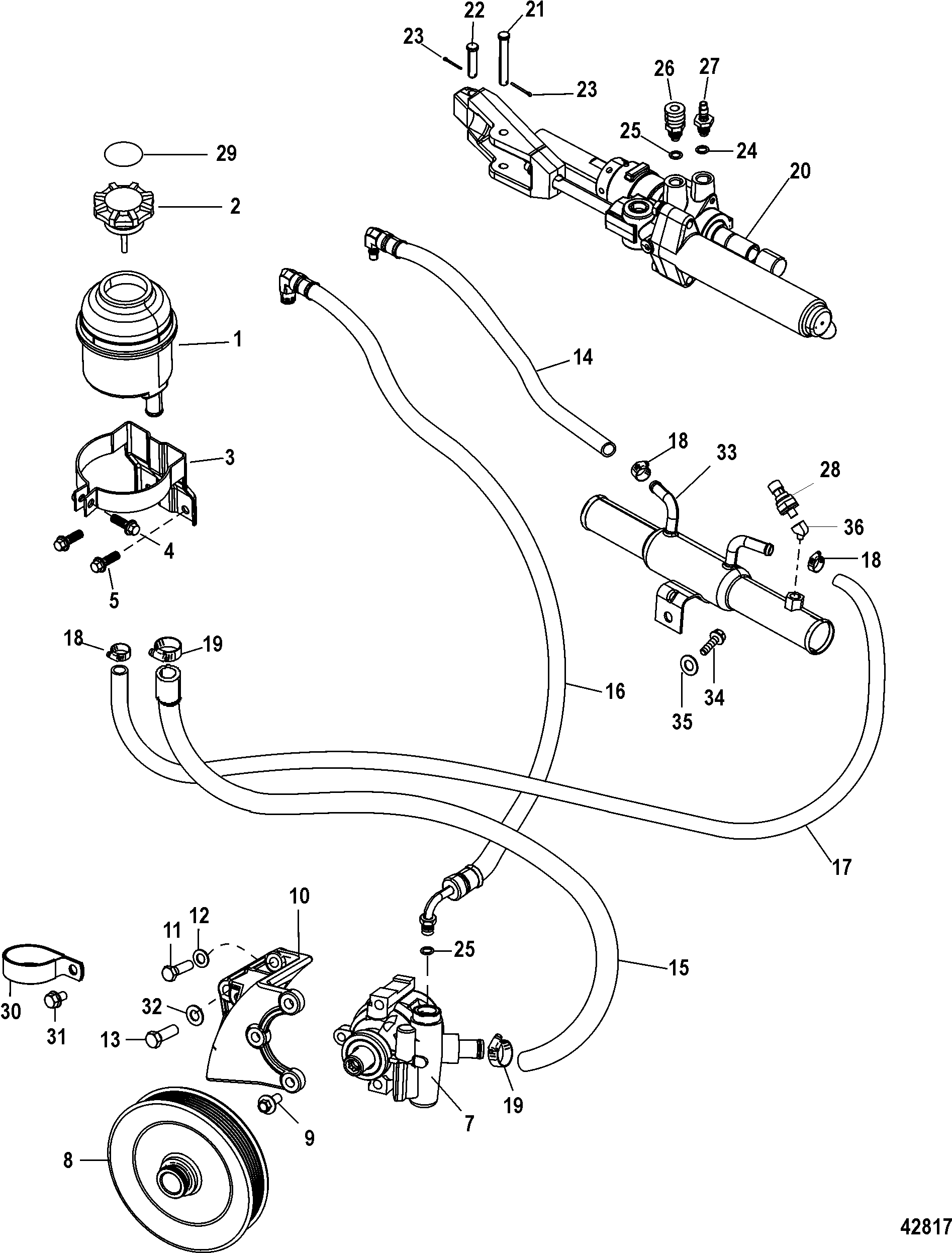

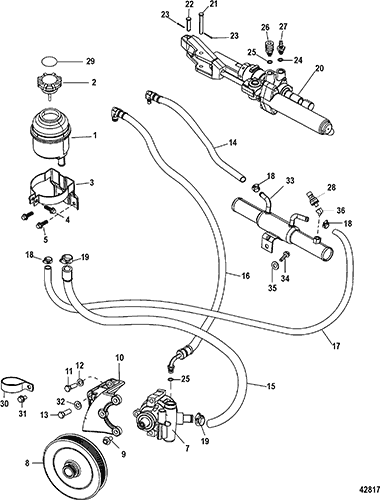

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0046080



RESERVOIR ASSEMBLY, Oil, Power Steering 1

2 19-865263



CAP, Oil Reservoir - Brown 1

3 865262A02



BRACKET ASSEMBLY 1

4 10-82130025



SCREW, (M6 x 25) 1

5 10-4010716



SCREW, (M8 x 16) 2

7 865710T



PUMP, Power Steering 1

8 861578



PULLEY, Power Steering 1
Pulley NOT included with pump
9 10-4010720



SCREW, (M8 x 20) 3

10 8M0045250



BRACKET, Power Steering Pump 1

11 10-37612



SCREW, (.375-16 x 1.250) 1

12 12-20553



WASHER, (.406 x .734 x .063) 1

13 10-47462



SCREW, (.437-14 x 1.250) 2

14 32-865390015



HOSE, Male Quick Connect, Cylinder to Cooler 1

15 32-8M0046187



HOSE, Pump to Reservoir 1

16 32-8M0046188



HOSE, Pump to Cylinder 1

17 32-865717



HOSE, Reservoir to Cooler 1

18 54-815504105



CLAMP, Worm Gear (11-18 mm), Hose 2

19 54-815504210



CLAMP, Worm Gear, Hose 2

20 866200A01



CYLINDER ASSEMBLY, Power Steering 1

21 17-15878



PIN, Clevis 1
Long
22 17-16419



PIN, Clevis 1
Short
23 18-46950



COTTER PIN 2

24 25-806232



O-RING, (.239 x .064) 1

25 25-89879



O-RING, (.301 x .064) 2

26 22-865415



FITTING 1

27 22-865414001



FITTING 1

28 8M6000623



SENSOR 1 881879010
29 37-8M2017892



DECAL, Power Steering Fluid 1
30 54-62494



CLIP 1
31 10-8055571



SCREW, (.3125-18 x .50) 1
32 12-22248



WASHER, (.453 x .875 x .060) 2
33 863820T1



COOLER, Power Steering 1
34 10-816585



SCREW, (.375-18 x .875) 1
35 13-72521



LOCKWASHER, Internal Tooth 1
36 22-29085



FITTING, Elbow (45 Degree) 1
