8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Cooling System, Fresh Water Components

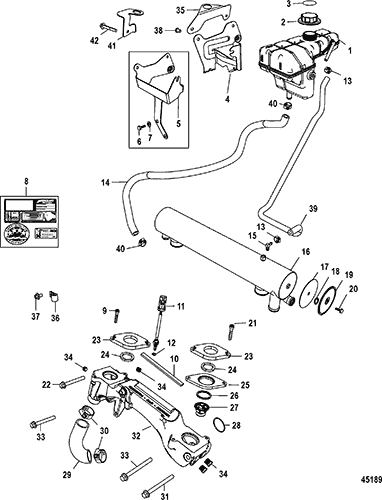

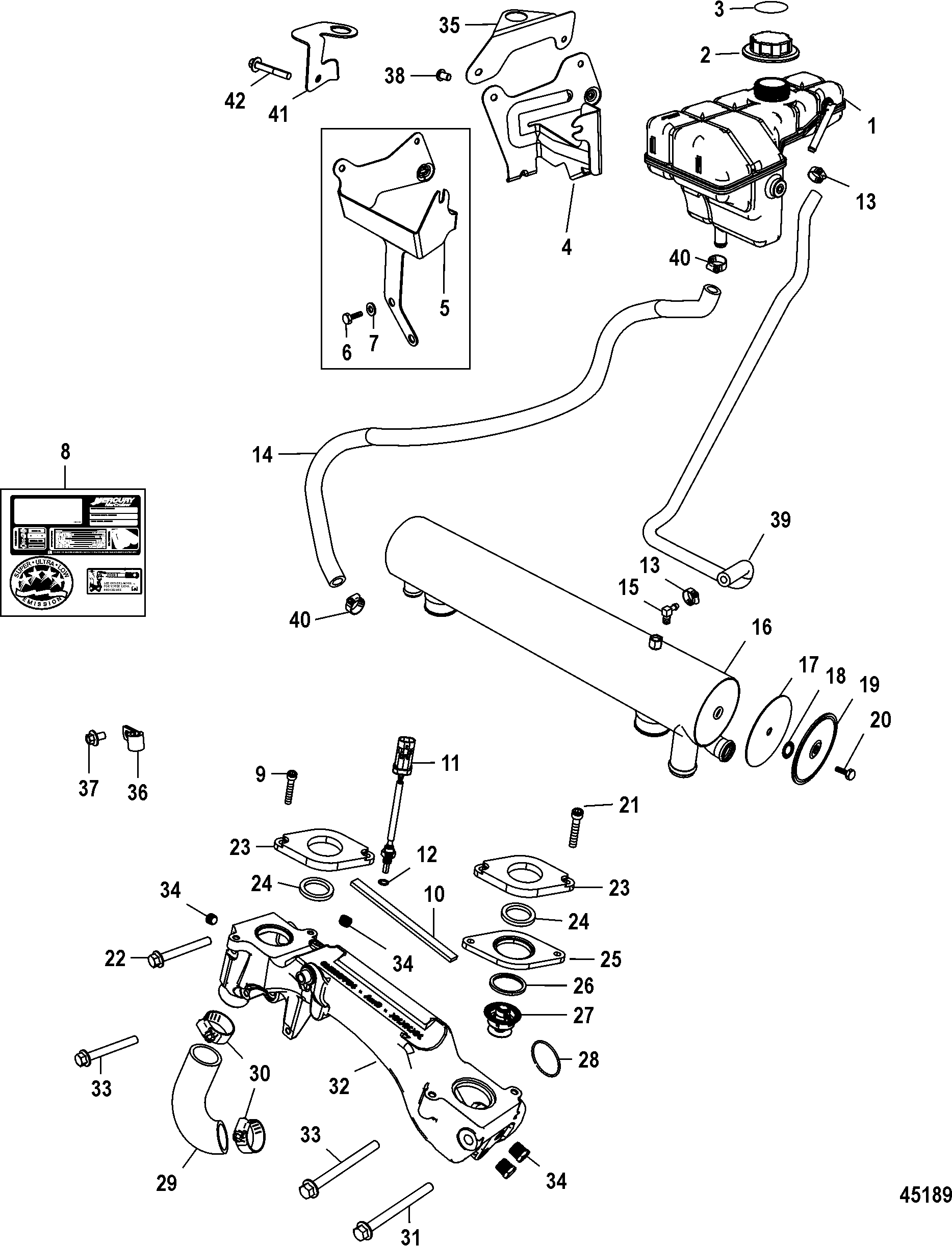

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Description Num Req. Superseded From Special Notes
1 8M0045229       RESERVOIR ASSEMBLY, Coolant 1
2 862863       CAP, Coolant Reservoir 1
3 37-8M2017891       DECAL, Engine Coolant 1
4 8M0045231       BRACKET, Reservoir 1   (See Note) SN# 1A351717 & Below
5 8M0050598       BRACKET, Reservoir 1   SN# 1A351718 & Up
6 10-47461       SCREW, (.437-14 x 1.00) 2   SN# 1A351718 & Up
7 12-27025       WASHER 2   SN# 1A351718 & Up
8 37-8M0045577       DECAL SET, 8.2L Base, Heat Exchanger 1   MCM
8 37-8M0045575       DECAL SET, 8.2L High Output, Heat Exchanger 1   MCM
8 37-8M0045580       DECAL SET, 8.2L Base (MIE), Heat Exchanger 1
8 37-8M0045580       DECAL SET, 8.2L Base (MIE), Heat Exchanger 1
9 10-4010730       SCREW, (M8 x 30) 2
10 843155001       FOAM STRIP (6.500 Inches) 2
11 885342002       SENSOR ASSEMBLY, Water Temperature 1
12 25-896699       O-RING, (1.78 mm x .08 mm) 1 25-888814 2
13 54-815504212       CLAMP, Worm Gear 2
14 32-8M2017665       HOSE, Reservoir to Circulating Pump 1
15 22-629101       FITTING, Elbow - 90 Degree (.125-27) 1
16 8M0045230       HEAT EXCHANGER 1
17 27-891716       GASKET 1   2
18 8M0039163       O-RING, (3/8 x 1/8) 1   2
19 891717       COVER 1
20 10-98261       SCREW, (.375-16 x .750) 1
21 10-4010730       SCREW, (M8 x 30) 2
22 10-8M2017380       SCREW, (.4375-14 x 5.5) 1
23 8M0075813       PLATE, Heat Exchanger 2 8M2017984
24 25-20295       QUAD RING (1.725 x .210) 2   2
25 8M0081454       PLATE, Heat Exchanger 1 8M2017982
26 25-8071341       SEAL, Thermostat 1   2
27 8M0045990       THERMOSTAT 1
28 25-30529     700-81360 O-RING, (1.925 x .103) 2   2
29 32-8M2019704       HOSE, Crossover to Circulating Pump 1
30 54-815504232       CLAMP, Worm Gear (2.50 Diameter) 2
31 10-8M0043100       SCREW, (7/16-14 x 5.0), Crossover Port 1
32 8M0045236       CROSSOVER 1
33 10-8M0043101       SCREW, (7/16-14 X 3.5), Lower Crossover 2
34 22-32803     700-21894 PLUG, Pipe (.375-18) Brass 4
35 8M2000004       BRACKET, Flush Mount 1
36 54-65653       CLIP 1
37 10-4010612       SCREW, (M6 x 12) Stainless Steel 1
38 10-8M2017990       SCREW, (M8 x 1.25) 3   MCM/MCM Inline
38 10-8M2017990       SCREW, (M8 x 1.25) 2   MIE V-Drive
38 10-81893412       SCREW, (M8 x 12) 1   MIE V-Drive
39 32-8M2017664       HOSE, Coolant Bleed 1
40 54-815504206       CLAMP, Worm Gear 2
41 8M2020585       BRACKET, Flush Mount 1   MIE V-Drive
42 10-4010720       SCREW, (M8 x 20), Flush Mount 1   MIE V-Drive
