8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Intake Manifold

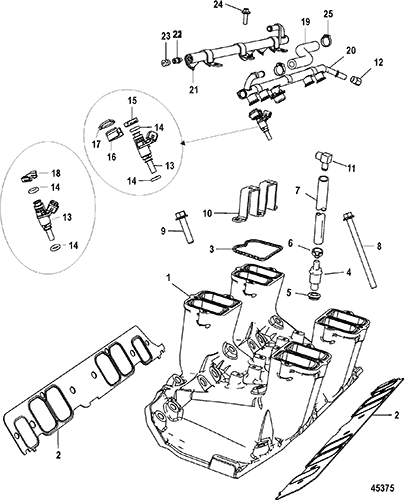

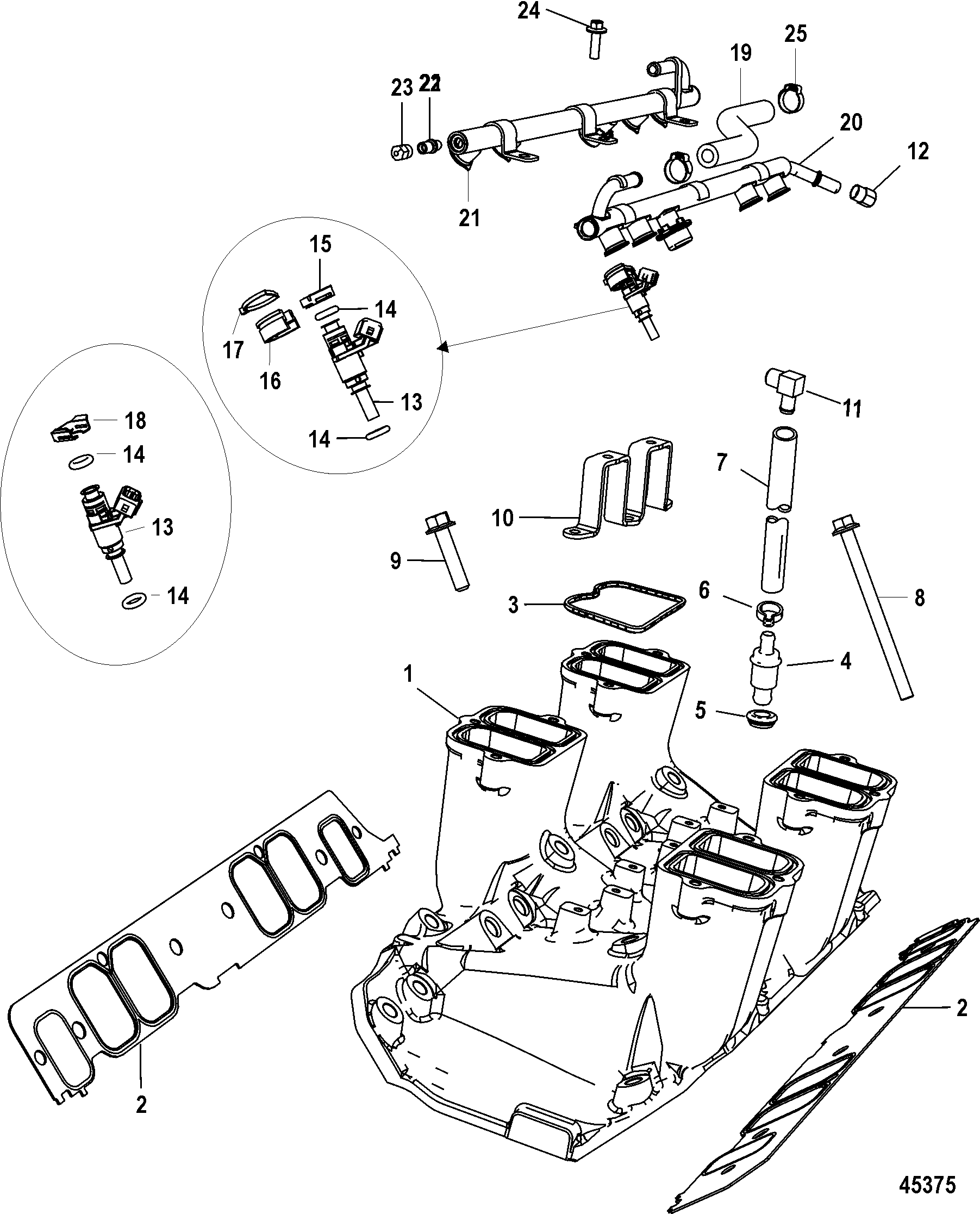

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0045256 | MANIFOLD ASSEMBLY, Intake | 1 | ||||||
| 2 | 27-805403A1 | GASKET SET | 1 | 2 | |||||
| 3 | 8M0044310 | SEAL, Intake Manifold | 4 | 2 | |||||
| 4 | 848578 | VALVE ASSEMBLY, Crankcase Vent | 1 | ||||||
| 5 | 25-811553 | GROMMET | 1 | 2 | |||||
| 6 | 54-848764 | CLAMP, (21 mm) | 1 | ||||||
| 7 | 32-8M0042521 | HOSE, PCV Valve to Plenum | 1 | ||||||
| 8 | 10-8M2017579 | SCREW, (.375-16 x 5.25), Intake Manifold to Head | 4 | ||||||
| 9 | 10-8M0046395 | SCREW, (.375-16 x 1.75) | 12 | ||||||
| 10 | 8M0043145 | BRACKET, Wire Harness | 2 | ||||||
| 12 | 19-8M0046566 | CAP, Service Point | 1 | ||||||
| 11 | 22-687271 | FITTING, (.250-18) 90 Degree - Brass | 1 | ||||||
| 13 | 8M0045266 | INJECTOR ASSEMBLY, Fuel | 8 | ||||||
| 14 | 879150A09 | SEAL KIT | 1 | (Contains 8 Seals) | |||||
| 15 | 8M0045267 | RETAINER KIT | 2 | (Set of 4) | |||||
| 16 | 54-8M0050100 | CLIP, Fuel Injector, Secondary | 8 | ||||||
| 17 | 8M0050294 | CABLE TIE | 8 | ||||||
| 18 | 8M0044724 | HOSE, Balance | 1 | ||||||
| 19 | 8M0044743 | FUEL RAIL, Port | 1 | ||||||
| 20 | 8M0044754 | FUEL RAIL, Starboard | 1 | ||||||
| 21 | 21-8M0044726 | VALVE ASSEMBLY | 1 | ||||||
| 22 | 22-805515 | CAP, Shrader Valve - Brass | 1 | ||||||
| 23 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Intake Manifold | 6 | ||||||
| 24 | 8M0046568 | CLAMP, (20.5 mm) | 2 |
