| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

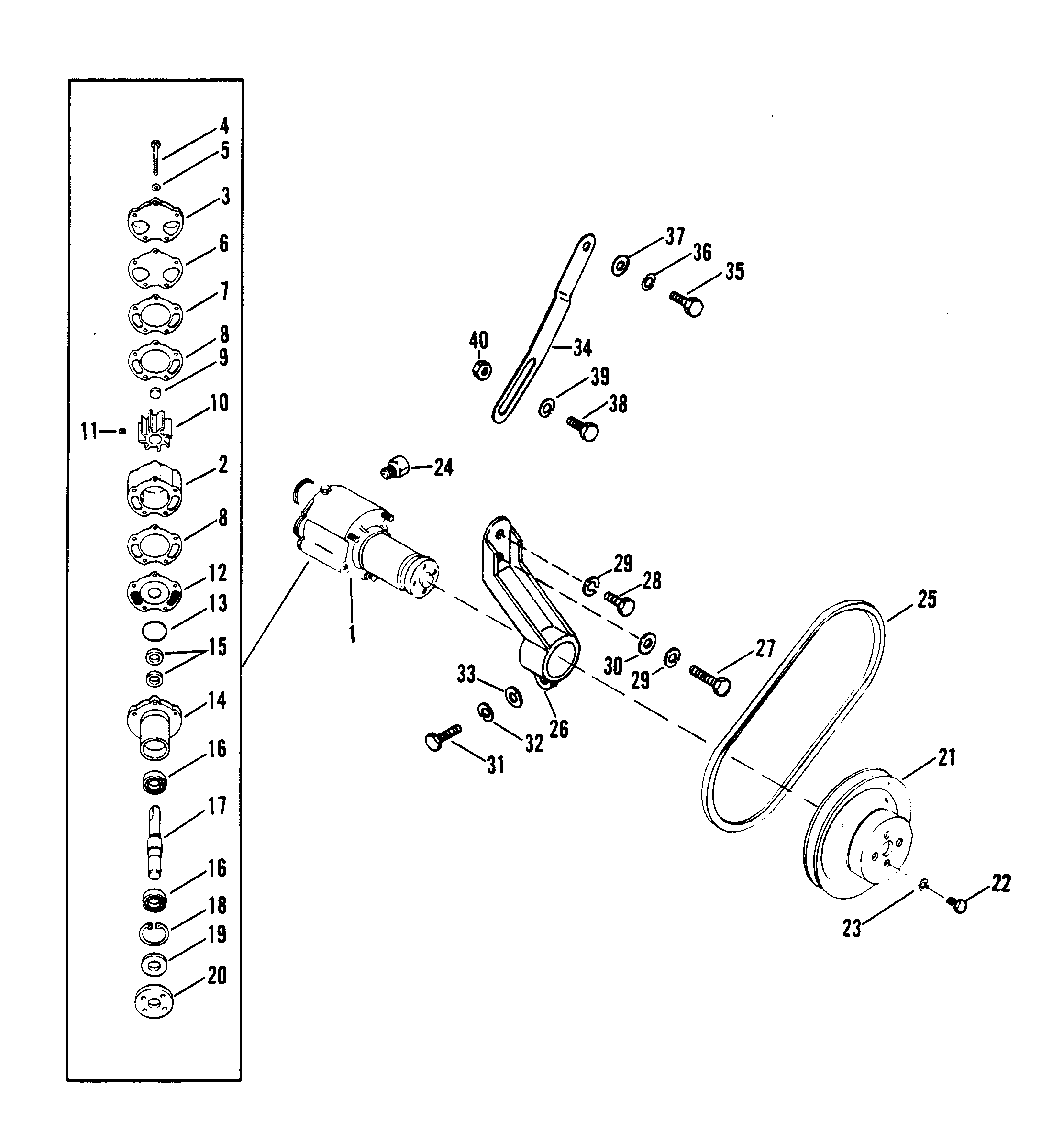

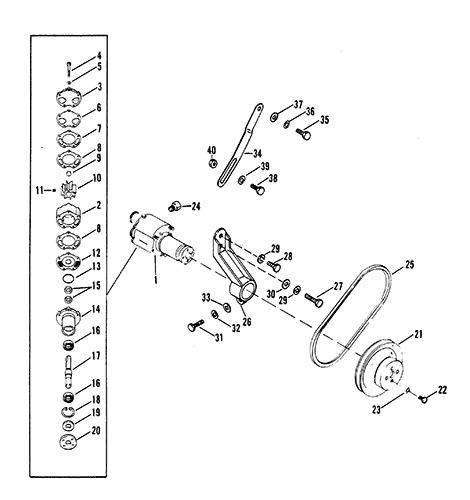

| 1 |
46-72774A32 |
|
|
|
|
WATER PUMP ASSEMBLY |
1 |
|
|
| 2 |
46-72774A40 |
|
|
|
|
BODY, WATER PUMP |
1 |
|
This Part is No Longer Available |
| 3 |
87631A4 |
|
|
|
|
COVER, WATER PUMP |
1 |
87631A1 |
|
| 4 |
10-73275 |
|
|
|
|
SCREW, WATER PUMP (2-7/8") |
5 |
|
|
| 5 |
12-20084 |
|
|
|
|
WASHER, COVER SCREW |
5 |
|
|
| 6 |
27-8052151 |
|
|
|
|
GASKET, COVER TO OUTER WEAR PLATE |
1 |
27-94915 |
2 |
| 7 |
94916 |
|
|
|
|
WEAR PLATE, OUTER |
1 |
|
|
| 8 |
27-94914 |
|
|
|
|
GASKET, BODY TO WEAR PLATE |
2 |
|
2 |
| 9 |
19-59504 |
|
|
|
|
PLUG, IMPELLER |
1 |
|
|
| 10 |
47-59362T1 |
625-4011 |
676-9-45375 |
700-89740 |
|
IMPELLER |
1 |
47-59362 |
|
| 11 |
8M0032837 |
|
|
|
|
KEY, IMPELLER DRIVE |
1 |
28-56662 |
|
| 12 |
94576 |
|
|
|
|
WEAR PLATE, INNER |
1 |
|
|
| 13 |
25-94288 |
|
|
|
|
QUAD RING, PUMP HOUSING |
1 |
|
|
| 14 |
46-94913A1 |
|
|
|
|
PUMP HOUSING ASSEMBLY |
1 |
|
|
| 15 |
26-90562 |
|
676-9-76107 |
700-85080 |
|
OIL SEAL, WATER PUMP SHAFT |
2 |
|
2 |
| 16 |
30-72961 |
|
|
|
|
BALL BEARING, WATER PUMP SHAFT |
2 |
|
|
| 17 |
59501A1 |
|
|
|
|
SHAFT, WATER PUMP |
1 |
|
|
| 18 |
53-23720 |
|
|
|
|
SNAP RING, BALL BEARING RETAINING |
1 |
|
|
| 19 |
26-72785 |
|
|
|
|
OIL SEAL, WATER PUMP SHAFT |
1 |
|
|
| 20 |
47530 |
|
|
|
|
HUB, WATER PUMP PULLEY |
1 |
|
|
| 21 |
59762T |
|
|
|
|
PULLEY, WATER PUMP |
1 |
|
This Part is No Longer Available |
| 22 |
10-47277 |
|
|
|
|
SCREW, PULLEY (3/4") |
4 |
|
|
| 23 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, PULLEY SCREW |
4 |
|
|
| 24 |
22-328022 |
|
|
|
|
PLUG, PIPE (FOR WATER PUMP BODY) |
1 |
22-32802 |
|
| 25 |
57-94290Q |
|
|
|
|
BELT, WATER PUMP |
1 |
57-94290 |
|
| 26 |
47489A2 |
|
|
|
|
BRACKET ASSEMBLY, WATER PUMP |
1 |
|
This Part is No Longer Available |
| 27 |
10-47462 |
|
|
|
|
SCREW, WATER PUMP BRACKET (1") |
1 |
|
|
| 28 |
10-48948 |
|
|
|
|
SCREW, WATER PUMP BRACKET (7/8") |
1 |
|
This Part is No Longer Available |
| 29 |
13-32993 |
|
|
|
|
LOCKWASHER, BRACKET SCREW |
2 |
|
|
| 30 |
12-27025 |
|
|
|
|
WASHER, BRACKET SCREW |
1 |
|
|
| 31 |
10-34354 |
|
|
|
|
SCREW, WATER PUMP BRACKET (1-1/2") |
1 |
|
|
| 32 |
13-35048 |
|
|
|
|
LOCKWASHER, BRACKET SCREW |
1 |
|
|
| 33 |
12-29330 |
|
|
|
|
WASHER, WATER PUMP SCREW (FOR SLOT) |
1 |
|
|
| 34 |
64177 |
|
|
|
|
BRACE, WATER PUMP |
1 |
|
This Part is No Longer Available |
| 35 |
10-47462 |
|
|
|
|
SCREW, BRACE TO ENGINE (1") |
1 |
|
|
| 36 |
13-32993 |
|
|
|
|
LOCKWASHER, BRACE SCREW |
1 |
|
|
| 37 |
12-74758 |
|
|
|
|
WASHER, BRACE SCREW |
1 |
12-30315 |
|
| 38 |
10-35786 |
|
|
|
|
SCREW, WATER PUMP BRACE (1") |
1 |
|
|
| 39 |
13-35048 |
|
|
|
|
LOCKWASHER, BRACE SCREW |
1 |
|
|
| 40 |
11-46335 |
|
|
|
|
NUT, BRACE SCREW |
1 |
11-24883 |
|
