| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

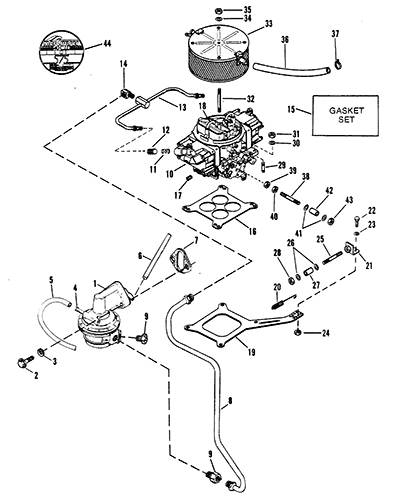

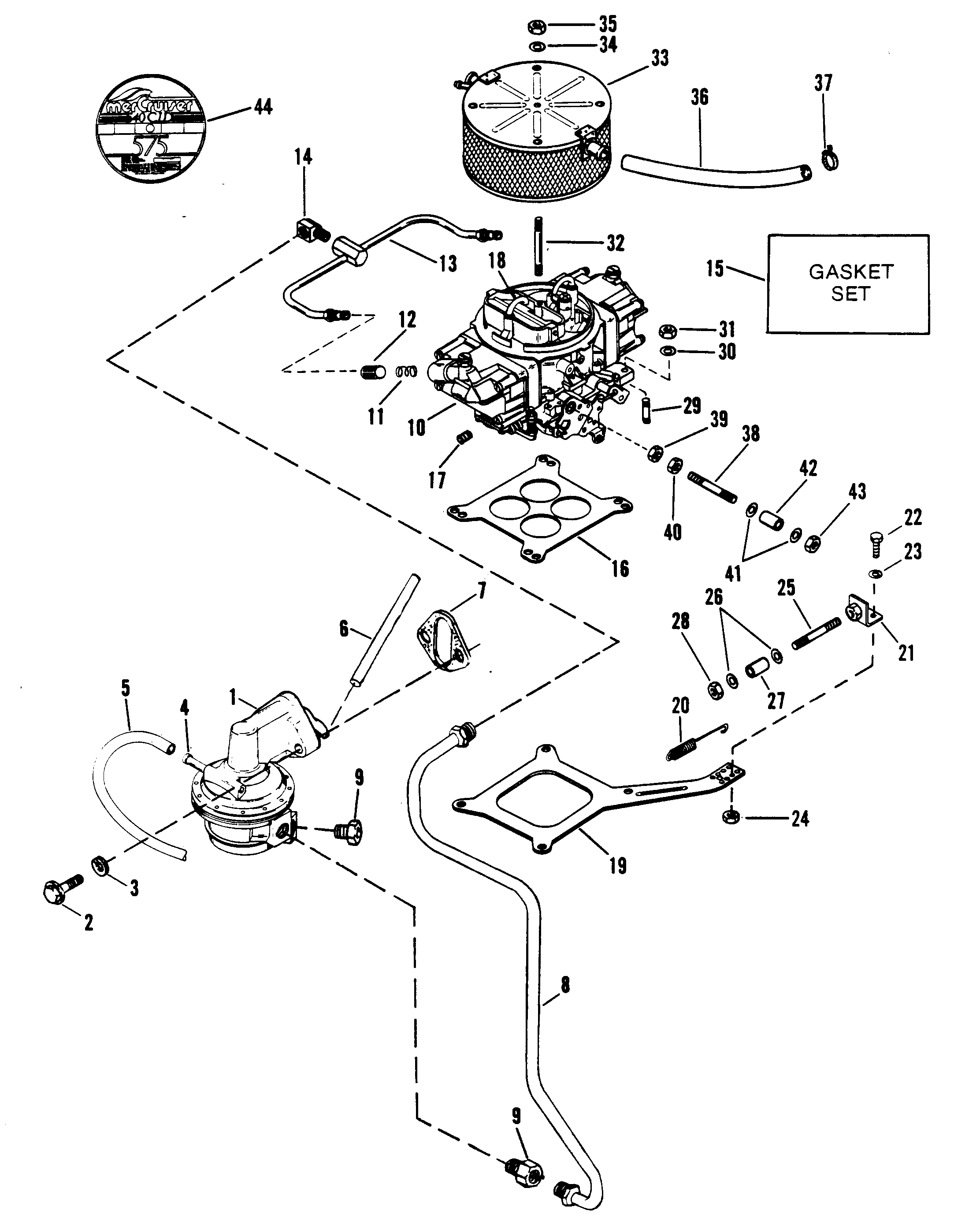

| 1 |
92864 |
|
|
|
|
FUEL PUMP |
1 |
|
|
| 2 |
10-37612 |
|
|
|
|
SCREW, FUEL PUMP (1-1/4") |
2 |
|
|
| 3 |
13-35048 |
|
|
|
|
LOCKWASHER, FUEL PUMP SCREW |
2 |
|
|
| 4 |
22-85822 |
|
|
|
|
CONNECTOR, FUEL PUMP |
1 |
|
|
| 5 |
32-9337070 |
|
|
|
|
SIGHT TUBE |
1 |
|
This Part is No Longer Available |
| 6 |
35377 |
|
|
|
|
ROD, FUEL PUMP |
1 |
|
|
| 7 |
27-34213 |
|
|
|
|
GASKET, FUEL PUMP |
1 |
|
2 |
| 8 |
32-93557 |
|
|
|
|
FUEL LINE, FUEL PUMP TO CARBURETOR |
1 |
|
This Part is No Longer Available |
| 9 |
22-33821 |
|
|
|
|
FITTING, FUEL LINE TO FUEL PUMP |
2 |
|
|
| 10 |
12377A2 |
|
|
|
|
CARBURETOR |
1 |
|
This Part is No Longer Available |
| 11 |
24-48143 |
|
|
|
|
SPRING, FILTER |
2 |
|
|
| 12 |
35-93568 |
|
|
|
|
FILTER |
2 |
|
|
| 13 |
32-12837A1 |
|
|
|
|
TUBE, FUEL INLET |
1 |
32-12837 |
This Part is No Longer Available |
| 14 |
22-93385 |
|
|
|
|
ELBOW, FUEL INLET TUBE |
1 |
|
|
| 15 |
27-42270A1 |
|
|
|
|
GASKET SET |
1 |
|
2 |
| 16 |
27-42270A1 |
|
|
|
|
GASKET, FLANGE |
1 |
27-12732 |
2 |
| 17 |
1399-650892 |
|
|
|
|
JET |
4 |
|
|
| 18 |
32-42265 |
|
|
|
|
TUBE, VENT |
2 |
|
|
| 19 |
128493 |
|
|
|
|
BRACKET, THROTTLE |
1 |
128492 |
This Part is No Longer Available |
| 20 |
24-897454 |
|
|
|
|
SPRING, THROTTLE RETURN |
1 |
24-32817 |
|
| 21 |
15017 |
|
|
|
|
THROTTLE BRACKET |
1 |
|
|
| 22 |
10-78291 |
|
|
|
|
SCREW, THROTTLE BRACKET |
2 |
|
|
| 23 |
13-26996 |
|
|
|
|
LOCKWASHER, THROTTLE BRACKET SCREW |
2 |
|
|
| 24 |
11-79989 |
|
|
|
|
NUT, THROTTLE BRACKET SCREW |
2 |
|
|
| 25 |
16-98851 |
|
|
|
|
STUD, CABLE |
1 |
|
No longer made, limited availability |
| 26 |
12-69056 |
|
|
|
|
WASHER, CABLE STUD |
2 |
12-21631 |
|
| 27 |
23-31866 |
|
|
|
|
SPACER, CABLE STUD |
1 |
|
|
| 28 |
11-826709109 |
|
|
|
|
NUT, CABLE STUD |
1 |
11-20586 |
|
| 29 |
16-96108 |
|
|
|
|
STUD, CARBURETOR |
4 |
|
This Part is No Longer Available |
| 30 |
12-20084 |
|
|
|
|
WASHER, CARBURETOR STUD |
2 |
|
|
| 30 |
12-848136 |
|
|
|
|
WASHER, CARBURETOR STUD |
2 |
12-39167 |
|
| 31 |
11-82670911 |
|
|
|
|
NUT, CARBURETOR STUD |
4 |
11-35814 |
|
| 32 |
16-30668 |
|
|
|
|
STUD, FLAME ARRESTOR |
1 |
|
|
| 33 |
123752 |
|
|
|
|
FLAME ARRESTOR |
1 |
123751 |
This Part is No Longer Available |
| 34 |
12-22753 |
|
|
|
|
WASHER, FLAME ARRESTOR STUD |
1 |
|
|
| 35 |
11-82670911 |
|
|
|
|
NUT, FLAME ARRESTOR STUD |
1 |
11-35814 |
|
| 36 |
32-8M0062669 |
|
|
|
|
HOSE, VENT (11") |
2 |
32-9331512 |
|
| 37 |
69355 |
|
|
|
|
STA-STRAP, VENT HOSE |
4 |
|
|
| 38 |
16-728091 |
|
|
|
|
STUD, THROTTLE CABLE TO CARBURETOR |
1 |
16-72809 |
|
| 39 |
11-826709109 |
|
|
|
|
NUT, THROTTLE CABLE STUD (1/4-28) |
1 |
11-20586 |
|
| 40 |
11-21825 |
|
|
|
|
NUT, THROTTLE CABLE STUD (1/4-28) |
1 |
|
|
| 41 |
12-29245 |
|
|
|
|
WASHER, THROTTLE CABLE STUD |
2 |
|
|
| 42 |
23-53811 |
|
|
|
|
SPACER, THROTTLE CABLE STUD |
1 |
|
|
| 43 |
11-8267098 |
|
|
|
|
NUT, THROTTLE CABLE STUD (1/4-20) |
1 |
11-56374 |
|
| 44 |
37-1372349 |
|
|
|
|
DECAL, CARBURETOR COVER |
1 |
|
This Part is No Longer Available |
