575 GM 540 V-8 1986-1992 - Serial 0A677429 Thru 0D763716 - Drive Shaft And Tailstock (Drive Line)

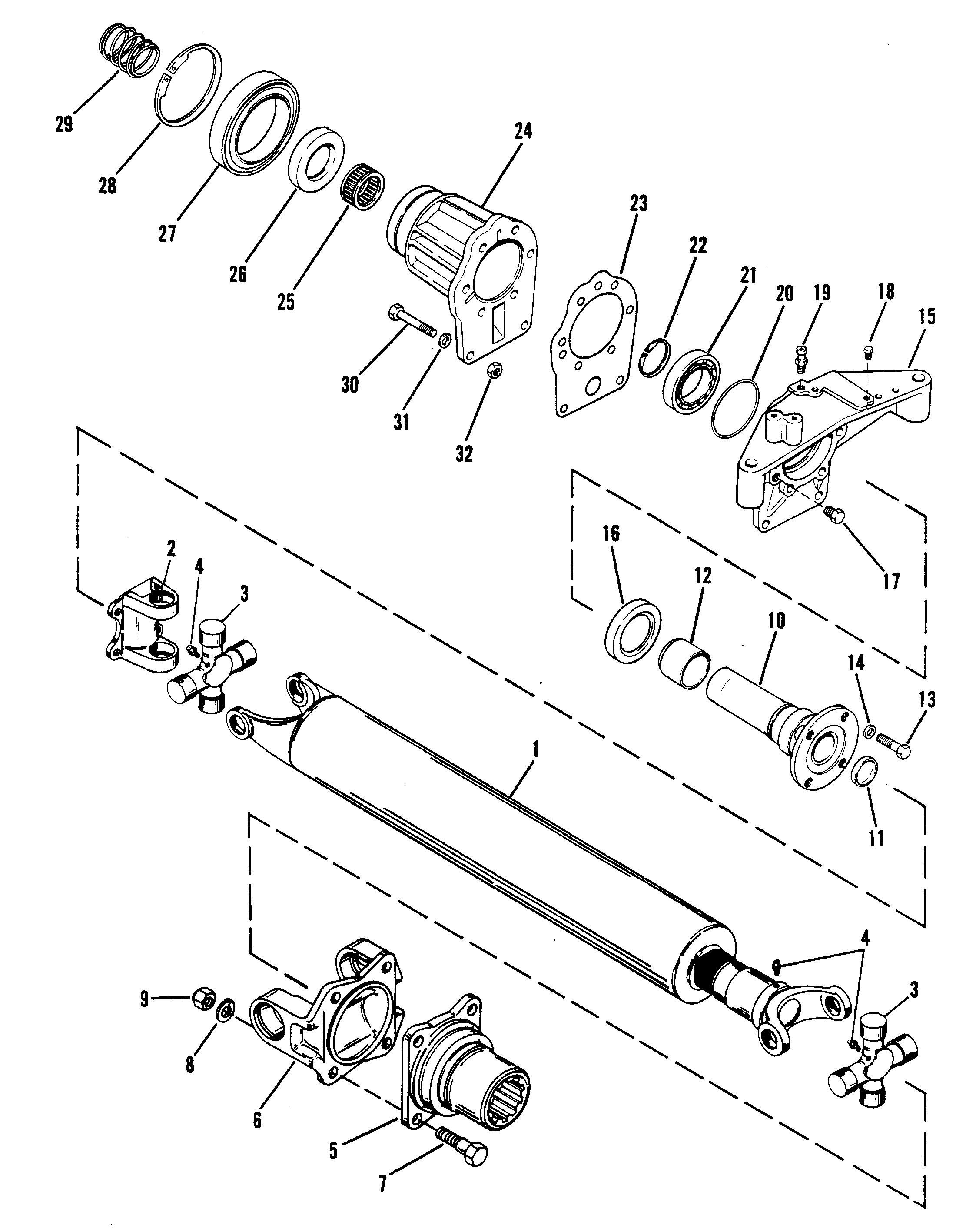

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 45-86978A3         DRIVE SHAFT ASSEMBLY (37") 1 45-86978A1
1 45-53967A1         DRIVE SHAFT ASSEMBLY (43") 1   This Part is No Longer Available
2 61218         FLANGE, DRIVE SHAFT 1
3 61221T         CROSS AND BEARING 2 61221
4 22-74036         GREASE FITTING 2
5 96276T4         YOKE ASSEMBLY 1 96276A2
6 61218         FLANGE, YOKE 1
7 10-68743         SCREW 4   This Part is No Longer Available
8 13-47659         LOCKWASHER 4
9 11-34933   676-9-72004     NUT 4
10 52505A1         DRIVE SHAFT EXTENSION 1   This Part is No Longer Available
11 19-47463         PLUG 1
12 23-47471T         BEARING 1 23-47471
13 10-60106         SCREW 4   This Part is No Longer Available
14 12-45176         WASHER 4
15 55434A2         DRIVE SHAFT EXTENSION HOUSING 1   This Part is No Longer Available
16 26-52499         OIL SEAL 1
17 22-36382     700-21887   PIPE PLUG (1/4") 1
18 22-328022         PIPE PLUG (1/8") 1 22-32802
19 22-47902         FITTING 1
20 15-49264A1         SHIM SET 1   This Part is No Longer Available
21 30-47470         BALL BEARING 1
22 53-52502         SNAP RING 1
23 27-52501         GASKET, BEARING SUPPORT HOUSING 1
24 52506A1         BEARING SUPPORT HOUSING 1   This Part is No Longer Available
25 31-47468T         NEEDLE BEARING 1 31-47468 This Part is No Longer Available
26 26-47465         OIL SEAL 1
27 53-52507         RING, SUPPORT 1   This Part is No Longer Available
28 53-52503         SNAP RING 1   This Part is No Longer Available
29 24-47755         SPRING 1
30 10-32695         SCREW 4
30 10-56393         SCREW 2
30 10-32515         SCREW 2
31 12-22248         WASHER 8
32 11-35053         NUT 8
