454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Thermostat Housing (Old Design)

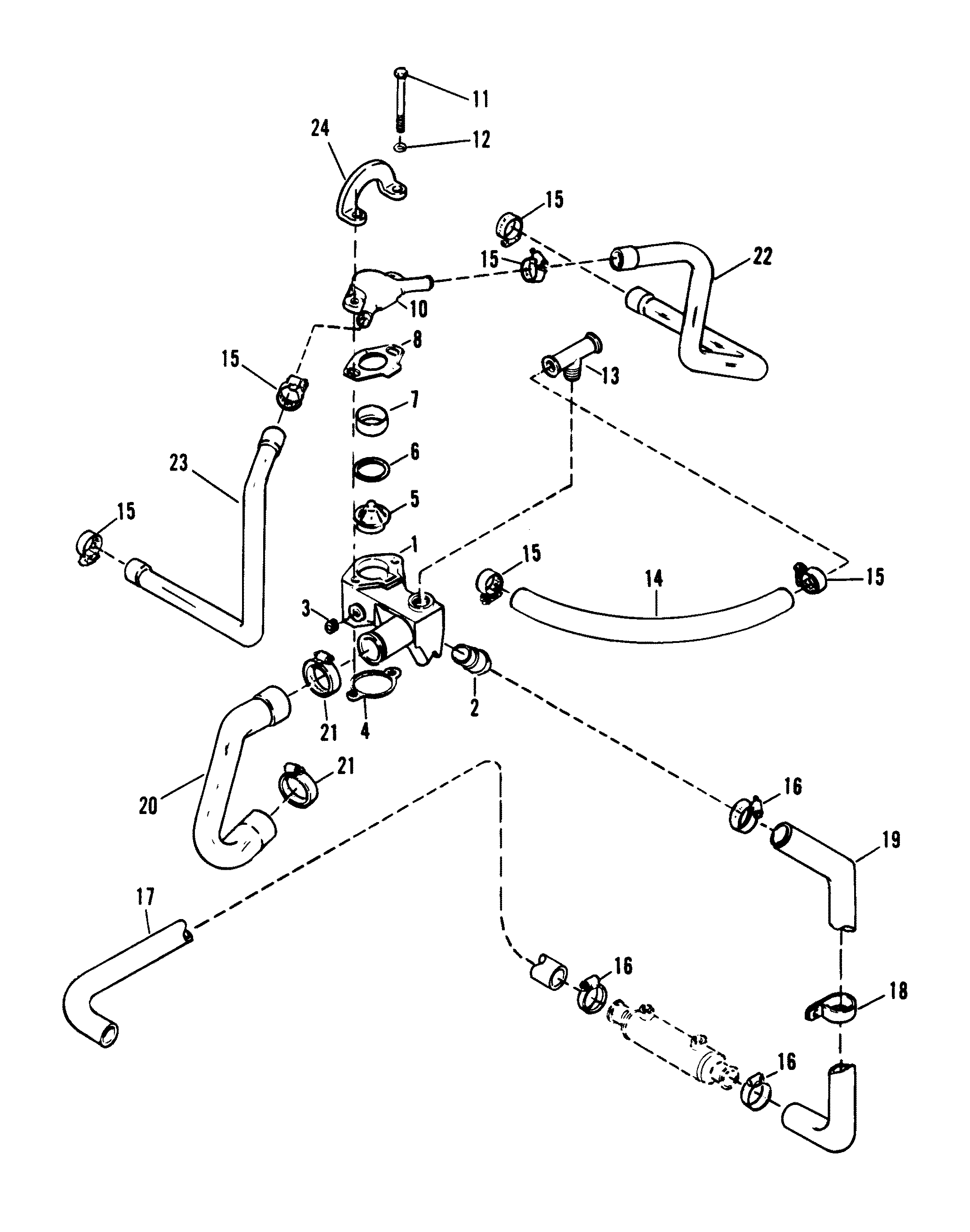

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 90736A18



THERMOSTAT HOUSING ASSEMBLY 1 90736A4
2 23-47511



SLEEVE, THERMOSTAT HOUSING 1

3 22-32803

700-21894
PIPE PLUG 2

4 27-530451



GASKET, THERMOSTAT HOUSING 1
2
5 807252T1



THERMOSTAT (143 ) 1 59137
6 27-47510
676-9-60005 700-31460
GASKET, THERMOSTAT 1
2
7 23-47508T



SLEEVE, THERMOSTAT 1 23-47508
8 27-41812
676-9-60006
700-31630

GASKET, THERMOSTAT COVER 2
2
10 8M0061068



COVER, THERMOSTAT 1 47442A1
11 10-60410



SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD 2

12 13-35048



LOCKWASHER, THERMOSTAT HOUSING SCREW 2

13 22-98477A2



TEE, THERMOSTAT HOUSING 1

14 32-8M0062614



HOSE, TEE TO EXHAUST ELBOW (19') 2 32-3322070
15 54-815504220



CLAMP, HOSE ATTACHING 8 54-32780
16 54-815504220



CLAMP, HOSE ATTACHING 6 54-32780
17 32-96246A4



HOSE, OIL COOLER TO DRIVE UNIT 1

18 54-47715



CLIP, HOSE ATTACHING 2

19 32-896998



HOSE, OIL COOLER TO THERMOSTAT HOUSING 1 32-64346
20 32-897181



HOSE, THERMOSTAT HOUSING TO WATER PUMP 1 32-89718
21 54-815504232



CLAMP, HOSE ATTACHING 2 54-87268
22 32-897491



HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT) 1 32-89749
23 32-897301



HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STBD.) 1 32-89730
24 12552



LIFTING EYE 1
