454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Carburetor

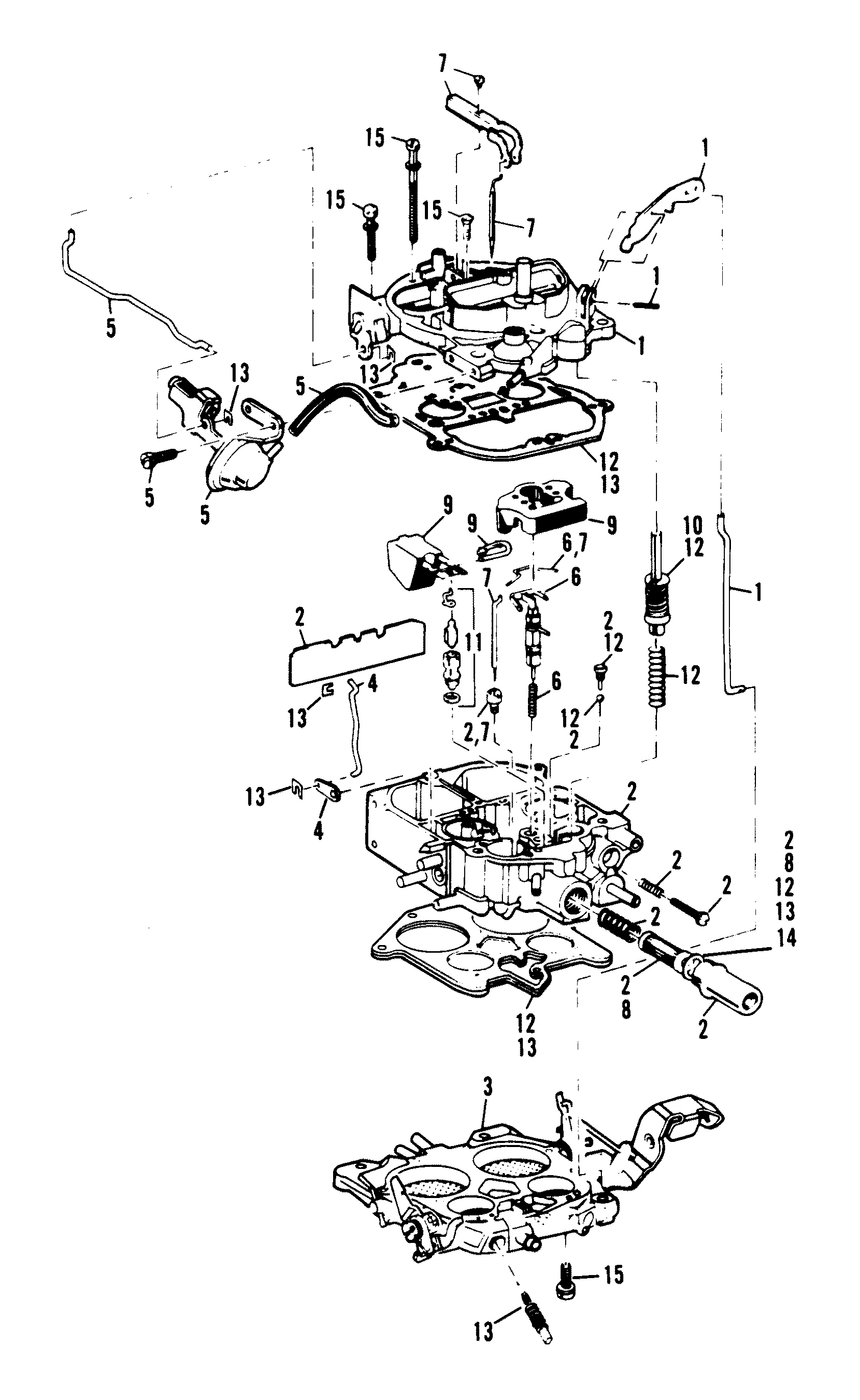

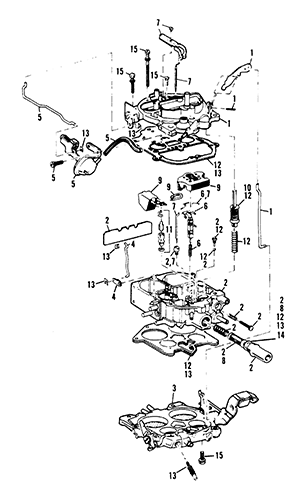

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1347-804626R1         CARBURETOR ASSEMBLY 1 1347-8291A3
1 1397-8752         AIR HORN KIT 1   This Part is No Longer Available
2 1397-8823         FLOAT BOWL KIT 1   This Part is No Longer Available
3 1397-8540         THROTTLE BODY KIT 1   This Part is No Longer Available
4 1397-8541         CHOKE LINK AND LEVER KIT 1   This Part is No Longer Available
5 1397-8582         PRIMARY VACUUM KIT 1   This Part is No Longer Available No longer made, limited availability
6 1397-8543T         POWER PISTON KIT 1 1397-8543
7 1397-8824         METERING JET AND ROD KIT 1   This Part is No Longer Available
8 1397-8767Q         FUEL FILTER KIT 1 1397-8767
9 1397-8546T         FLOAT KIT 1 1397-8546
10 1397-9669         PUMP KIT 1

11 1397-8548         NEEDLE AND SEAT KIT 1

12 823426A1         CARBURETOR REPAIR KIT 1 1397-8535 (Do not use flange gasket included in kits. Order 27-52457-2).
13 823426A1         GASKET KIT 1 1397-9723 (Do not use flange gasket included in kits. Order 27-52457-2).
14 1397-8327         GASKET, INLET FUEL NUT 1

15 1397-8557         SCREW KIT 1   This Part is No Longer Available
