454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Distributor And Ignition Components

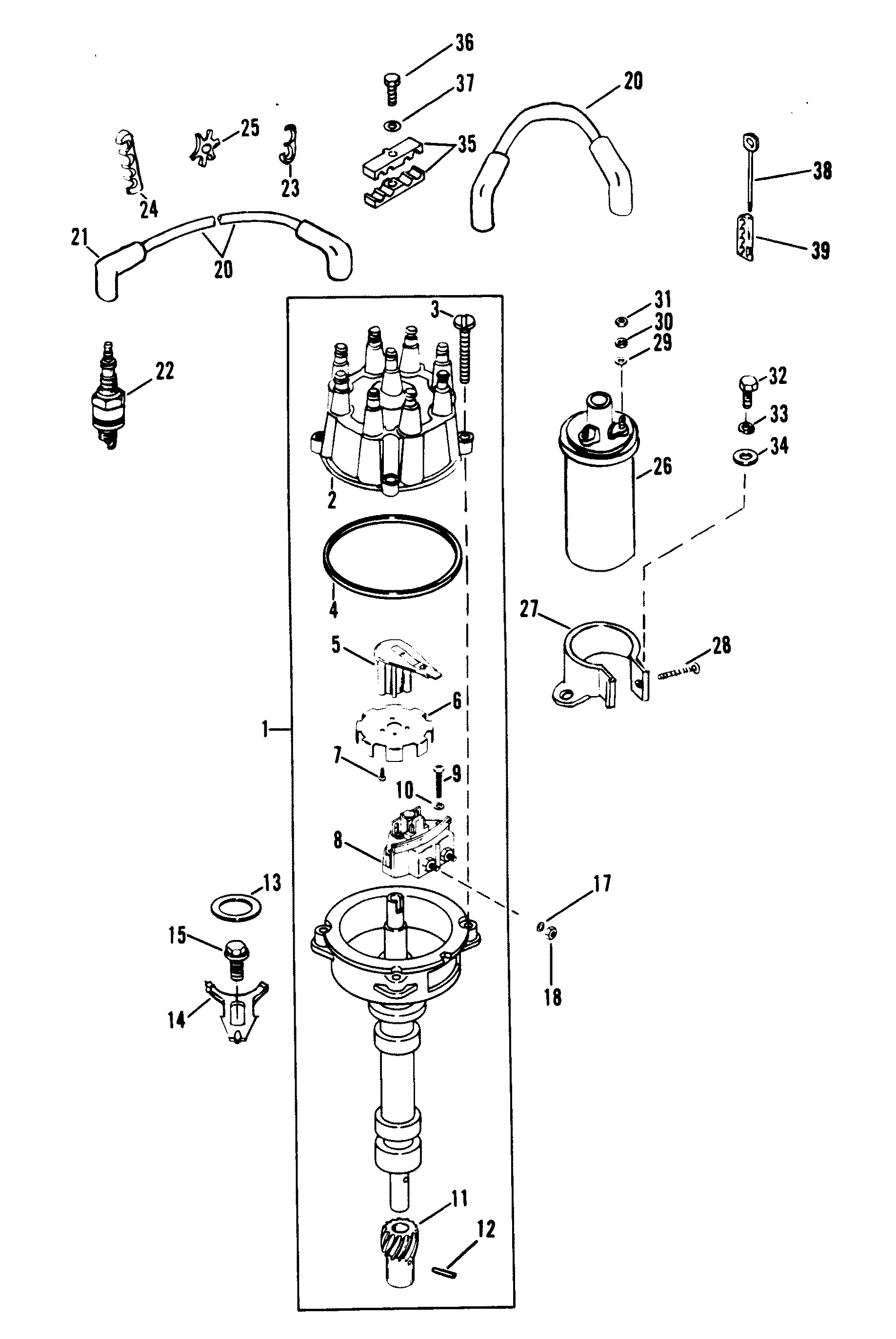

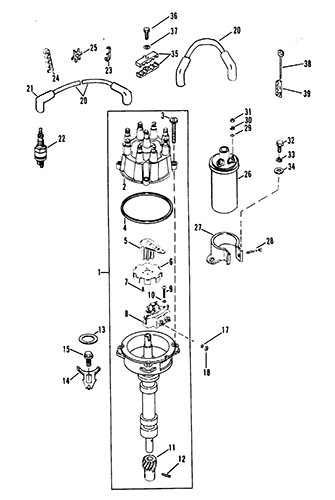

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805185A36     700-71250   DISTRIBUTOR ASSEMBLY 1 90747A3
2 805759T1   676-9-29403     CAP, DISTRIBUTOR 1 16457A4
3 10-90926     700-22305   SCREW, DISTRIBUTOR CAP 4

4 27-805760   676-9-61050 700-32060   GASKET, DISTRIBUTOR CAP 1 27-98242
5 13524T1     700-72880   ROTOR 1 13524A3
6 13524A5   676-9-29200     SENSOR WHEEL 1 42862
7 10-11252         SCREW, SENSOR WHEEL 3

8 87-892150Q02         SENSOR ASSEMBLY 1 87-91019A3
9 10-47618         SCREW, SENSOR 1   This Part is No Longer Available
10 12-89302         WASHER, SENSOR SCREW 2 12-27736
11 43-818807     700-19360   GEAR, DRIVE 1 43-8137761
12 17-47617     700-22195   PIN, DRIVE GEAR 1

13 27-344863         GASKET, DISTRIBUTOR 1
2
14 52185         CLAMP, DISTRIBUTOR TO INTAKE MANIFOLD 1

15 10-11976         SCREW, DISTRIBUTOR CLAMP (7/8") 1 10-35169
17 13-26996         LOCKWASHER, DISTRIBUTOR TEMRINAL 2

18 11-68219         NUT, DISTRIBUTOR TERMINAL (10-32) 2

20 84-816608Q61         SPARK PLUG WIRE KIT 1 84-813720A2
21 85-63709A1         BOOT ASSEMBLY, SPARK PLUG 8

22 33-898264001         SPARK PLUG 8 33-59571
23 54676         RETAINER, HIGH TENSION LEADS (2 WIRE) 2

24 32783         RETAINER, HIGH TENSION LEADS (3 WIRE) 2

25 32784         RETAINER, HIGH TENSION LEADS (4 WIRE) 2

26 300-8M0079202         COIL, IGNITION 1 392-7803A4
27 77294T         BRACKET, IGNITION COIL 1 77294 This Part is No Longer Available
28 10-41408         SCREW, BRACKET (1-1/2") 1

29 12-30164         WASHER, IGNITION CIOL TERMINAL 2

30 13-26996         LOCKWASHER, IGNITION COIL TERMINAL 2

31 11-68219         NUT, IGNITION COIL TERMINAL (#10-32) 2

32 10-824941         SCREW, IGNITION COIL (3/4") 2 10-59645
33 13-39107     700-21496   LOCKWASHER, IGNITION COIL SCREW 2

34 12-20084         WASHER, IGNITION COIL SCREW 2

35 63192         RETAINER, HIGH TENSION LEADS 4   This Part is No Longer Available OLD DESIGN
36 10-37612         SCREW, RETAINER (1-1/4") 2
OLD DESIGN
37 12-25909         WASHER, RETAINER SCREW 2
OLD DESIGN
38 16-90096A1         STUD ASSEMBLY 2
NEW DESIGN
39 54-72821         RETAINER, WIRE 2
NEW DESIGN
