454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Oil Pan And Oil Pump

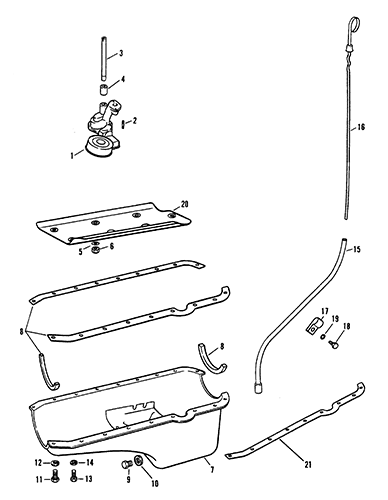

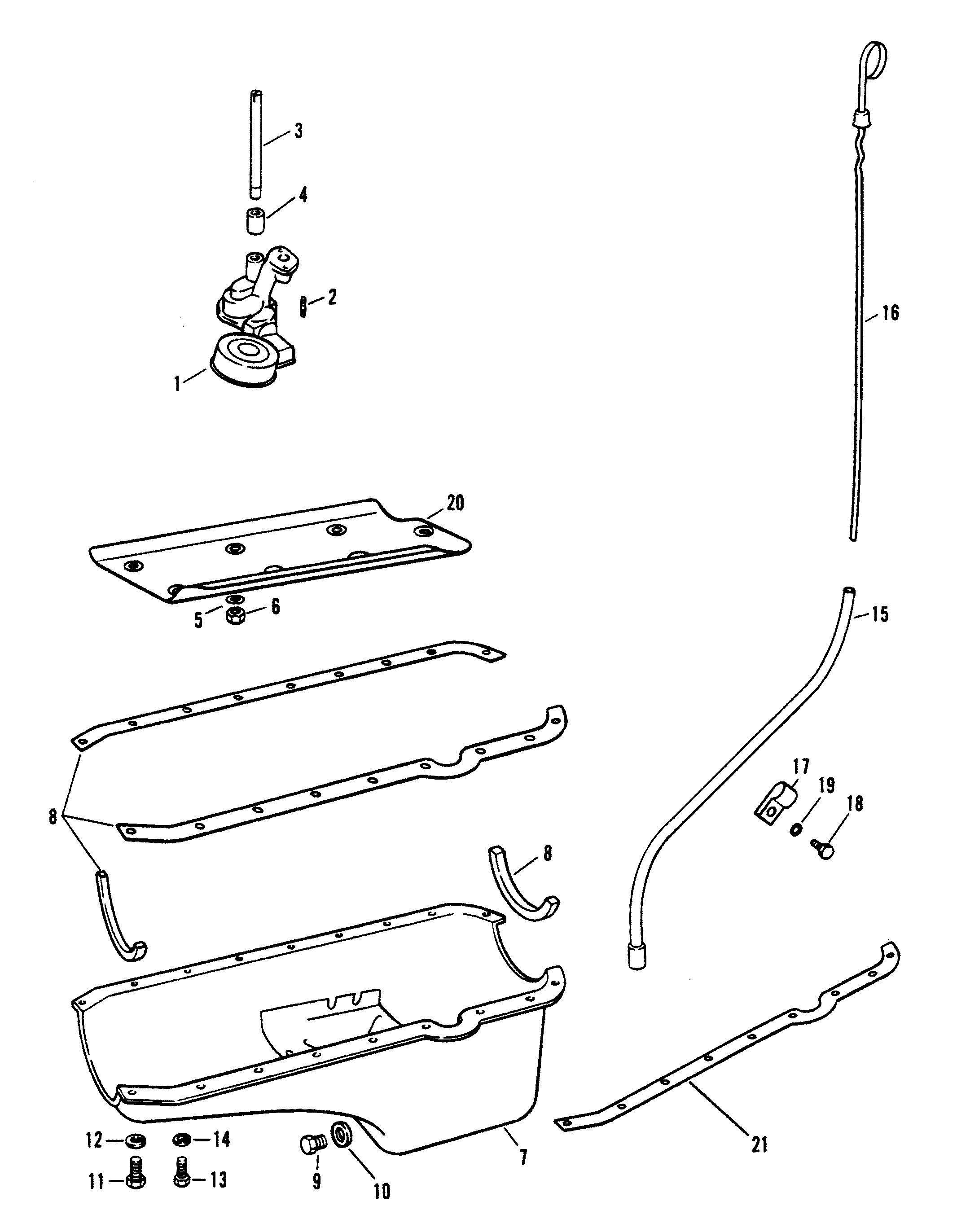

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 827643         OIL PUMP 1 19222
2 16-845599         STUD, OIL PUMP TO CYLINDER BLOCK 1 16-49108
3 14761         SHAFT, OIL PUMP TO DISTRIBUTOR 1

4 23-36183         RETAINER, OIL PUMP SHAFT 1

5 12-49112         WASHER, OIL PAN BAFFLE/OIL PUMP STUD 5   This Part is No Longer Available
6 11-37500         NUT, OIL PAN BAFFLE/OIL PUMP STUD 5

7 93477T         OIL PAN 1 93477 This Part is No Longer Available
8 27-52550         GASKET SET, OIL PAN 1
2
9 10-49956         SCREW, OIL PAN DRAIN 1

10 27-49955   676-9-60104 700-30370   GASKET, DRAIN SCREW 1
2
11 10-34500         SCREW, OIL PAN (5/16-18) 20

12 13-39107     700-21496   LOCKWASHER, OIL PAN SCREW 20

13 10-14070         SCREW, OIL PAN (1/4-20) 2

14 13-26992         LOCKWASHER, OIL PAN SCREW 2

15 32-816200A2         TUBE, OIL LEVEL GAUGE 1 14606T
16 86194218         GAUGE, OIL LEVEL (DIPSTICK) 1 14607
17 54-90309         CLIP, OIL LEVEL TUBE 1   This Part is No Longer Available
18 10-76926         SCREW, CLIP TO BRACKET 1

19 13-35048         LOCKWASHER, CLIP SCREW 1

20 49198         BAFFLE, OIL PAN (CYLINDER BLOCK) 1   This Part is No Longer Available
21 814510         REINFORCEMENTS, OIL PAN (PORT) 1   This Part is No Longer Available
21 814511         REINFORCEMENTS, OIL PAN (STARBOARD) 1   This Part is No Longer Available
- 27-65184A88         ENGINE GASKET SET - Overhaul 1
