| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

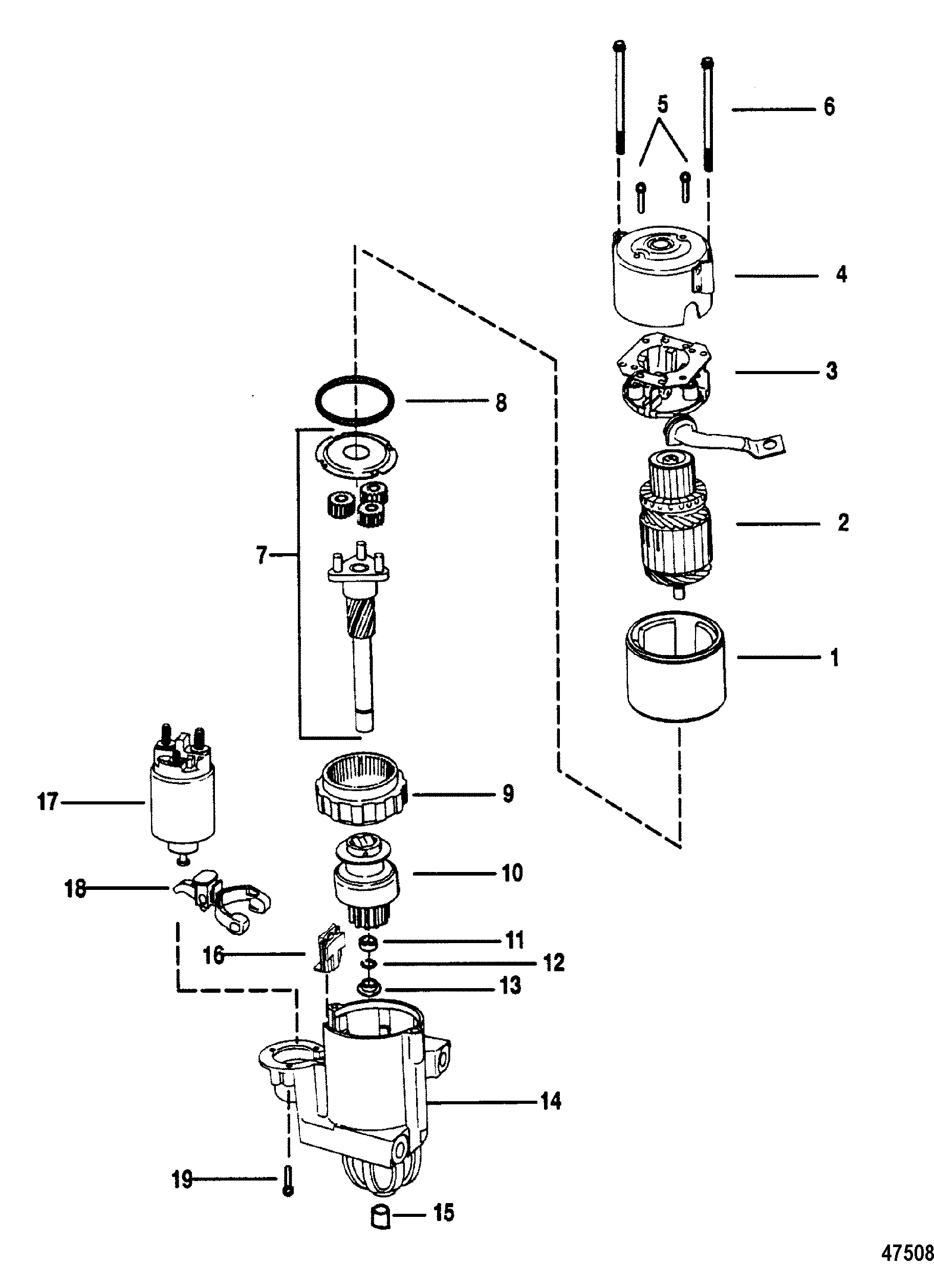

| 1 |
50-863007A1 |
620-5399M |
676-9-15907 |
|
602-10099MD |
STARTER MOTOR ASSEMBLY, 2-7/8 Diameter End Cap |
1 |
50-806964A2 |
|
| 2 |
809454 |
|
|
|
|
ARMATURE |
1 |
|
This Part is No Longer Available |
| 3 |
809453 |
|
|
|
|
HOLDER, Brush And Spring |
1 |
|
This Part is No Longer Available |
| 4 |
809452 |
|
|
|
|
FRAME |
1 |
|
This Part is No Longer Available |
| 5 |
10-809451 |
|
|
|
|
SCREW |
2 |
|
This Part is No Longer Available |
| 6 |
10-809450 |
|
|
|
|
THRU BOLT |
2 |
|
This Part is No Longer Available |
| 7 |
809461 |
|
|
|
|
SHAFT AND GEAR |
1 |
|
This Part is No Longer Available |
| 8 |
27-809460 |
|
|
|
|
GASKET |
1 |
|
This Part is No Longer Available |
| 9 |
43-809455 |
|
|
|
|
GEAR |
1 |
|
This Part is No Longer Available |
| 10 |
809456 |
|
|
|
|
DRIVE |
1 |
|
This Part is No Longer Available |
| 11 |
33291 |
|
|
|
|
COLLAR |
1 |
|
|
| 12 |
53-33290 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 13 |
23-809457 |
|
|
|
|
THRUST COLLA |
1 |
|
This Part is No Longer Available |
| 14 |
809459 |
|
|
|
|
HOUSING |
1 |
|
This Part is No Longer Available |
| 15 |
23-814476 |
|
|
|
|
BUSHING |
1 |
|
This Part is No Longer Available |
| 16 |
25-809465 |
|
|
|
|
GROMMET |
1 |
|
This Part is No Longer Available |
| 17 |
809463A1 |
|
676-9-15125 |
700-72450 |
|
SOLENOID |
1 |
809463 |
|
| 18 |
809464 |
|
|
|
|
LEVER |
1 |
|
This Part is No Longer Available |
| 19 |
10-809466 |
|
|
|
|
SCREW |
3 |
|
This Part is No Longer Available |
