502 Mag Bravo (Gen 5) GM V-8 1992-1993 - Serial 0D824589 Thru 0F114528 - Starter And Alternator

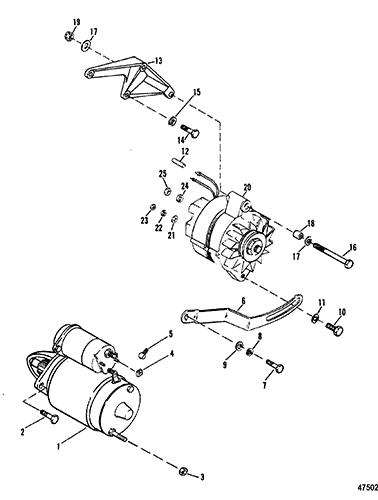

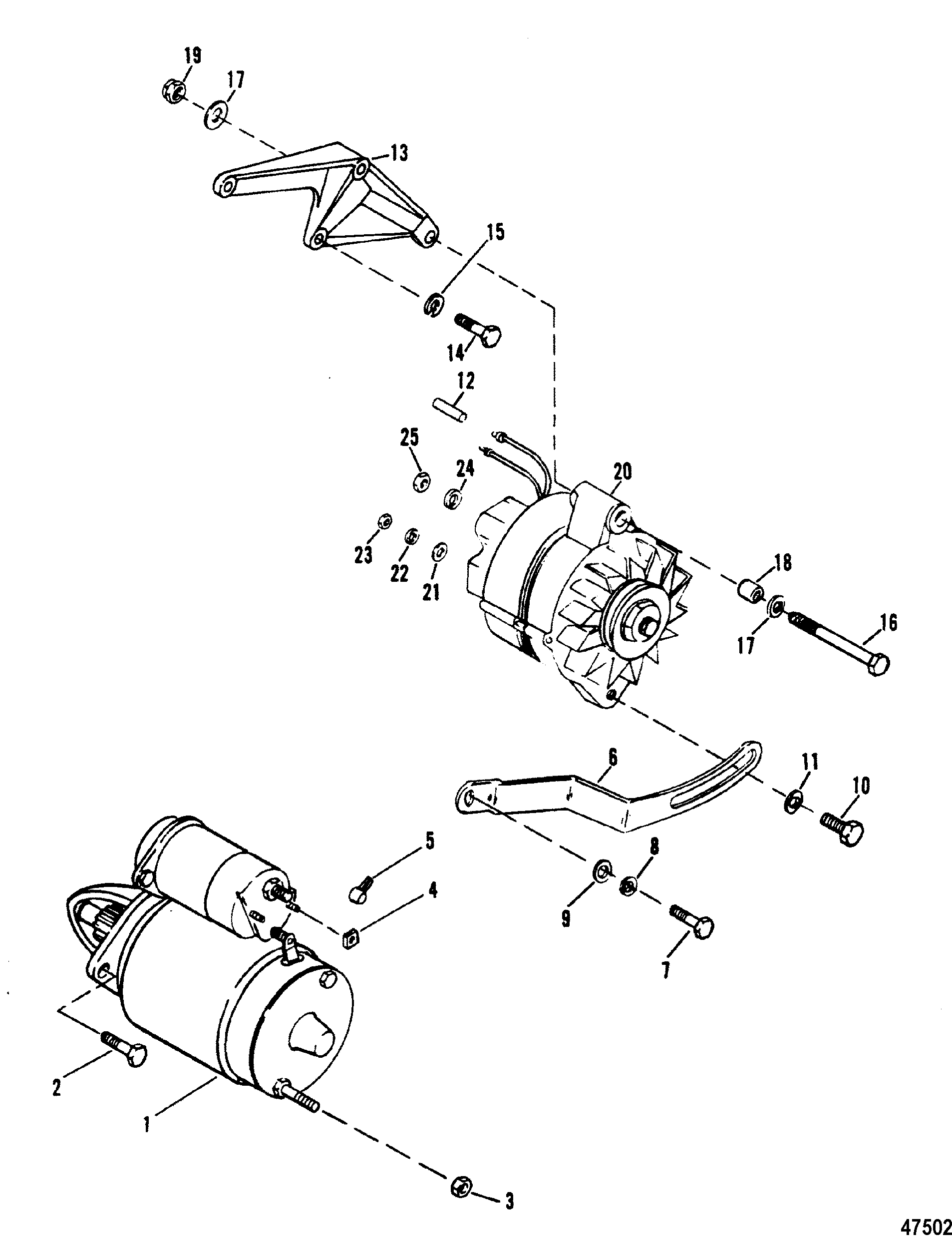

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-863007A1 620-5399M 676-9-15907
602-10099MD STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap 1 50-812604A2
2 10-8053432



SCREW, (.375-16 x 4.33) 2

3 11-15874



NUT, (M10) (10MM) 3-1/4" DIAMETER END CAP 1

4 11-400211



NUT, (M5) Stainless Steel (5MM) 3-1/4" DIAMETER END CAP 2

1 50-863007A1 620-5399M 676-9-15907
602-10099MD STARTER MOTOR ASSEMBLY, 2-7/8 Diameter End Cap 1 50-806964A2
2 10-8053432



SCREW, (.375-16 x 4.33) 2

3 11-806949



NUT, (M8-1.5) (8MM) 2-7/8" DIAMETER END CAP 1

4 11-400211



NUT, (M5) Stainless Steel (5MM) 2-7/8" DIAMETER END CAP 1

5 85-79695T



BOOT, Insulator - Black 1 85-79695
6 85013T



BRACE 1

7 10-47462



SCREW, (.437-14 x 1.250) 1

8 13-32993



LOCKWASHER, (.437) 1

9 12-31263



WASHER 1

10 10-29198



SCREW AND LOCKWASHER, (.312-18 x .875) (7/8") 1

11 12-26168



WASHER 1

12 5790811



SLEEVE, (10.00 Inches Bulk) 2

13 806394A1



BRACKET 1
This Part is No Longer Available
14 10-37612



SCREW, (.375-16 x 1.250) (1-1/4") 3/8-16 THREADS 1

14 10-34354

700-22447
SCREW, (.375-16 x 1.50) (1-1/2") 3/8-16 THREADS 2

15 13-35048

700-21495
LOCKWASHER, (.375) 3

14 10-47462



SCREW, (.437-14 x 1.250) (1-1/4") 7/16-14 THREADS 1

14 10-47651



SCREW, (.437-14 x 1.50) (1-1/2") 7/16-14 THREADS 2

15 12-22248



WASHER, (.453 x .875 x .060) 3

16 10-48308



SCREW, (.375-24 x 3.750) (3-3/4") 1

17 12-20553

700-21675
WASHER, (.406 x .734 x .063) 2

18 23-33186



BUSHING 1

19 11-23161



NUT, (.375-24) 1

20 817119A4 620-3186M 676-9-19101

ALTERNATOR ASSEMBLY, (55 Ampere) 1 92497A3
21 12-96457



WASHER, Phenolic (.27 x .81 x .062) 1

22 13-26996



LOCKWASHER, (#10) Stainless Steel 1

23 11-79989



NUT, (#10-24) Stainless Steel (10-24) PRESTOLITE #8EM2003KA MANDO #AR-150 1

24 13-21272



LOCKWASHER, (.250) 1

25 11-64015



NUT, (.250-20) (1/4-20) PRESTOLITE #8EM2003KA MANDO #AR-150 1
20 817119A4 620-3186M 676-9-19101

ALTERNATOR 1
21 12-96457



WASHER, Phenolic (.27 x .81 x .062) 1
22 13-26996



LOCKWASHER, (#10) Stainless Steel 1
23 11-79989



NUT, (#10-24) Stainless Steel (10-24) MANDO #AC-155603 1
24 12-29245

700-21490
WASHER, (.281 x .500 x .060) Stainless Steel 1
25 11-94330



NUT, (.250-20) Brass (1/4-20) MANDO #AC-155603 1
